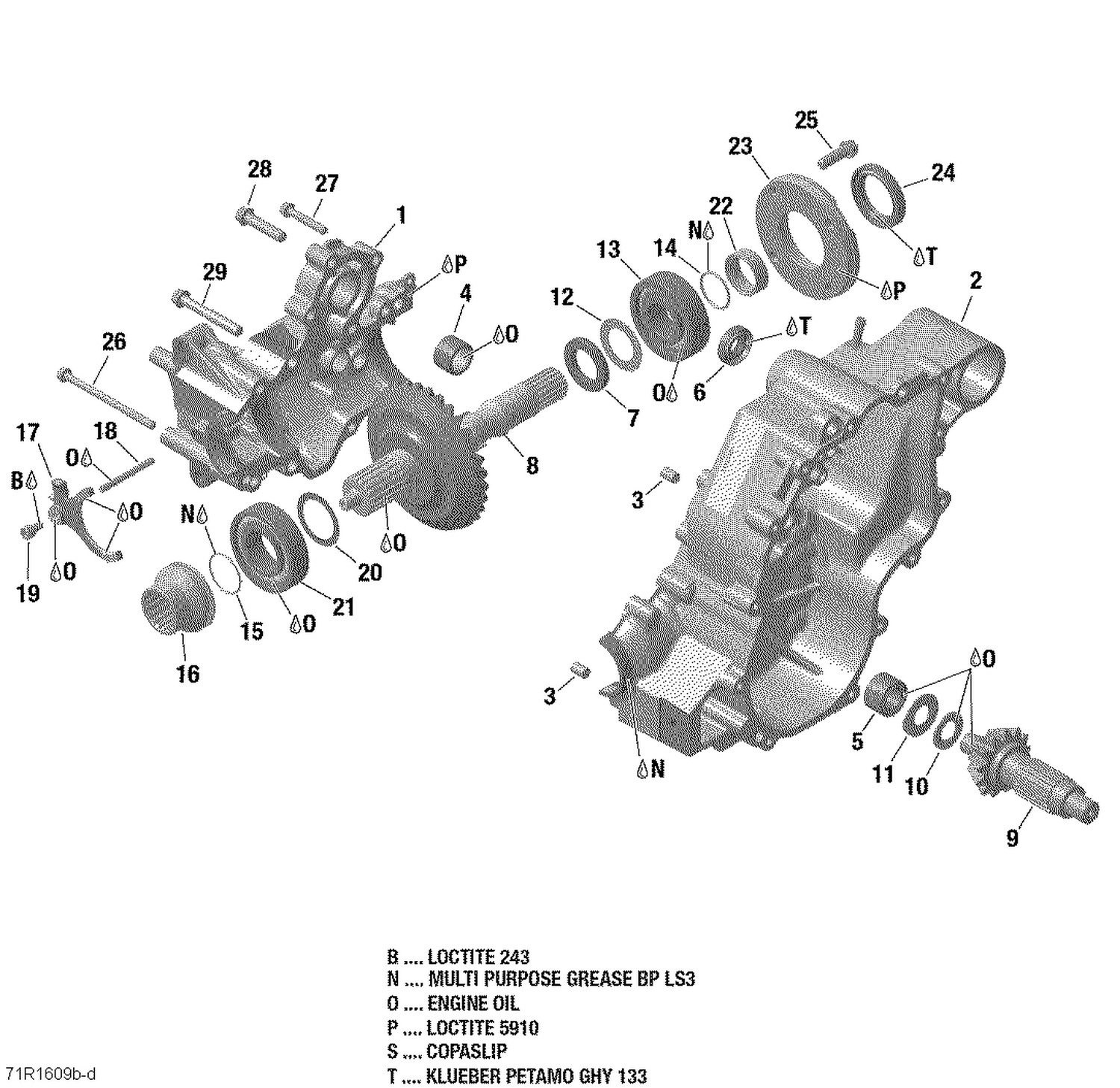

01- Gear Box Output Shaft - 650 EFI-XMR 850 EFI
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | Not | Available As Spare Part - RH Gear Housing |
| 2 | Not | Available As Spare Part - LH Gear Housing |
| 3 | 420632010 | Center Pin 8 X 12 |
| 4 | 420832240 | Needle Bushing |
| 5 | 420232085 | Needle Bushing |
| 6 | 420250450 | Oil Seal |
| 7 | 420247772 | Distance Ring |
| 8 | Not | Available As Spare Part - Drive Shaft Ass'y |
| 9 | Not | Available As Spare Part - Bevel Gear, 13 Teeth |
| 10 | 420632300 | Axial Needle Bearing |
| 11 | 420281306 | Thrust Washer Set, MAG Side |
| 12 | 420281300 | Washer Thrust Set |
| 13 | 420932822 | Ball Bearing This part replaces 420932823. |
| 14 | 420631612 | O-Ring This part replaces 420631610. |
| 15 | 420630040 | O-Ring |
| 16 | 420257674 | Shifting Sleeve This part replaces 420257673. |
| 17 | 420257606 | Shifting Fork |
| 18 | 420241081 | Allen Screw M6 X 10 |
| 19 | 420841771 | SET SCREW M6 X 8 - Call your local BRP dealership |
| 20 | 420944584 | Shim 0.5 |
| 21 | 420932580 | Ball Bearing |
| 22 | 420247125 | Distance Ring This part replaces 420247113. |
| 23 | 420611444 | Bearing Cover This part replaces 420611441. |
| 24 | 420950089 | Oil Seal |
| 25 | 420440372 | Torx Flange Screw M8 X 25 |
| 26 | 420440374 | Torx Flange Screw M8 X 25 |
| 27 | 420440274 | Torx Flange Screw M6 X 35 |
| 28 | 420641188 | Torx Flange Screw M8 X 35 |
