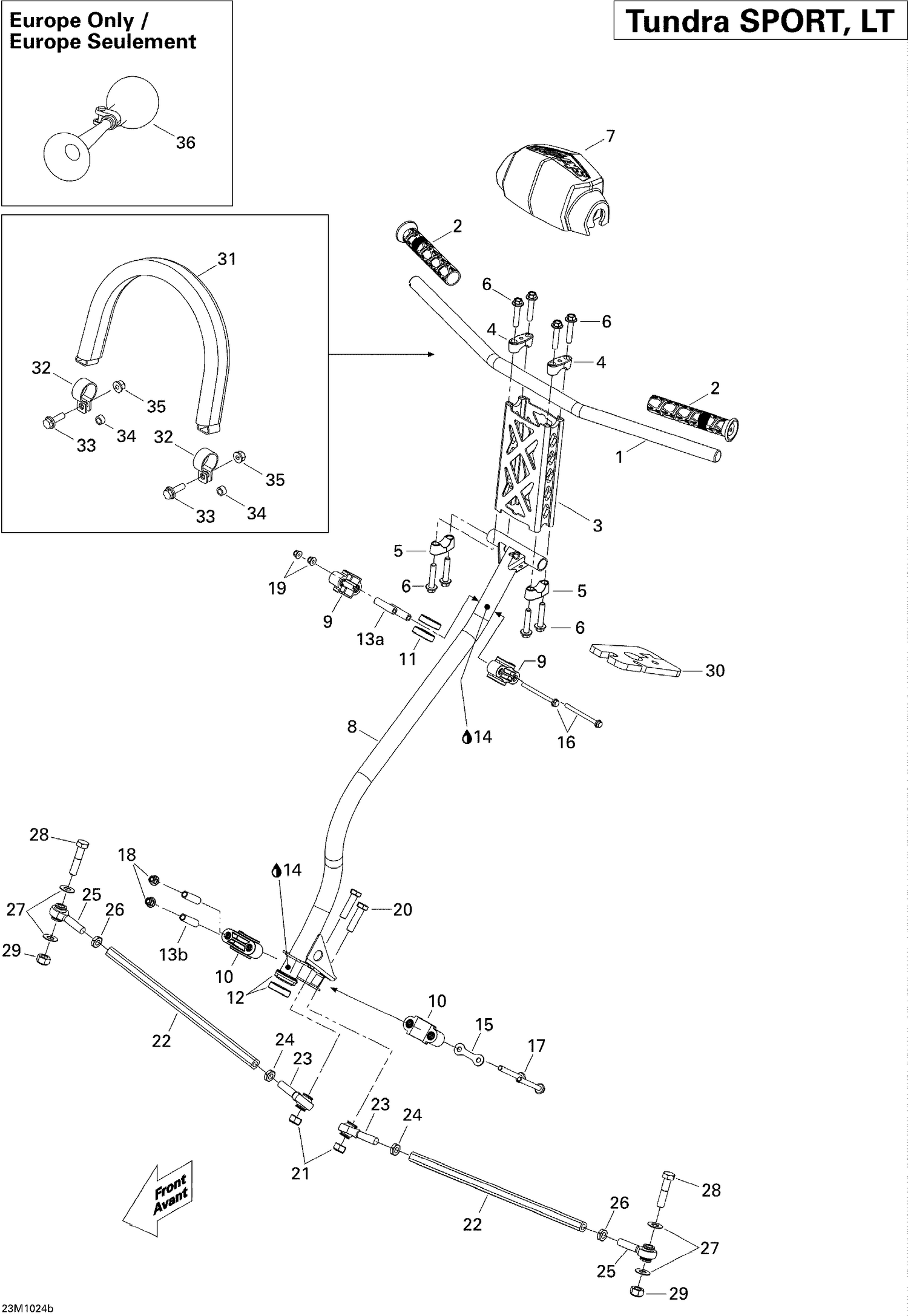

07- Steering 2, SPORT, LT
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506152203 | HANDLE BAR - Call your local BRP dealership |
| 2 | 506152424 | Handle Grip |
| 3 | 860200821 | Extension Kit ( 205mm ) This part replaces 860200269. |
| 4 | 506152751 | Steering Support This part replaces 506152394. |
| 5 | 506152751 | Steering Support This part replaces 506152395. |
| 6 | 250000352 | Hex. Flange Screw M8 X 40 |
| 7 | 506152192 | Steering Pad |
| 8 | 506152963 | Steering Column This part replaces 506152473. |
| 9 | 506152219 | Upper Half Housing |
| 10 | 506152217 | Lower Half-Housing |
| 11 | 506152292 | Upper Vibration Ring |
| 12 | 506152518 | Lower Vibration Ring This part replaces 506152218. |
| 13a | 506152297 | Housing Bushing |
| 13b | 506152388 | Lower Housing Bushing |
| 14 | 293550033 | SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 15 | 506152389 | Stopper Plate |
| 16 | 207667056 | Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 17 | 207686534 | Hex. Flange Screw M8 x 65 |
| 18 | 233281414 | Hex. Flange Elastic Nut M8 |
| 19 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 20 | 207004034 | Hex. Screw M10 X 1.5 X 40 |
| 21 | 232500416 | Elastic Stop Nut M10 |
| 22 | 506152377 | ROD_LINK - Call your local BRP dealership |
| 23 | 506152081 | LH Thread Ball Joint |
| 24 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 25 | 506152019 | RH Threaded Ball Joint |
| 26 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 27 | 506152194 | Washer |
| 28 | 207004544 | Hex. Screw M10 X 45 |
| 29 | 232500416 | Elastic Stop Nut M10 |
| 30 | 506152521 | Bushing This part replaces 506152407. |
| 31 | 506152115 | Strap Ass'y |
| 32 | 506152536 | Black Support Plate This part replaces 506151792. |
| 33 | 207662084 | Hex. Flange Screw M6 X 20 |
| 34 | 506152156 | Bushing |
| 35 | 233261494 | Hex. Flange Elastic Nut M6 |
