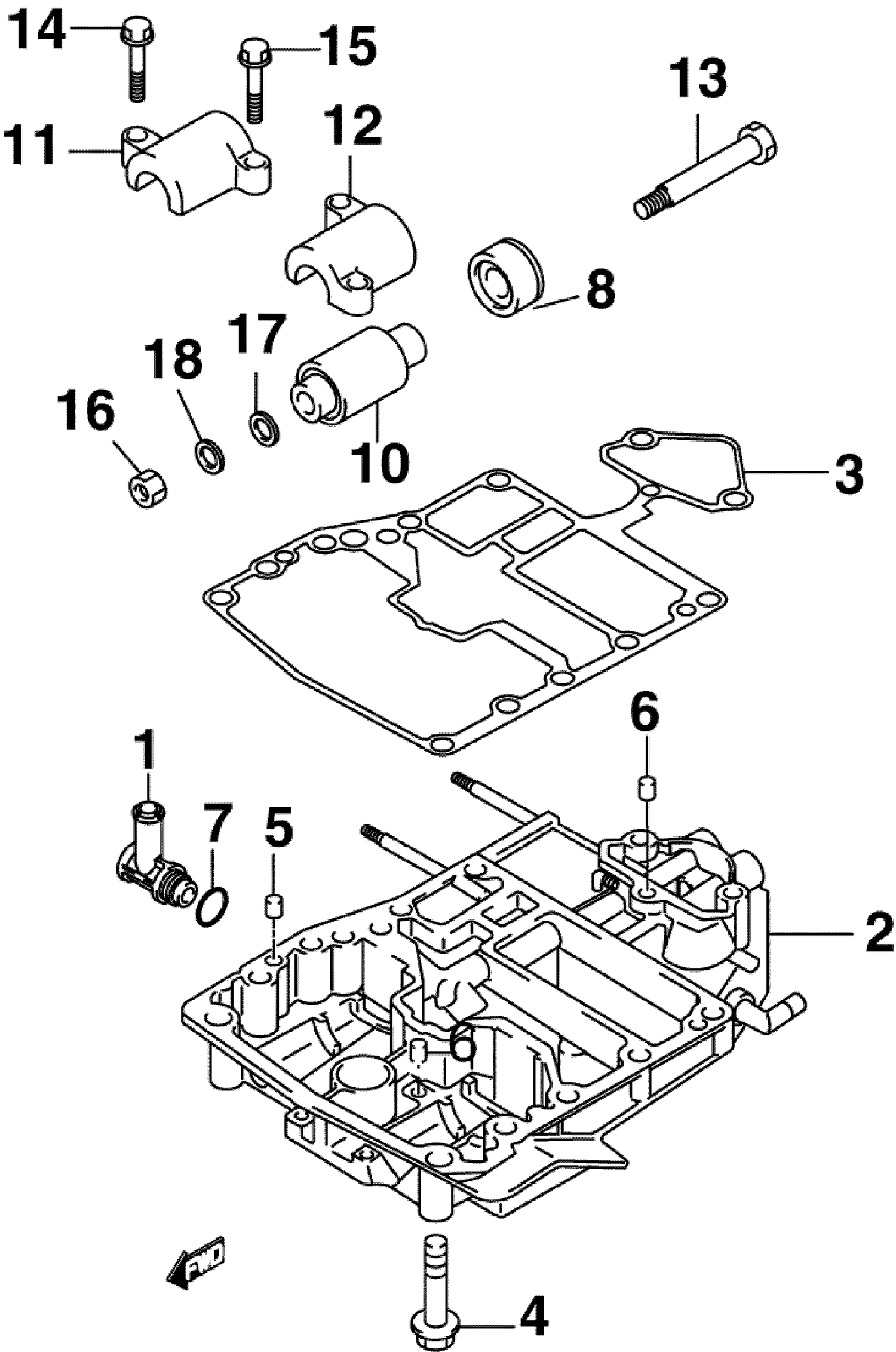

EXHAUST ADAPTER
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5032910 | PIPE, Water return hose |
| 2 | 5032923 | HOLDER SET, Engine |
| 3 | 5030882 | GASKET, Engine holder |
| 4 | 5030401 | BOLT |
| 6 | 5031013 | DOWEL PIN |
| 7 | 5030539 | O RING |
| 8 | 5036733 | STOP, Upper thrust |
| 10 | 5035806 | MOUNT, Upper |
| 11 | 5032838 | COVER, Upper mount - Stbd |
| 12 | 5032839 | COVER, Upper mount - Port |
| 13 | 5036734 | BOLT (12X117mm) |
| 14 | 5035665 | BOLT (8X40) |
| 15 | 5034399 | BOLT (8X30) |
| 16 | 5031221 | NUT |
| 17 | 5036612 | WASHER (12.5X24X2.5mm) |
