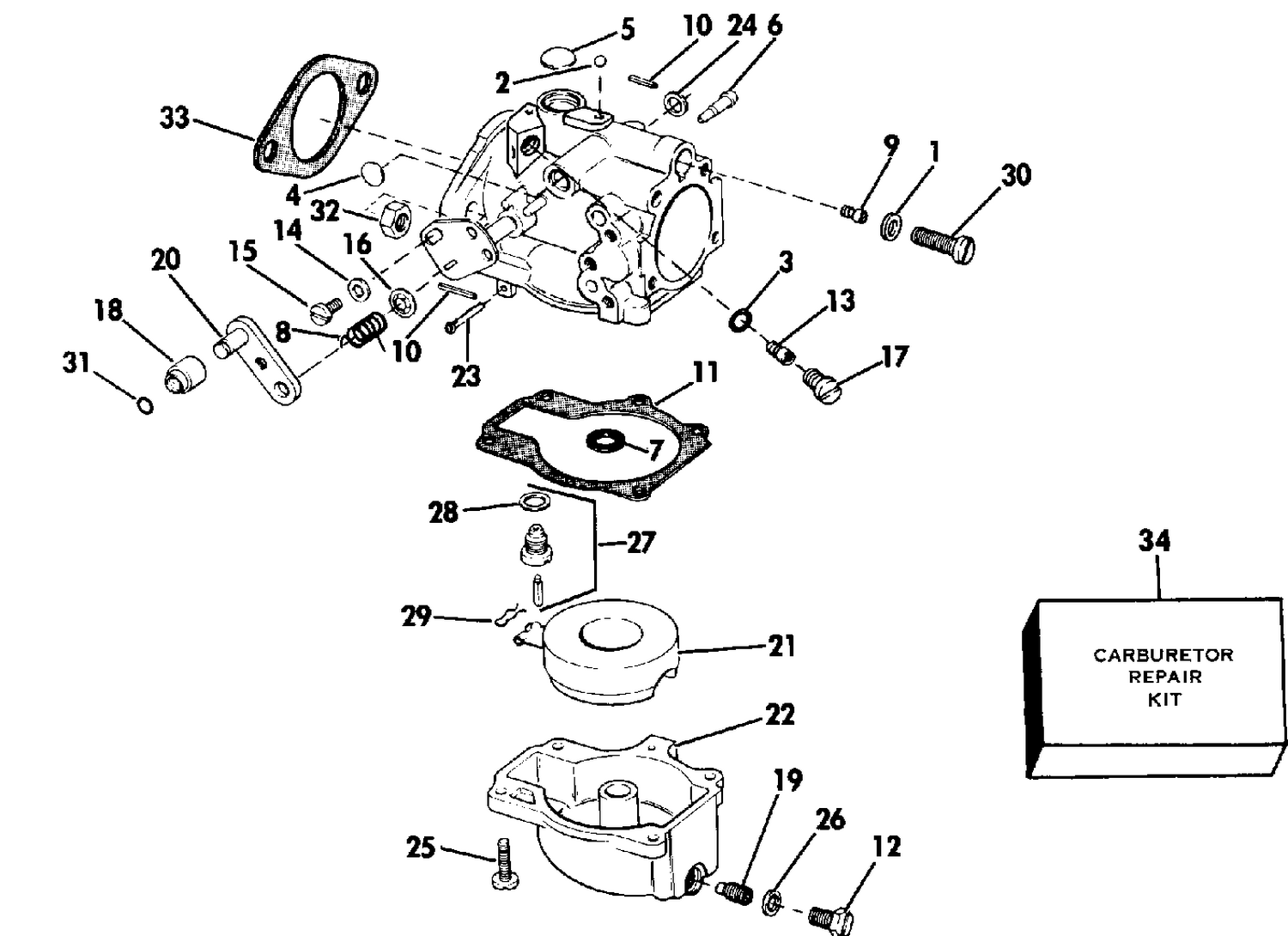

CARBURETOR
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 9 | 0318832 | O-RING, No. 35 |
| 13 | 0327342 | ORIFICE #46, 250 |
| 17 | 0317501 | SCREW PLUG, Orifice |
| 18 | 0330056 | ROLLER, Cam follower |
| 25 | 0319682 | VIS, capteur vers plaque |
| 29 | 0336842 | CLIP, SPRING This part replaces 0603145. |
| 31 | 0308776 | O-RING |
| 32 | 0316355 | BUT, Carburetor mounting |
| 33 | 0325092 | GASKET |
| 0394808 | 0394808 | CARB ASSY., Upper |
| 0394809 | 0394809 | CARB ASSY., Lower |
