Home / BRP / EVINRUDE / 1999 / 40 / 10- Electrical Accessories

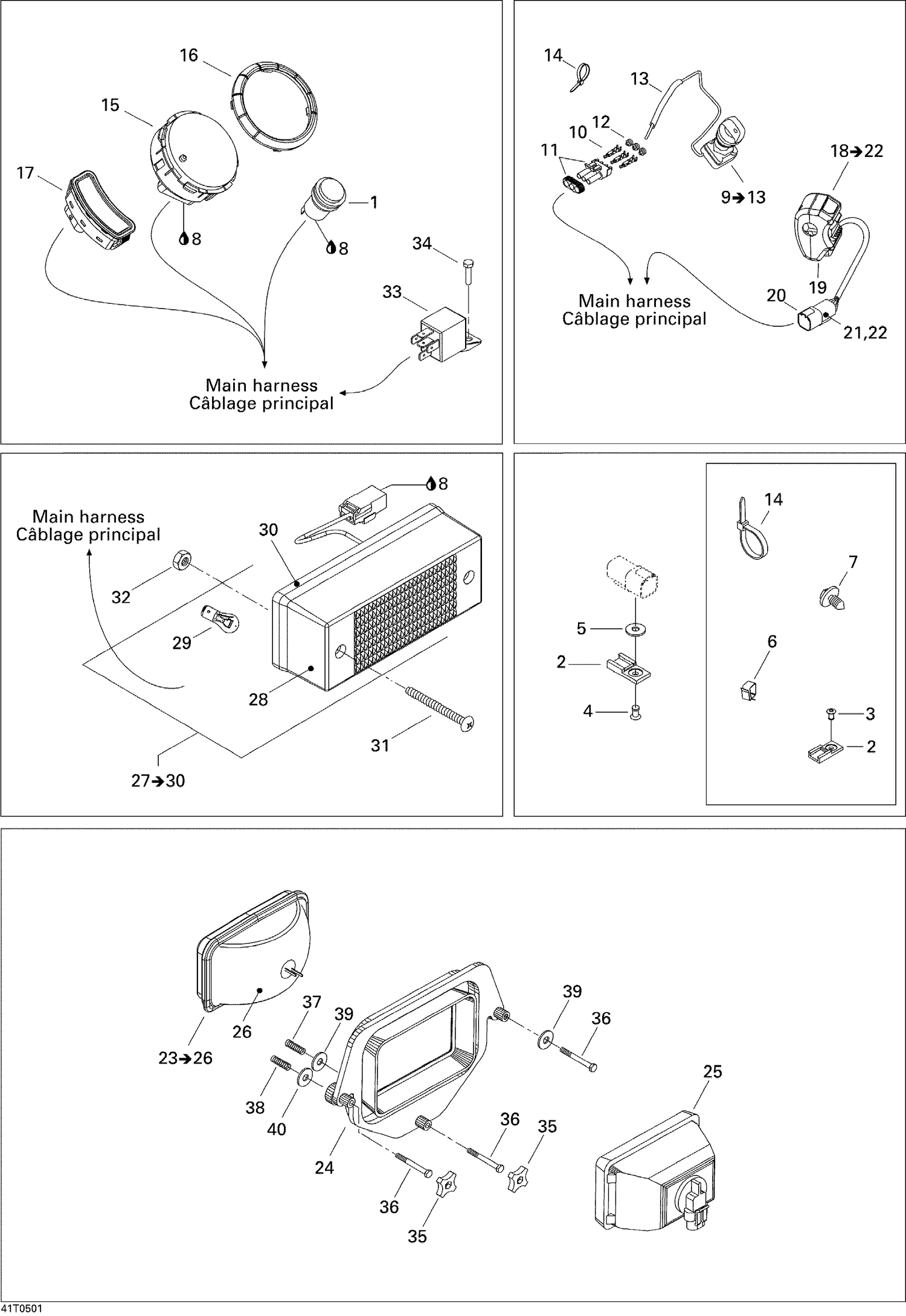

10- Electrical Accessories

10- Electrical Accessories

Parts (39)

RefPart NumberDescription
1 861507200 Outlet Power Kit, 12 Volts
2 270000141 Clip
3 390402400 Pop Rivet 3/16"
4 390402300 Pop Rivet 3/16"
5 391301600 Washer
6 414227300 Clip
7 293730040 Mount Dart This part replaces 293730018.
8 219704453 Was 293550004 Dielectric Grease, 150 g
9 710000101 BLANK KEY (B TYPE) - Call your local BRP dealership
10 278000223 Female Terminal
11 278000273 Male Housing, 3 Circuits
12 278000218 Wire Seal
13 710000171 Protector Tube
14 293750002 Tie Wrap 142 mm
14 293750008 Tie Wrap 368 mm
14 414115200 Tie-Rap 180 mm
15 710000674 Speedometer
16 710000137 BLANK KEY (A TYPE) - Call your local BRP dealership
16 710000353 TRIM RING - Call your local BRP dealership
17 710000592 LH WARNING LIGHT - Call your local BRP dealership
19 710000173 BACK COVER - Call your local BRP dealership
20 409015200 Male Terminal Housing, 6 Circuits
21 409014600 Male Lock, 6 Circuits
22 409014800 MALE TERMINAL - Call your local BRP dealership
24 705000283 LAMP SUPPORT - Call your local BRP dealership
25 705000284 LAMP HOUSING - Call your local BRP dealership
26 710000176 BULB - Call your local BRP dealership
28 710000055 TAIL LIGHT LENS, RED - Call your local BRP dealership
29 520000758 Bulb This part replaces 410504100.
30 710000129 GASKET - Call your local BRP dealership
31 208656091 PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership
32 233251434 Flange Elastic Nut M5 This part replaces 233251414.
33 710010053 Relay This part replaces 410113200.
34 210251180 HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership
35 572106600 Handle
36 250000008 HEX. SCREW K40 X 40 - Call your local BRP dealership
37 710000285 SPRING - Call your local BRP dealership
38 517168600 Spring
39 234042600 Flat Washer 4 mm, Stainless
