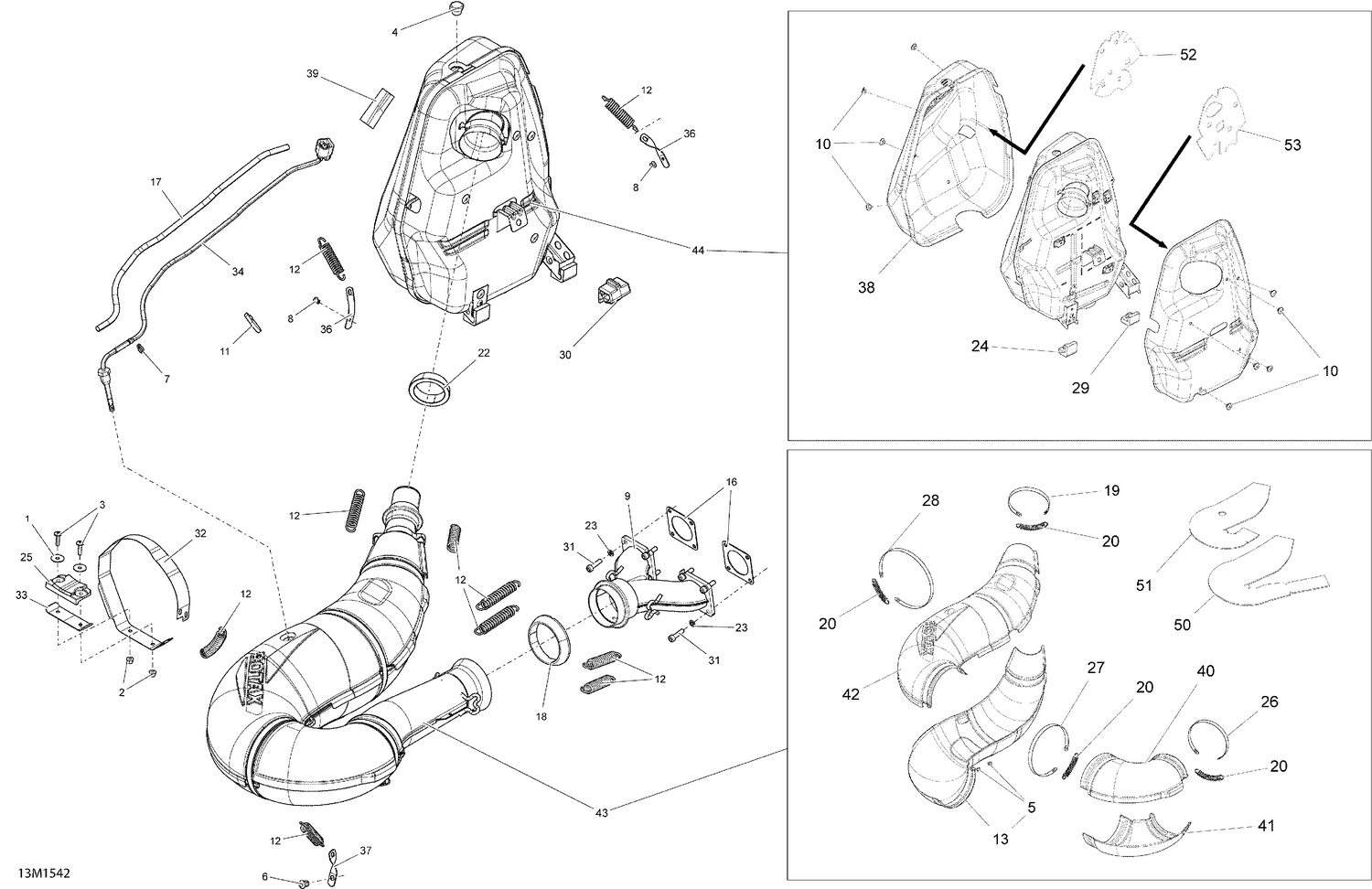

01- Exhaust System _13M1542
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 224060201 | Flat Washer |
| 2 | 233251434 | Flange Elastic Nut M5 |
| 3 | 250000724 | Torx Screw M5 X 20 This part replaces 250000130. |
| 4 | 250100074 | Hexagonal Head Pipe Plug M14 |
| 5 | 293150091 | Henrob Rivet |
| 6 | 293150266 | Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 7 | 293750001 | Tie Wrap 94 mm |
| 8 | 390402200 | Pop Rivet 3/16" |
| 9 | 420673422 | EXHAUST MANIFOLD - Call your local BRP dealership |
| 10 | 390910000 | Pop Rivet 3/16” |
| 11 | 414115200 | Tie-Rap 180 mm |
| 12 | 415107100 | Spring |
| 13 | 514054990 | Rear Lower Half Enveloppe |
| 16 | 420850552 | Gasket |
| 17 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 18 | 514053487 | Exhaust Gasket |
| 19 | 514053499 | Retaining Strap |
| 20 | 514053643 | Spring |
| 22 | 514053812 | Exhaust Gasket |
| 23 | 514053953 | Washer |
| 24 | 514054274 | Lower Stopper |
| 25 | 514054275 | Bumper |
| 26 | 514054408 | Retaining Strap |
| 27 | 514054409 | Retaining Strap |
| 28 | 514054410 | Retaining Strap |
| 29 | 514054496 | Lower Stopper |
| 30 | 514054606 | Upper Stopper |
| 31 | 250001077 | Socket Head Screw Scotch Grip M6 X 20 This part replaces 514054626. |
| 32 | 514054637 | RETAINING STRAP - Call your local BRP dealership |
| 33 | 514054638 | Reinforcement Plate |
| 34 | 514054870 | Temperature Sensor |
| 35 | 514054967 | LH Deflector |
| 36 | 514054974 | Spring Bracket, 5mm hole |
| 37 | 514054975 | Spring Bracket, 8.0mm hole |
| 38 | 514054986 | RH DEFLECTOR - Call your local BRP dealership |
| 39 | 514054987 | Heat Shield (Rectangle) |
| 40 | 514054992 | Front Upper Half Enveloppe |
| 41 | 514054993 | Front Lower Half Enveloppe |
| 42 | 514055067 | REAR UPPER HALF ENVELOPPE - Call your local BRP dealership |
| 43 | 514055068 | PIPE_TUNED ASSY - Call your local BRP dealership |
| 44 | 514055083 | Muffler Ass'y |
| 50 | 514054487 | Insulating Wool |
| 51 | 514054553 | INSULATING WOOL - Call your local BRP dealership |
| 52 | 514054711 | RH Insulating Wool |
