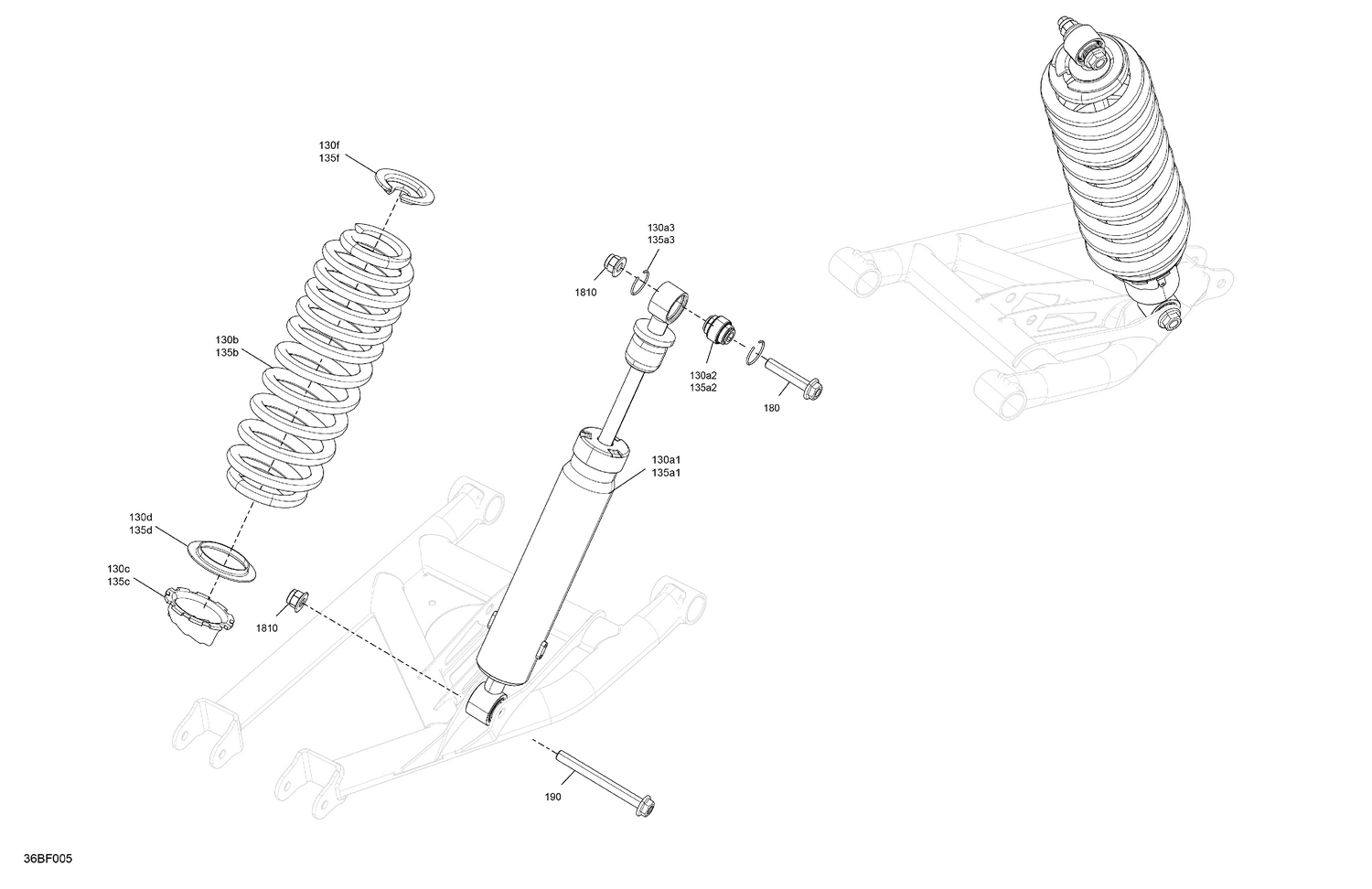

05- Suspension - Rear Shocks
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 130a1 | 706004558 | Rear Shock Absorber |
| 130a2 | 706004078 | Ball Joint |
| 130a3 | 293370157 | Internal Retaining Ring |
| 130b | 706005169 | Deep Black, Compression Spring |
| 130c | 706000910 | Adjustment Ring |
| 130d | 706005387 | Wear Ring |
| 130f | 706001894 | Spring Cup |
| 135a1 | 706004558 | Rear Shock Absorber |
| 135a2 | 706004078 | Ball Joint |
| 135a3 | 293370157 | Internal Retaining Ring |
| 135b | 706005169 | Deep Black, Compression Spring |
| 135c | 706000910 | Adjustment Ring |
| 135d | 706005387 | Wear Ring |
| 135f | 706001894 | Spring Cup |
| 180 | 250000857 | Flange Screw M12 X 60 |
| 190 | 250000857 | Flange Screw M12 X 60 |
