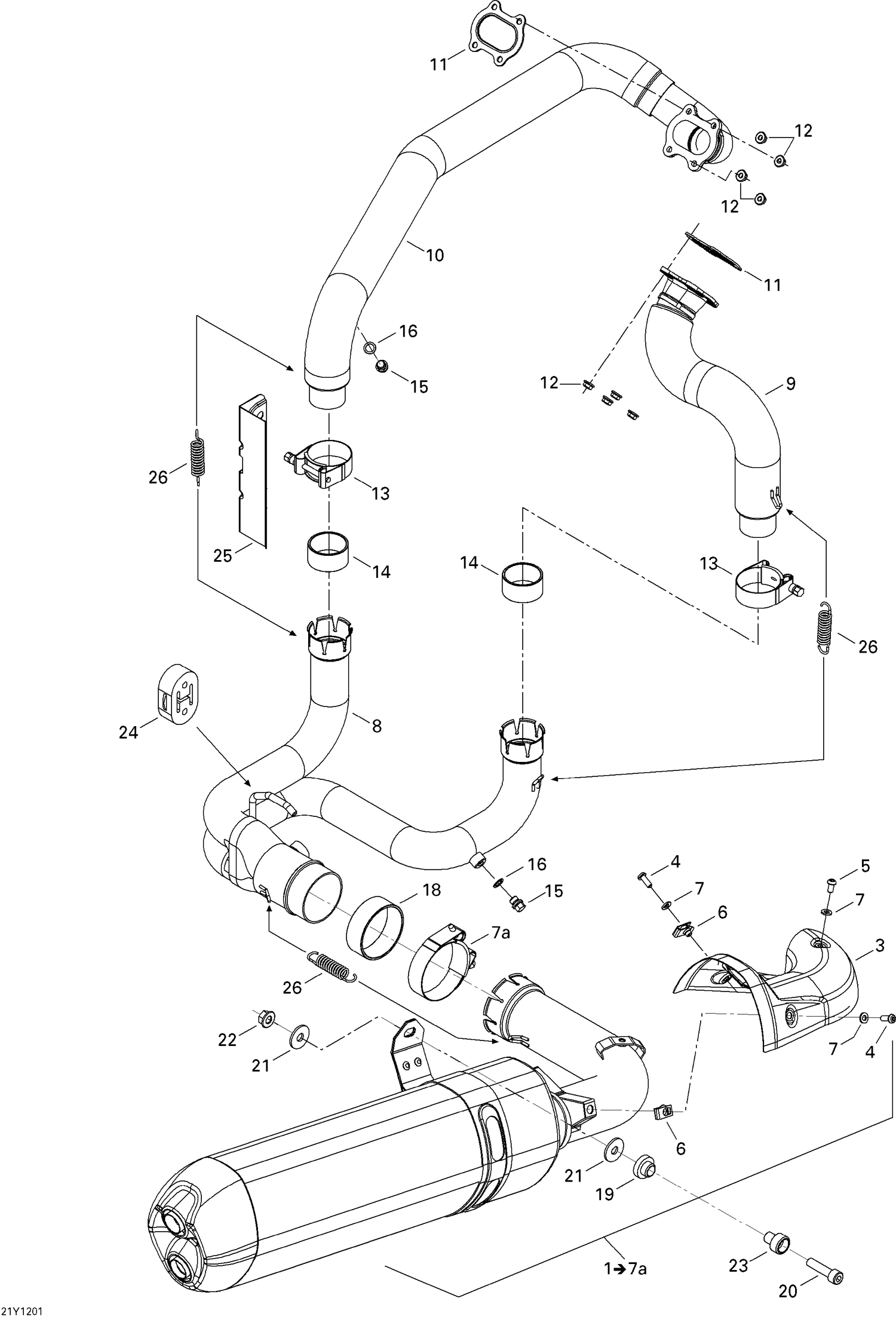

| Ref | Part Number | Description |
|---|
| 3 |
705001570 |
HEAT SHIELD - Call your local BRP dealership |
| 4 |
250000437 |
Stainless, Socket Screw, M6X16 S.Grip |
| 5 |
250000436 |
Socket Screw Button Head M6 X 10 |
| 6 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 7 |
234061600 |
Stainless Flat Washer M6 |
| 7a |
707600351 |
Collar |
| 8 |
707600623 |
EXHAUST MANIFOLD - Call your local BRP dealership |
| 9 |
707600635 |
REAR EXHAUST PIPE - Call your local BRP dealership |
| 10 |
707600289 |
FRONT TUNE PIPE - Call your local BRP dealership |
| 11 |
707600296 |
Seal |
| 12 |
233061414 |
Hex. Flange Nut M6 |
| 13 |
707600336 |
COLLAR - Call your local BRP dealership |
| 14 |
707600977 |
Slip Joint |
| 15 |
250100122 |
HEX HEAD PIPE PLUG M10 DIN910 - Call your local BRP dealership |
| 16 |
414920600 |
Washer |
| 18 |
707601026 |
Joint De Tuyau *Slip Joint This part replaces 707600547. |
| 19 |
707800347 |
Grommet |
| 20 |
244004060 |
Hex. Screw M10 X 40, Scotch Grip |
| 21 |
234002600 |
Flat Washer 10 mm, Stainless |
| 22 |
233101600 |
Hex. Flange Nut M10 |
| 23 |
707600390 |
BUSHING - Call your local BRP dealership |
| 24 |
707600638 |
Rubber Bumper |
| 25 |
707600653 |
DEFLECTOR - Call your local BRP dealership |
