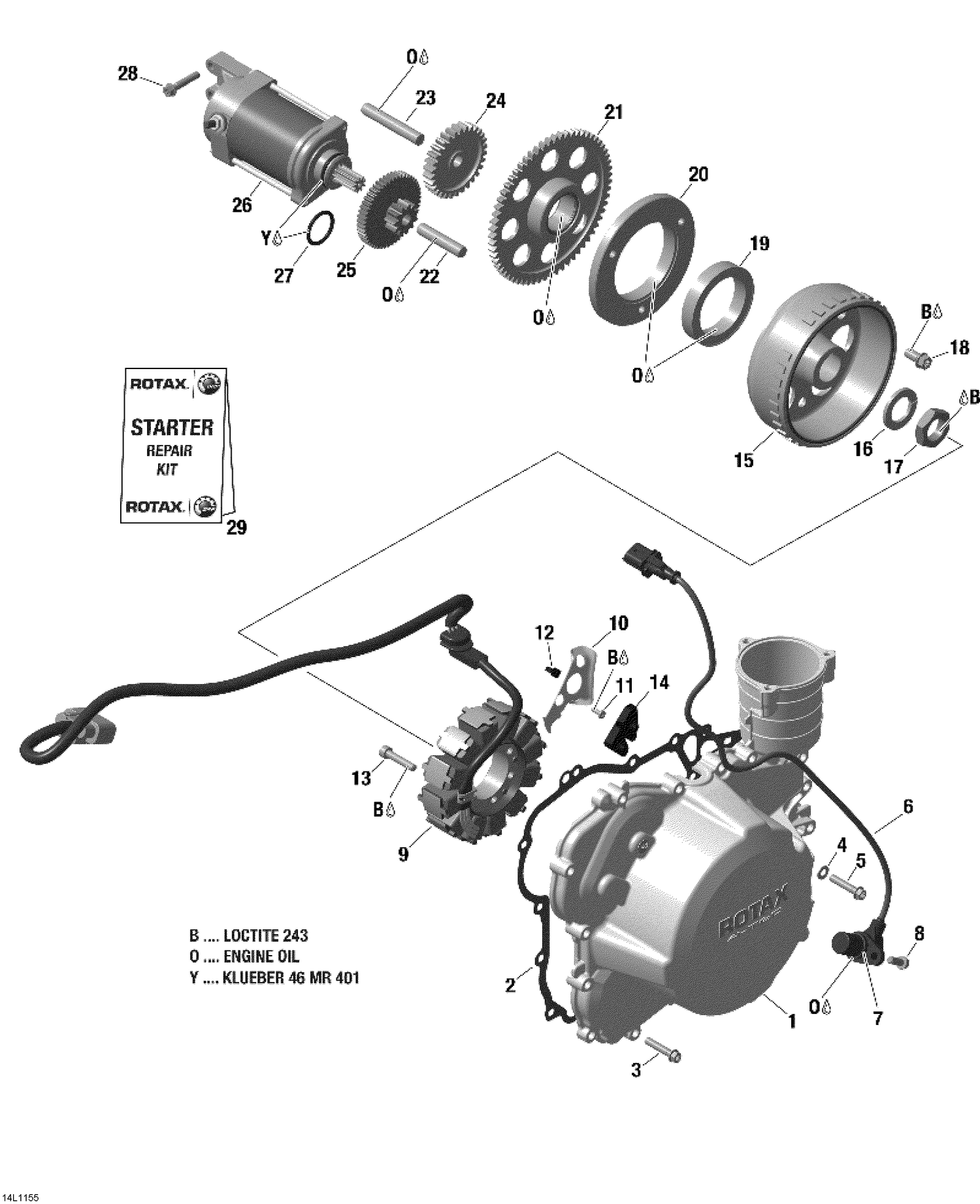

| Ref | Part Number | Description |
|---|
| B |
293800060 |
Loctite 243, 10 ml |
| O |
293600112 |
Synthetic Oil 4T 12X1 L. |
| 1 |
420611833 |
Cover |
| 2 |
420430750 |
Gasket |
| 3 |
420440647 |
Flanged Torx Screw M6 X 30 |
| 4 |
404146600 |
Sealing Washer |
| 5 |
420440647 |
Flanged Torx Screw M6 X 30 |
| 6 |
420966570 |
Crankshaft Position Sensor Ass'y |
| 7 |
420431580 |
O-Ring 17,17X1,78 FPM 70 |
| 8 |
420440162 |
Flanged Torx Screw M6 X 16 |
| 9 |
420892378 |
Stator Ass'y (490W, 14V) This part replaces 420892373. |
| 10 |
420951192 |
Cable Holder |
| 11 |
420640085 |
TORX SCREW 3.5 X 8 - Call your local BRP dealership |
| 12 |
420866717 |
CLAMP - Call your local BRP dealership |
| 13 |
205063044 |
Socket Head Screw M6 X 30 |
| 14 |
420860052 |
Spacer |
| 15 |
420892361 |
Magneto Flywheel |
| 16 |
420945759 |
Lock Washer, 22 mm |
| 17 |
420842239 |
Hex. Nut, M22 X 1.5 |
| 18 |
420440852 |
Flanged Torx Screw M8 X 16 |
| 19 |
420659113 |
Sprag Clutch 51,710x68,377x13 |
| 20 |
420659266 |
Housing Sprag Clutch |
| 21 |
420434235 |
Free Wheel Gear, 64 Teeth |
| 22 |
420229302 |
Location Pin This part replaces 420229301. |
| 23 |
420229475 |
Needle Pin ISO 8734-10X65-B-ST |
| 24 |
420634605 |
Gear, 30 Teeth |
| 25 |
420634741 |
Double Gear |
| 27 |
420250140 |
O-Ring |
| 28 |
420440647 |
Flanged Torx Screw M6 X 30 |
| 29 |
420881141 |
Carbon Brush Set This part replaces 420881140. |
