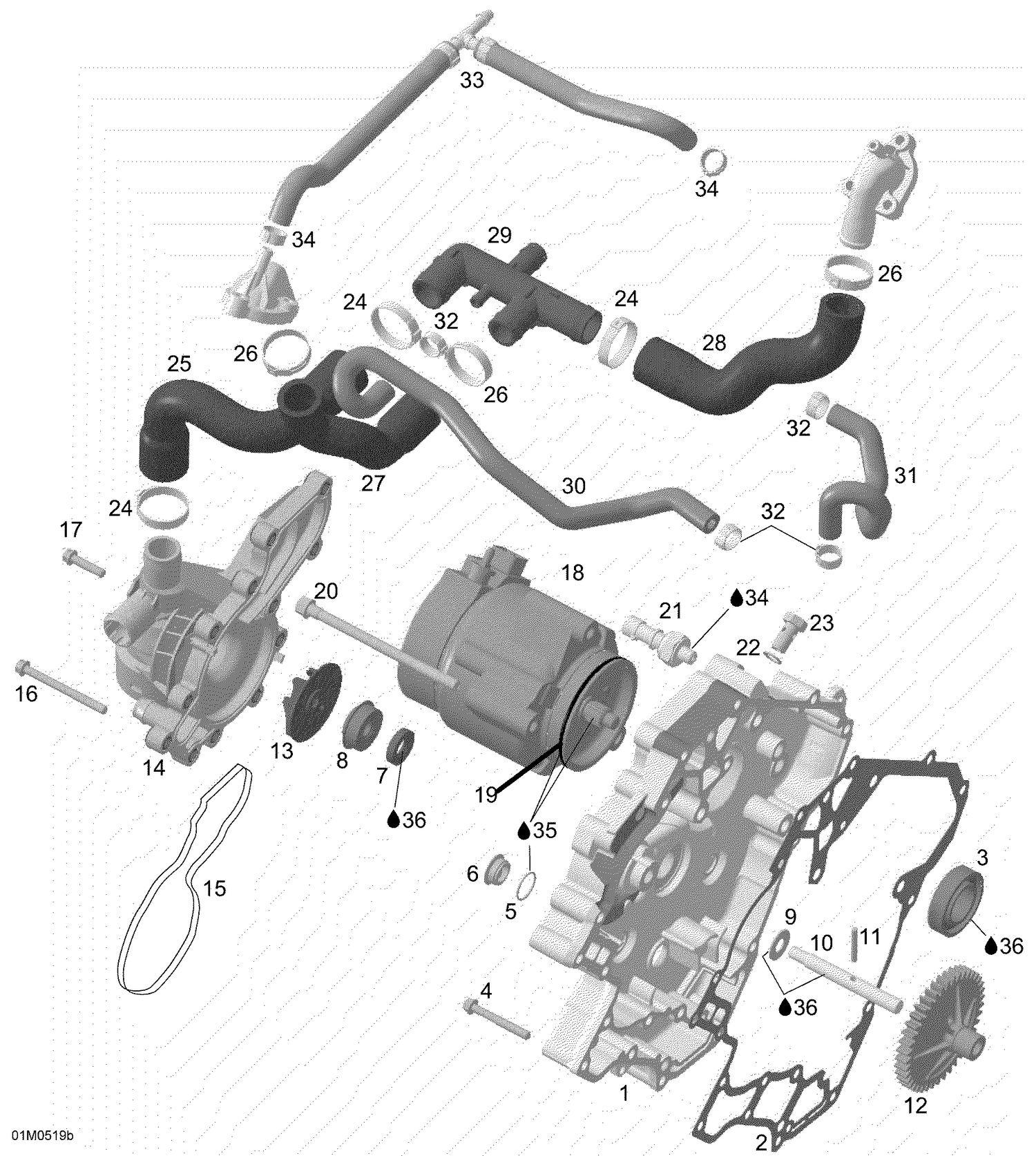

| Ref | Part Number | Description |
|---|
| 1 |
420811663 |
IGNITION COVER - Call your local BRP dealership |
| 2 |
420950590 |
GASKET - Call your local BRP dealership |
| 3 |
420932650 |
Bearing_Ball - Call your local BRP dealership |
| 4 |
420440324 |
Torx Flange Screw M6 X 45 This part replaces 420440322. |
| 5 |
420250890 |
O-Ring |
| 6 |
420241801 |
Drain Plug |
| 7 |
420650315 |
Oil Seal This part replaces 420650310. |
| 8 |
420650371 |
Rotary Seal This part replaces 420650370. |
| 9 |
420227685 |
THRUST WASHER - Call your local BRP dealership |
| 10 |
420837480 |
Waterpump Shaft |
| 11 |
420232431 |
Needle Pin This part replaces 420232430. |
| 12 |
420834460 |
WATERPUMP GEAR, 41 TEETH - Call your local BRP dealership |
| 13 |
420222501 |
Impeller This part replaces 420222500. |
| 14 |
420811605 |
WATERPUMP HOUSING - Call your local BRP dealership |
| 15 |
420950500 |
O-RING - Call your local BRP dealership |
| 16 |
420440602 |
Hex. Flange Screw M6 X 65 |
| 17 |
420440234 |
Torx Flange Screw M6 X 25 This part replaces 420440232. |
| 18 |
420296460 |
ALTERNATOR, 40 AMPERES - Call your local BRP dealership |
| 19 |
420850430 |
O-RING - Call your local BRP dealership |
| 20 |
420941651 |
HEX. SCREW M8 X 119 - Call your local BRP dealership |
| 21 |
420856537 |
Oil Pressure Switch This part replaces 420256773. |
| 22 |
420230150 |
Oil Seal |
| 23 |
420940874 |
Banjo Bolt M10 X 19 |
| 24 |
420853173 |
CLAMP - Call your local BRP dealership |
| 25 |
420922180 |
MOLDED HOSE - Call your local BRP dealership |
| 26 |
420853163 |
Clamp |
| 27 |
420922745 |
MOLDED HOSE - Call your local BRP dealership |
| 28 |
420922740 |
MOLDED HOSE - Call your local BRP dealership |
| 29 |
420922280 |
ELBOW FITTING - Call your local BRP dealership |
| 30 |
420822090 |
MOLDED HOSE - Call your local BRP dealership |
| 31 |
420822092 |
MOLDED HOSE - Call your local BRP dealership |
| 32 |
293650125 |
Oetiker Clamp This part replaces 420853303. |
| 33 |
420660881 |
HOSE ASS'Y - Call your local BRP dealership |
| 34 |
293650125 |
Oetiker Clamp This part replaces 420853303. |
| 34 |
293800060 |
Loctite 243, 10 ml |
| 35 |
293550030 |
Grease, Super Lube |
