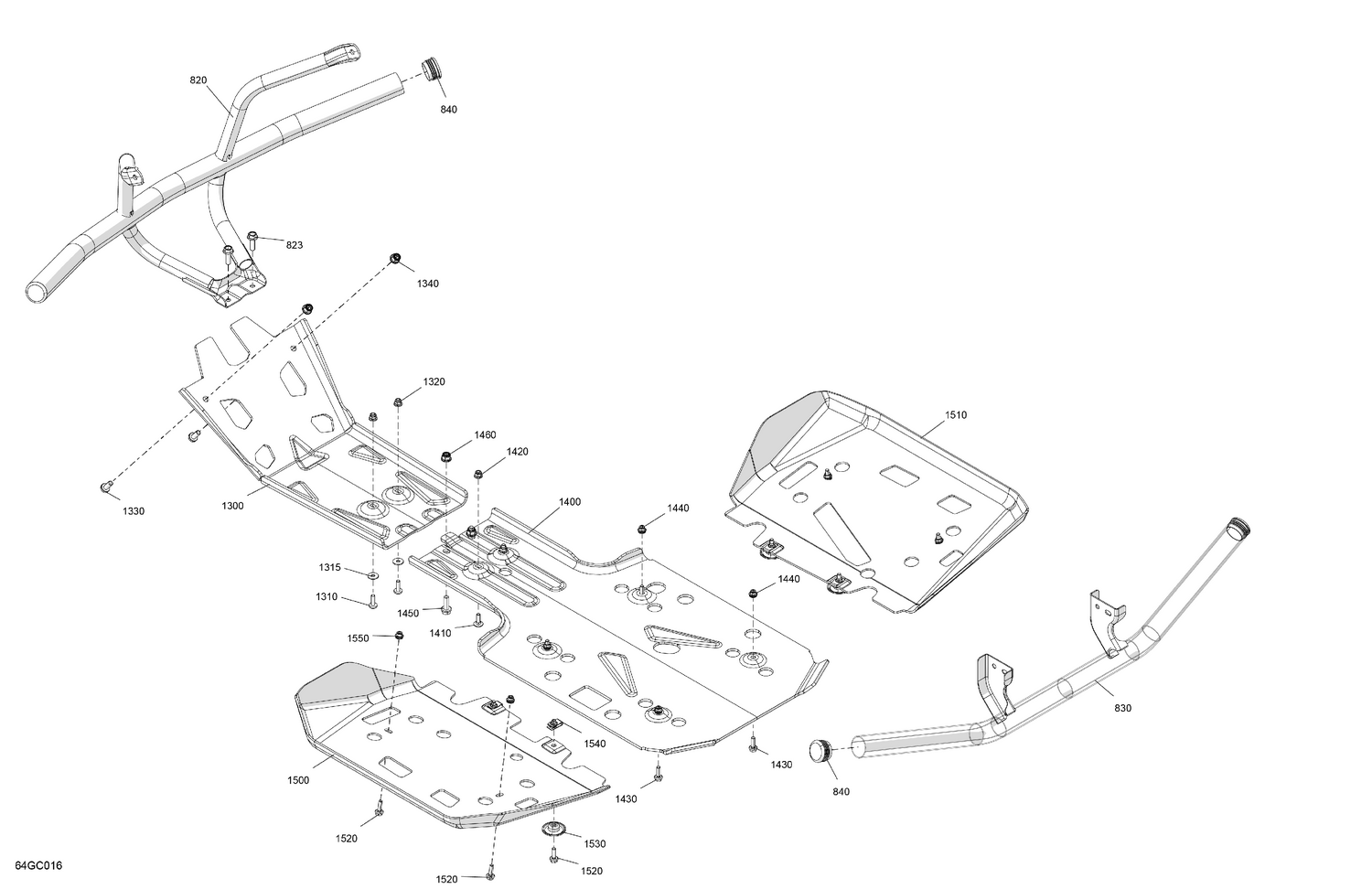

07- Body - Skid Plate and Bumper
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 820 | 715001910 | Front Bumper kit |
| 823 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 830 | 715001911 | Rear Bumper kit |
| 840 | 705202455 | Cap |
| 1300 | 705205019 | Front Skid Plate |
| 1310 | 250000712 | Torx Screw M6 X 20 |
| 1315 | 234062670 | Stainless Steel Flat Washer |
| 1320 | 233261434 | Flange Elastic Nut M6 |
| 1330 | 236282054 | Hex. Screw M8 X 20 |
| 1340 | 233281434 | Hex. Flange Elastic Nut M8 |
| 1400 | 705204031 | Central Skid Plate |
| 1410 | 207762044 | Carriage Bolt M6 X 20 |
| 1420 | 233261434 | Flange Elastic Nut M6 |
| 1430 | 207662054 | Hex. Flange Screw M6 X 20 |
| 1440 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 1450 | 207682544 | Hex. Flange Screw M8 X 25 |
| 1460 | 233281434 | Hex. Flange Elastic Nut M8 |
| 1500 | 705010659 | LH Skid Plate |
| 1510 | 705010660 | RH Skid Plate |
| 1520 | 207662054 | Hex. Flange Screw M6 X 20 |
| 1530 | 705007171 | Cup |
| 1540 | 250100198 | Panel Nut M6 X 1.0 |
