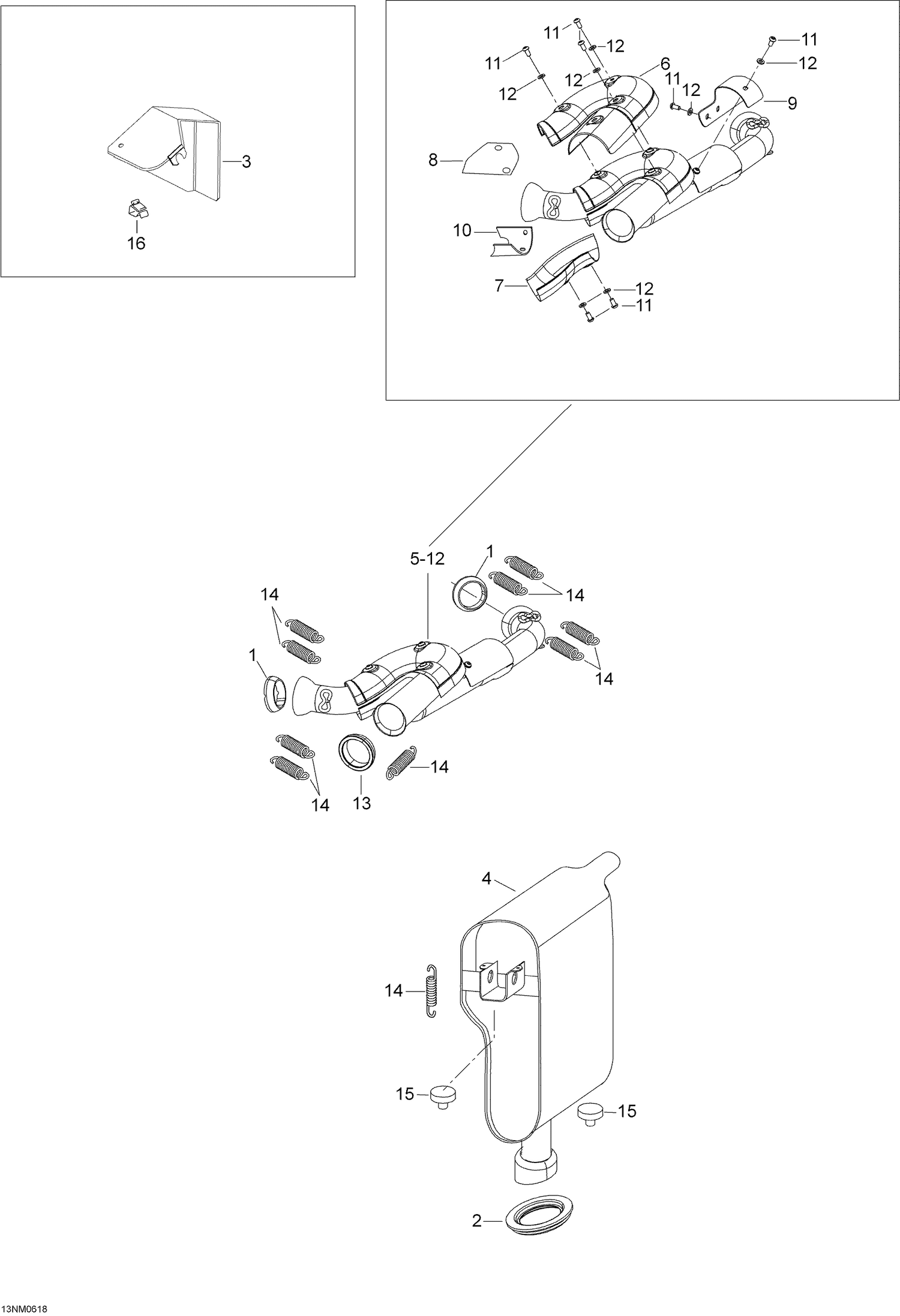

01- Exhaust system
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 707601033 | Gasket This part replaces 514053532. |
| 2 | 570039000 | EXHAUST GROMMET - Call your local BRP dealership |
| 3 | 605352345 | Heat protector |
| 4 | 605150881 | Muffler ass'y |
| 6 | 605351566 | Heat protector |
| 7 | 605351567 | Heat protector |
| 8 | 605351568 | Heat protector |
| 9 | 605351569 | Heat protector |
| 10 | 605351570 | Heat protector |
| 11 | 250000436 | Socket Screw Button Head M6 X 10 This part replaces 205461060. |
| 12 | 20032 | Washer M6 |
| 13 | 514054174 | Exhaust Gasket This part replaces 514053582. |
| 14 | 415107100 | Spring |
| 15 | 514053654 | Rubber Bumper This part replaces 570048700. |
