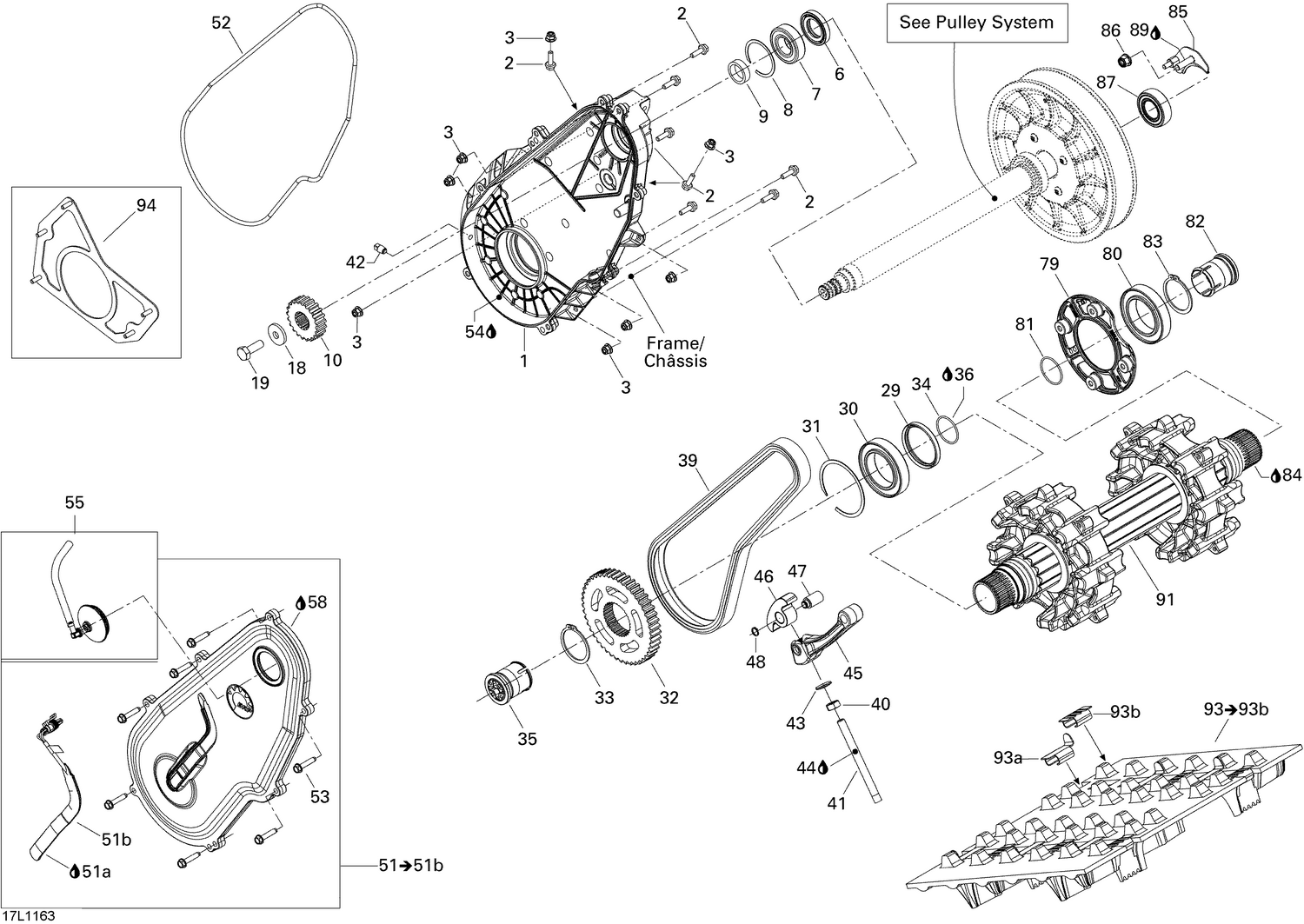

05- Drive System
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 504153181 | Chaincase This part replaces 504152914. |
| 2 | 207662034 | Hex. Flange Screw M6 x 20 |
| 3 | 233261434 | Flanged Elastic Nut M6 |
| 6 | 293200158 | Oil Seal This part replaces 415049300. |
| 7 | 293350115 | Ball Bearing This part replaces 293350055. |
| 8 | 504152576 | Circlip |
| 9 | 504152628 | Shim |
| 10 | 504153912 | Sprocket 25 Teeth This part replaces 504084300. |
| 18 | 504152784 | Spring Washer M10 |
| 19 | 207103044 | Hex. Screw M10 X 30 |
| 29 | 293200159 | Oil Seal This part replaces 504152571. |
| 30 | 293350059 | Ball Bearing |
| 31 | 504152582 | Circlip |
| 32 | 861805538 | Kit Sprocket This part replaces 504152593. |
| 33 | 504152572 | Circlip |
| 34 | 293300122 | O-Ring |
| 35 | 504152619 | Magnetic Cap |
| 36 | 293550033 | SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 39 | 504152629 | Drive Chain, 104 Links |
| 40 | 232006414 | Hex. Nut M10 |
| 41 | 504152602 | Adjustment Screw |
| 42 | 504152636 | Magnetic Plug |
| 43 | 293200128 | Bonded Washer |
| 44 | 413803300 | SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership |
| 45 | 504153429 | Chain Tensioner This part replaces 504152685. |
| 46 | 504152739 | Slider Chain |
| 47 | 504152841 | Tensionner Axle |
| 48 | 504152282 | Circlip |
| 51 | 504153147 | Cover Ass´y This part replaces 504152916. |
| 51a | 293800066 | SEALANT LOCTITE SI 5900 - Call your local BRP dealership |
| 51b | 504152896 | Sensor |
| 52 | 293300130 | O-Ring |
| 53 | 250000360 | Flanged Hex. Screw M6 X 30 |
| 54 | 413803300 | SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership |
| 55 | 504153033 | Cap assy |
| 58 | 413803300 | SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership |
| 79 | 504153886 | Retaining Ring This part replaces 504152949. |
| 80 | 293350059 | Ball Bearing |
| 81 | 293300122 | O-Ring |
| 82 | 504152619 | Magnetic Cap |
| 83 | 504152572 | Circlip |
| 84 | 293550033 | SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 85 | 504153418 | Bearing Housing This part replaces 504152974. |
| 86 | 233281414 | Hex. Flange Elastic Nut M8 |
| 87 | 293350074 | Ball Bearing |
| 89 | 293800070 | Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 91 | 504153134 | Drive Axle Ass'y |
| 93 | 605613005 | Track Ass'y 381x3052x38 (72,6) |
| 93a | 415129528 | Track Guide |
| 93b | 504152651 | Cleat |
