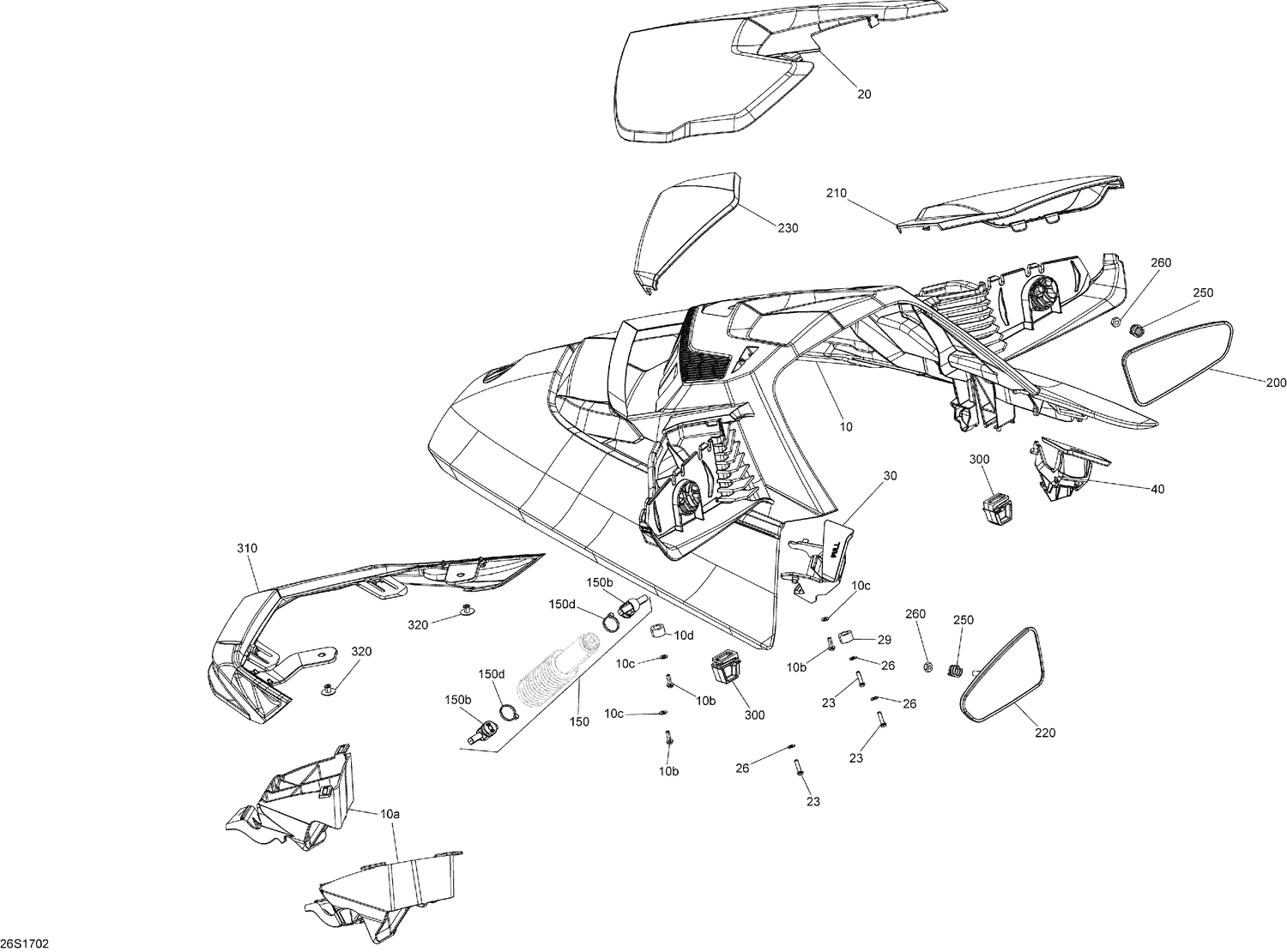

09- Front Cover - All Models
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 241141360 | Hex. Flange Screw K40 X 13 |
| 10c | 234041600 | Flat Washer 4 mm, Stainless |
| 10d | 291001203 | Spacer |
| 20 | 269502209 | Black Upper Front Deflector |
| 23 | 241141660 | Hex. Flange Screw K40 X 16 |
| 26 | 234041600 | Flat Washer 4 mm, Stainless |
| 29 | 291001203 | Spacer |
| 30 | 269501964 | Left Latch |
| 40 | 269501965 | Right Latch |
| 150b | 269501984 | Shock Absorber End Fitting This part replaces 269501717. |
| 150d | 293750001 | Tie Wrap 94 mm |
| 200 | 269501920 | RH Mirror Ass'y |
| 210 | 269502204 | Black RH Mirror Housing |
| 220 | 269501918 | LH Mirror Ass'y |
| 230 | 269502203 | Black LH Mirror Housing |
| 250 | 269500453 | Mirror Spring |
| 260 | 232561200 | Brass Elastic Stop Nut M6 |
| 300 | 293830135 | Rubber Bumper |
