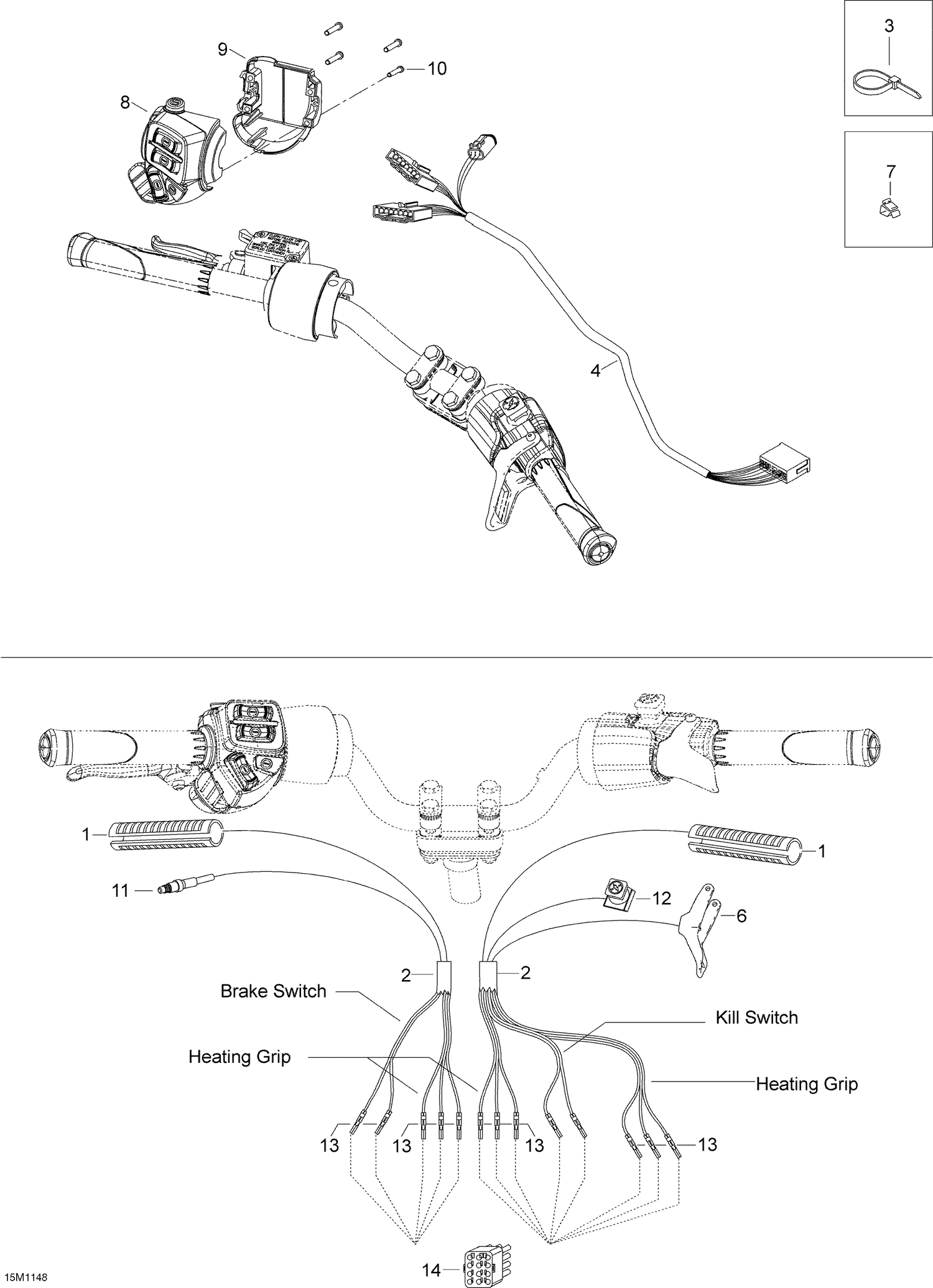

| Ref | Part Number | Description |
|---|
| 1 |
515176139 |
HEATER ELEMENT - Call your local BRP dealership |
| 2 |
M39023 |
Housing |
| 3 |
M27100 |
Tie Rap 290 Mm |
| 4 |
605353266 |
STEERING HARNESS - Call your local BRP dealership |
| 6 |
512060214 |
Handle Ass'y |
| 7 |
414227300 |
Clip |
| 8 |
515177028 |
Switch Housing This part replaces 515175771. |
| 9 |
515175926 |
Switch Housing Plate |
| 10 |
Not |
Available As Spare Part - Screw 3.5X25 |
| 11 |
507032366 |
Microswitch |
| 12 |
515177362 |
Emergency Stop Switch This part replaces 515176725. |
| 13 |
605642628 |
CONNECTOR - Call your local BRP dealership |
