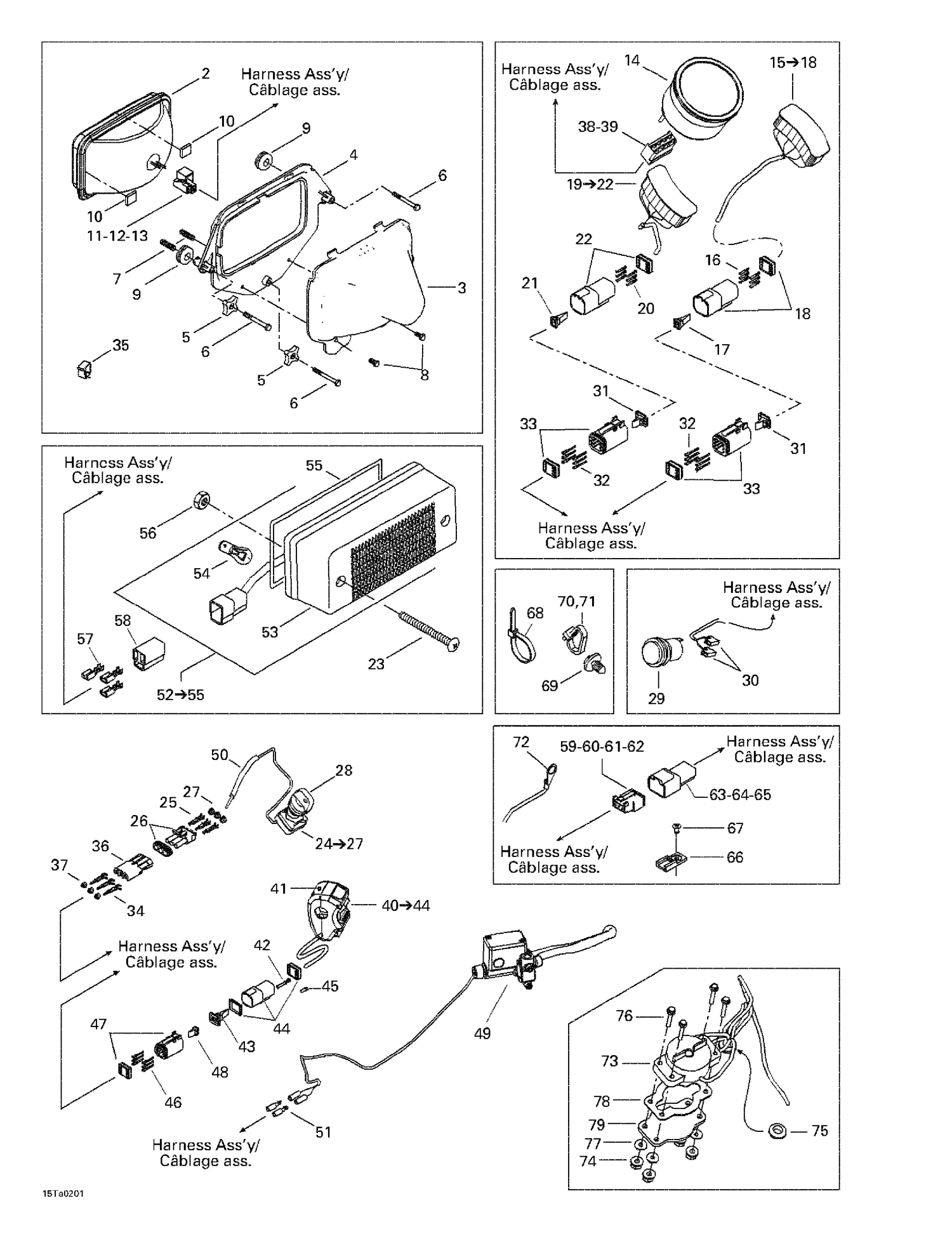

| Ref | Part Number | Description |
|---|
| 1 |
710000199 |
Harness Ass'y (Not Shown) |
| 2 |
710000001 |
HEADLAMP - Call your local BRP dealership |
| 3 |
705000023 |
Protector |
| 4 |
705000474 |
Head Lamp Support |
| 5 |
572106600 |
Handle |
| 6 |
250000008 |
HEX. SCREW K40 X 40 - Call your local BRP dealership |
| 7 |
517168600 |
Spring |
| 8 |
241641040 |
PHILLIPS SCREW K40 X 10 - Call your local BRP dealership |
| 9 |
709000582 |
Grommet This part replaces 293720053. |
| 10 |
293830088 |
Rubber Pad |
| 11 |
710000028 |
Female Lock, 2 Circuits |
| 12 |
710000026 |
FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership |
| 13 |
710000027 |
Female Terminal |
| 14 |
710000198 |
Speedometer |
| 16 |
409014800 |
MALE TERMINAL - Call your local BRP dealership |
| 17 |
409014600 |
Male Lock, 6 Circuits |
| 18 |
409015200 |
Male Terminal Housing, 6 Circuits |
| 20 |
409014800 |
MALE TERMINAL - Call your local BRP dealership |
| 21 |
409014600 |
Male Lock, 6 Circuits |
| 22 |
409015200 |
Male Terminal Housing, 6 Circuits |
| 23 |
208656091 |
PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership |
| 25 |
278000223 |
Female Terminal |
| 26 |
278000273 |
Male Housing, 3 Circuits |
| 27 |
278000218 |
Wire Seal |
| 28 |
710000101 |
BLANK KEY (B TYPE) - Call your local BRP dealership |
| 28 |
710000137 |
BLANK KEY (A TYPE) - Call your local BRP dealership |
| 29 |
861507200 |
Outlet Power Kit, 12 Volts This part replaces 710000024. |
| 30 |
710000038 |
Female Terminal |
| 31 |
409014900 |
FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership |
| 32 |
409015100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 33 |
409015500 |
Female Terminal Housing (6 Circuits) |
| 34 |
409004300 |
Male Terminal |
| 35 |
414227300 |
Clip |
| 36 |
278000281 |
Female Terminal Housing, 3 Circuits |
| 37 |
278000218 |
Wire Seal |
| 38 |
710000036 |
Female Terminal |
| 39 |
710000035 |
Female Housing (8 Circuits) |
| 41 |
710000173 |
BACK COVER - Call your local BRP dealership |
| 42 |
409014800 |
MALE TERMINAL - Call your local BRP dealership |
| 43 |
409014600 |
Male Lock, 6 Circuits |
| 44 |
409015200 |
Male Terminal Housing, 6 Circuits |
| 45 |
515175303 |
PLUG - Call your local BRP dealership |
| 46 |
409015100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 47 |
409015400 |
FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership |
| 48 |
409014900 |
FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership |
| 49 |
705600120 |
FRONT MASTER CYLINDER - Call your local BRP dealership |
| 50 |
710000171 |
Protector Tube |
| 51 |
710000082 |
Female Terminal |
| 53 |
710000055 |
TAIL LIGHT LENS, RED - Call your local BRP dealership |
| 54 |
520000758 |
Bulb This part replaces 410504100. |
| 55 |
710000129 |
GASKET - Call your local BRP dealership |
| 56 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 57 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 58 |
409204300 |
Female Housing |
| 59 |
515175303 |
PLUG - Call your local BRP dealership |
| 60 |
515175248 |
Female Lock, 3 Circuits |
| 61 |
409015100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 62 |
515175249 |
FEMALE TERMINAL HOUSING, 3 CIRC. - Call your local BRP dealership |
| 63 |
710000043 |
MALE LOCK, 3 CIRCUITS - Call your local BRP dealership |
| 64 |
409014800 |
MALE TERMINAL - Call your local BRP dealership |
| 65 |
710000044 |
MALE HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 66 |
270000141 |
Clip |
| 67 |
390402400 |
Pop Rivet 3/16" |
| 68 |
293750008 |
Tie Wrap 368 mm |
| 69 |
293730040 |
Mount Dart This part replaces 293730018. |
| 70 |
293750002 |
Tie Wrap 142 mm |
| 71 |
414115200 |
Tie-Rap 180 mm |
| 72 |
278001392 |
Open Barrel Terminal |
| 73 |
710000116 |
Winch Switch |
| 74 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 75 |
293720066 |
GROMMET - Call your local BRP dealership |
| 76 |
207664044 |
Hex. Flange Screw M6 X 40 |
| 77 |
224061201 |
Flat Washer |
| 78 |
710000118 |
Winch support |
