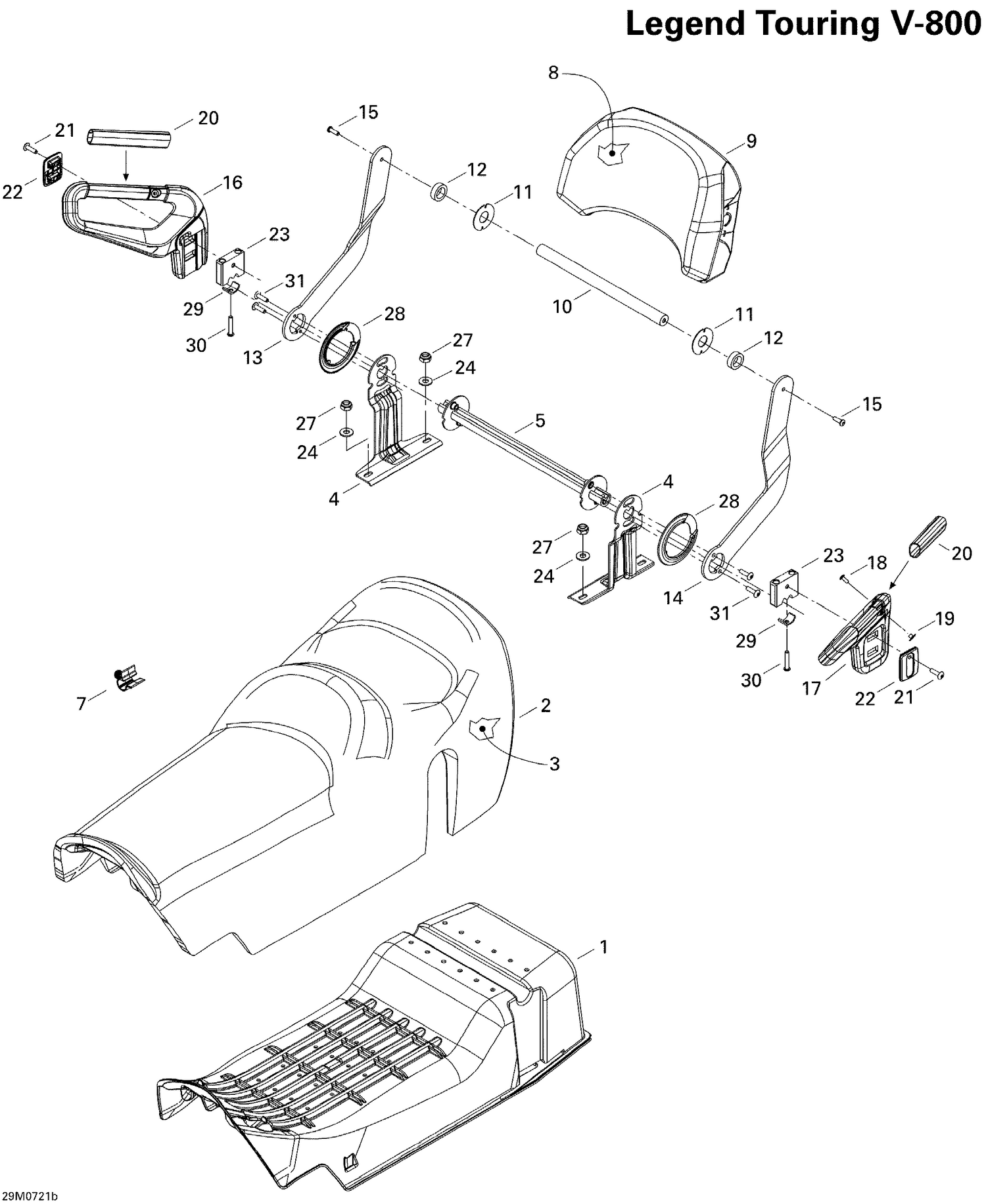

| Ref | Part Number | Description |
|---|
| 1 |
510004668 |
Seat Base |
| 2 |
510004669 |
SEAT COVER - Call your local BRP dealership |
| 3 |
510004670 |
Foam |
| 4 |
510004662 |
T PLATE - Call your local BRP dealership |
| 5 |
510004663 |
CROSS MEMBER - Call your local BRP dealership |
| 7 |
275500528 |
Hose Retainer |
| 8 |
510004365 |
BACKREST FOAM - Call your local BRP dealership |
| 9 |
510004761 |
BACKRESS COVER - Call your local BRP dealership |
| 10 |
510004377 |
Upper Backrest Axle |
| 11 |
510004379 |
Washer |
| 12 |
510004378 |
Rubber Shim |
| 13 |
510004373 |
RH ARM, BLACK - Call your local BRP dealership |
| 14 |
510004375 |
LH ARM, BLACK - Call your local BRP dealership |
| 15 |
205982586 |
SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership |
| 16 |
510005865 |
RH HANDLE - Call your local BRP dealership This part replaces 510004367. |
| 17 |
510005862 |
LH Handle This part replaces 510004368. |
| 18 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 19 |
293100003 |
Nut Welded, M6 |
| 20 |
510004449 |
Handle Grip |
| 21 |
250000745 |
Hex Torx Truss M8 X30 This part replaces 250000197. |
| 22 |
510006602 |
Passenger Handle Trim This part replaces 510004405. |
| 23 |
510004530 |
HANDLE LINK - Call your local BRP dealership |
| 24 |
234082410 |
Flat Washer 8 mm |
| 27 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 28 |
510004713 |
SPACER - Call your local BRP dealership |
| 29 |
510004565 |
HANDLE CLAMP - Call your local BRP dealership |
| 30 |
250000220 |
SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership |
