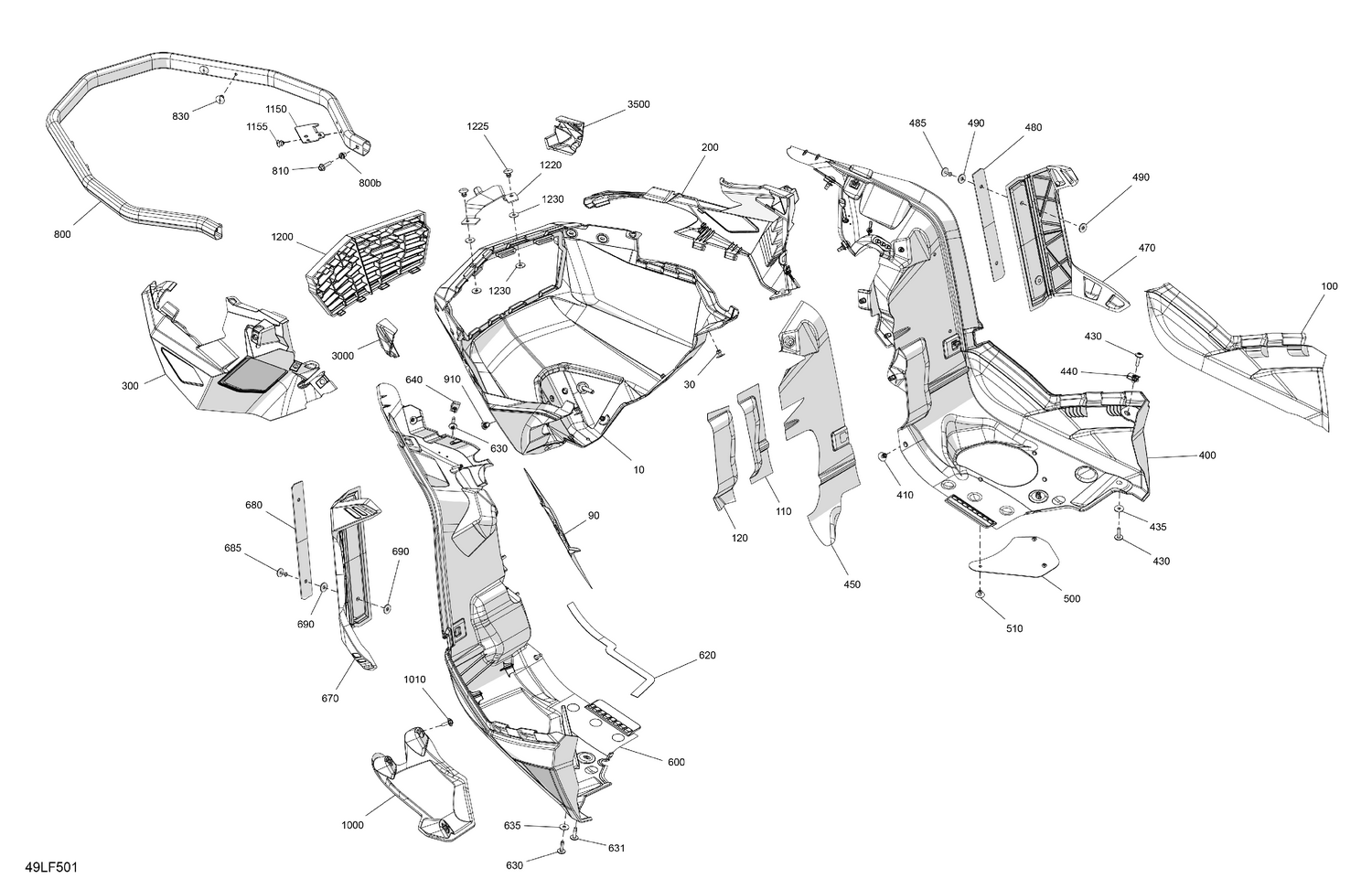

| Ref | Part Number | Description |
|---|
| 10 |
502008773 |
Deep Black, Front Bottom Pan |
| 30 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 90 |
508001088 |
Heat Shield |
| 100 |
508001357 |
RH Lower Heat Shield |
| 110 |
44110 |
Aluminum Foil |
| 120 |
44110 |
Aluminum Foil |
| 200 |
502008771 |
Deep Black, RH Machined Bottom Pan Cap |
| 300 |
502008769 |
Deep Black, LH Machined Bottom Pan Cap |
| 400 |
502008770 |
Deep Black, LH Lower Bottom Pan |
| 410 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 430 |
250000586 |
Torx Truss M5 X 20 |
| 435 |
250200025 |
Washer M5 |
| 440 |
250000958 |
Panel Nut M5 X 0.8 |
| 450 |
508001061 |
RH Bottom Pan Heat Shield |
| 470 |
517309480 |
Big Latch |
| 480 |
502008799 |
Plate |
| 485 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 490 |
517124300 |
Washer |
| 500 |
502008690 |
Plate |
| 510 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 600 |
502008768 |
Deep Black, LH Lower Bottom Pan |
| 620 |
293250427 |
Neoprene Seal |
| 630 |
250001232 |
Screw Torx M5 X 20 |
| 631 |
250000586 |
Torx Truss M5 X 20 |
| 635 |
250200025 |
Washer M5 |
| 640 |
250000958 |
Panel Nut M5 X 0.8 |
| 670 |
517309480 |
Big Latch |
| 680 |
502008799 |
Plate |
| 685 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 690 |
517124300 |
Washer |
| 800b |
293450268 |
Insert M5 X 0.8 |
| 810 |
207552044 |
Hex. Flange Screw M5 X 20, Scotch Grip |
| 830 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 910 |
518321954 |
Fastener Panel |
| 1000 |
502007670 |
Protection Plate |
| 1010 |
250000725 |
Screw M4 X 16 |
| 1150 |
502008410 |
Bracket |
| 1155 |
293150174 |
Hemlock Rivet, 6.5 mm |
| 1200 |
502007979 |
Lower Prefilter Grille |
| 1220 |
517309475 |
Front Support |
| 1225 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 1230 |
250200025 |
Washer M5 |
| 3000 |
502008363 |
Deep Black, LH Front Cap |
