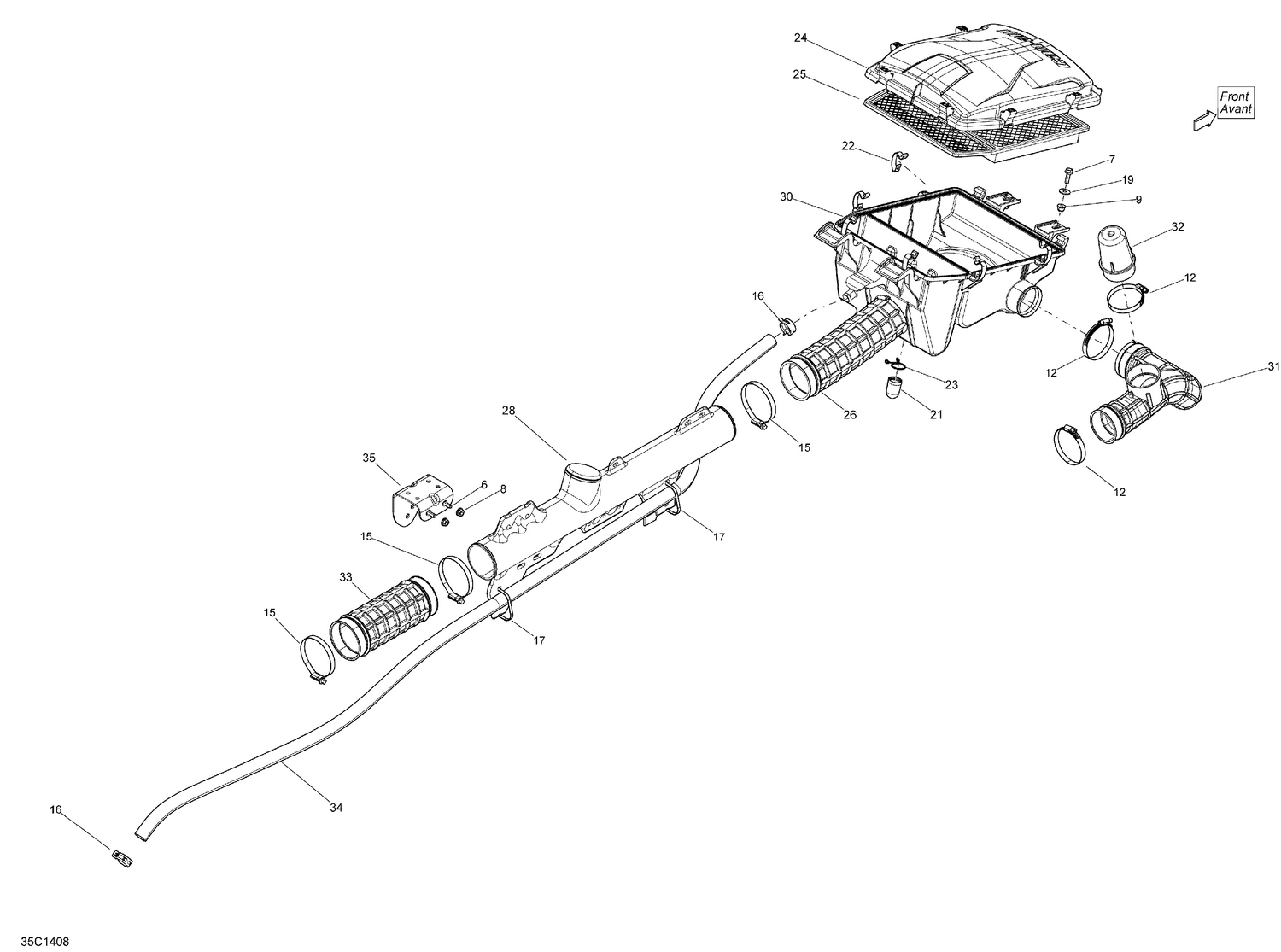

02- Air Intake
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 7 | 207662044 | Hex. Flange Screw M6 X 20 |
| 8 | 233061414 | Hex. Flange Nut M6 |
| 9 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 12 | 293650079 | Norma Clamp |
| 15 | 293650091 | Norma Clamp |
| 16 | 293650213 | Norma Spring Clamp |
| 17 | 293750008 | Tie Wrap 368 mm |
| 19 | 250200082 | Flat Washer |
| 21 | 707800080 | Drain Tube |
| 22 | 707800249 | Cover Bracket |
| 23 | 707800278 | Retainer Clip |
| 24 | 707800326 | Air Intake Silencer Cover |
| 25 | 707800327 | Air Filter |
| 26 | 707800329 | Intake Adaptor |
| 28 | 707800515 | Intake Adaptor |
| 30 | 707800517 | Air Intake Silencer Base |
| 31 | 707800532 | Intake Adaptor |
| 32 | 707800533 | Intake Adaptor Tank |
| 33 | 707800541 | Intake Adaptor |
| 34 | 219704438 | Was 707800411 Hose 15.88 mm |
