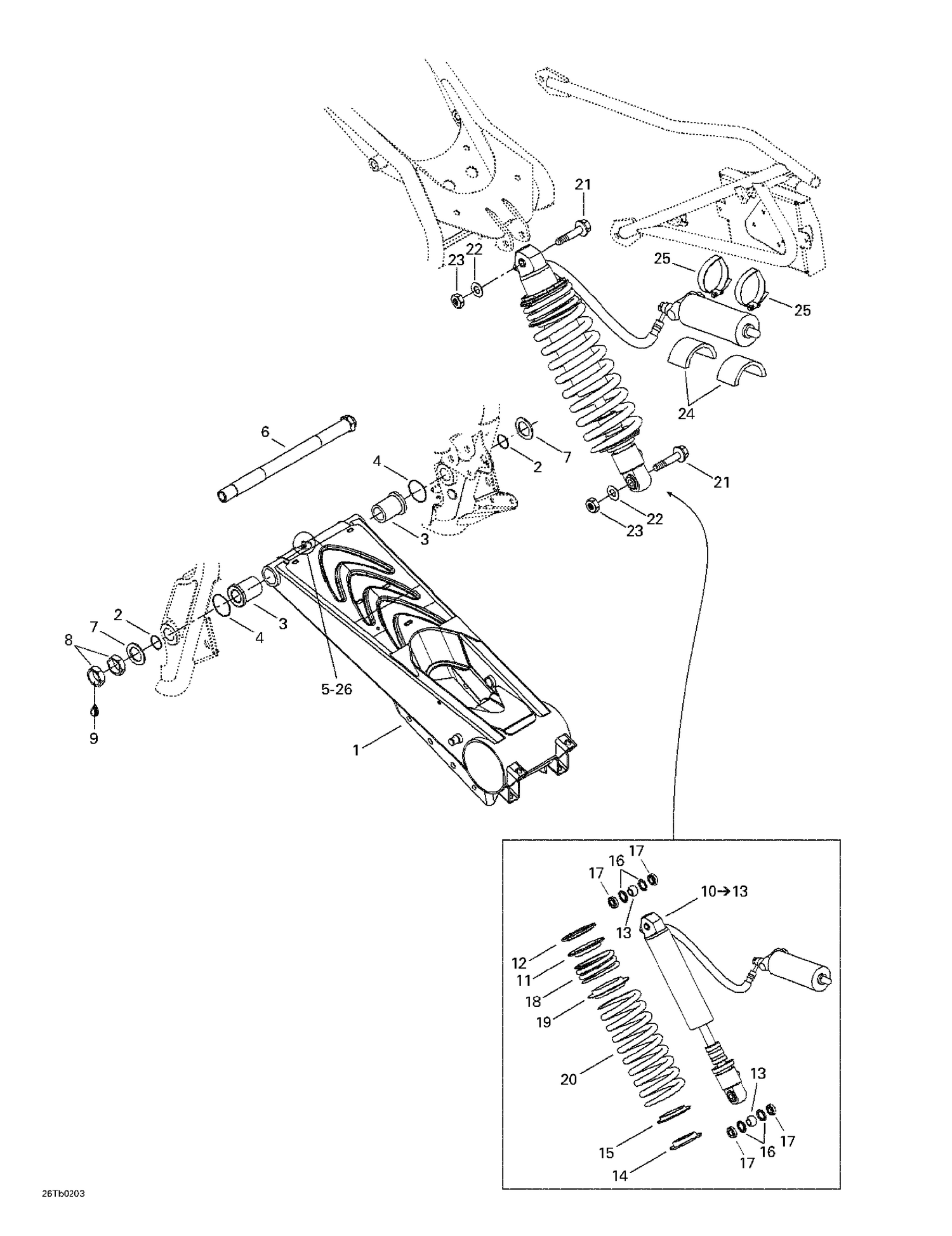

08- Rear Suspension
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 706000134 | Swing Arm |
| 2 | 293300074 | O-RING - Call your local BRP dealership |
| 3 | 706000089 | Cushion |
| 4 | 293300068 | O-Ring |
| 5 | 408200700 | Grease Fitting |
| 6 | 706000102 | PIVOT BOLT - Call your local BRP dealership |
| 7 | 293050003 | WASHER - Call your local BRP dealership |
| 8 | 250100009 | JAM NUT M20 - Call your local BRP dealership |
| 9 | 293800060 | Loctite 243, 10 ml |
| 11 | 706000062 | SHOCK SPRING STOPPER - Call your local BRP dealership |
| 12 | 706000082 | STOPPER RING - Call your local BRP dealership |
| 13 | 706000105 | Ball Joint |
| 14 | 706000061 | SPRING STOPPER - Call your local BRP dealership |
| 15 | 706000060 | SPRING GUIDE - Call your local BRP dealership |
| 16 | 293250111 | SEAL - Call your local BRP dealership |
| 17 | 706000103 | CUSHION - Call your local BRP dealership |
| 18 | 706000059 | Rear Spring (Short) |
| 19 | 706000079 | Spring Spacer |
| 20 | 706000077 | Rear Spring (Long) |
| 21 | 207626046 | Hex. Flange Screw M12 X 60 |
| 22 | 732900048 | Washer |
| 23 | 232521414 | NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership |
| 24 | 293830083 | PROTECTOR - Call your local BRP dealership |
| 25 | 293650118 | Norma Gear Clamp This part replaces 514052859. |
