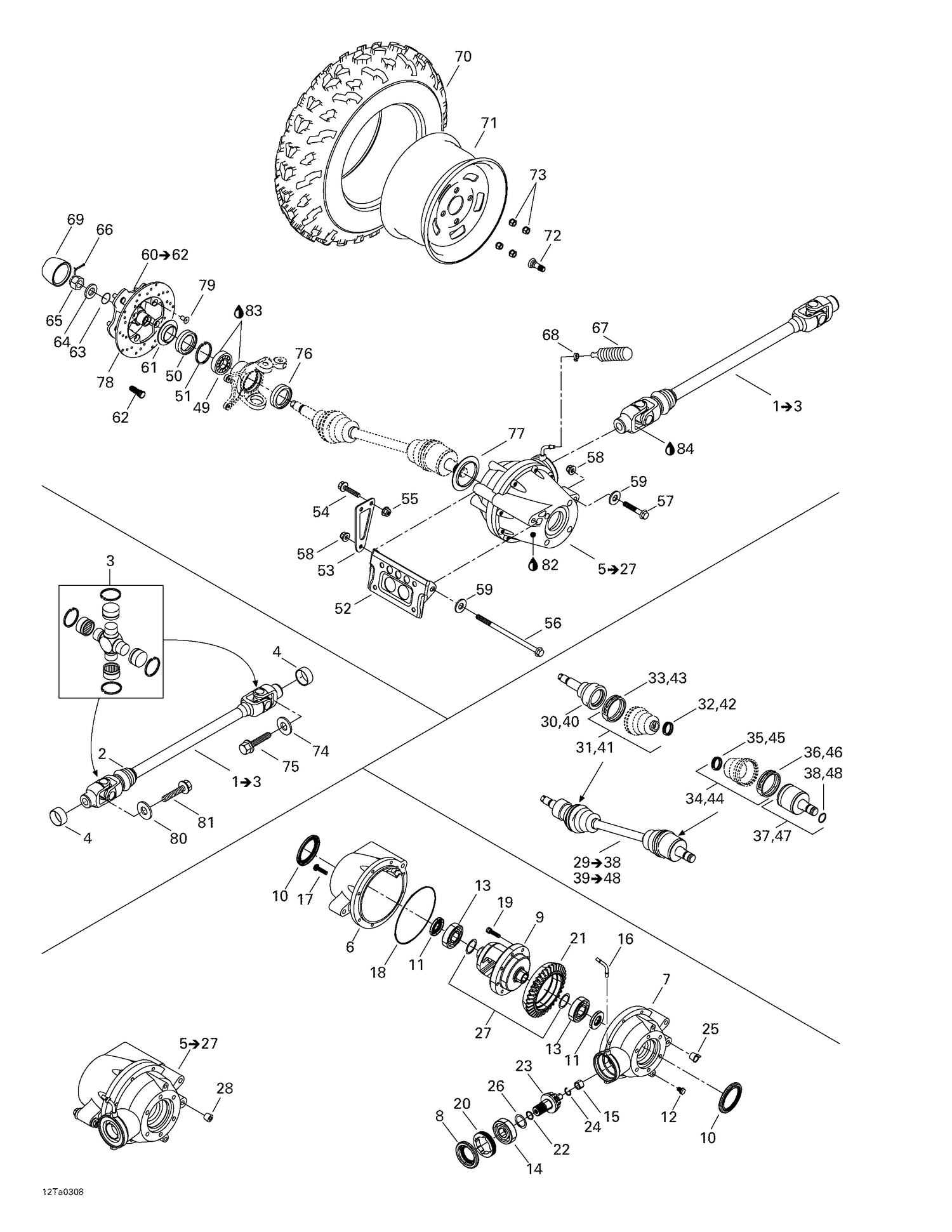

05- Drive System, Front
Parts (80)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 705400051 | PROTECTOR - Call your local BRP dealership |
| 3 | 715900325 | Ens. Croix*U-Joint Cross Kit This part replaces 703500002. |
| 4 | 705400036 | Wear Ring |
| 6 | 705400099 | Front Cover |
| 7 | 705500177 | Differential Carrier |
| 8 | 705401481 | Oil Seal This part replaces 705400027. |
| 9 | 705400404 | DIFFERENTIAL - Call your local BRP dealership This part replaces 705400004. |
| 10 | 705400019 | OIL SEAL - Call your local BRP dealership |
| 11 | 705401618 | Gasket This part replaces 705500255. |
| 12 | 705500894 | Drain Plug This part replaces 705500245. |
| 13 | 705401606 | Ball Bearing This part replaces 705500259. |
| 14 | 705500260 | Ball Bearing |
| 15 | 705500261 | Needle Bearing |
| 16 | 705500893 | VENT VALVE - Call your local BRP dealership This part replaces 705500262. |
| 17 | 705401601 | Screw This part replaces 705500264. |
| 18 | 705500265 | Seal |
| 19 | 705400101 | RING GEAR SCREW - Call your local BRP dealership |
| 20 | 705401603 | Nut This part replaces 705500266. |
| 21 | 705400103 | Crown Gear |
| 22 | 705500267 | O-Ring |
| 23 | 705500268 | GEAR, 10 TEETH - Call your local BRP dealership |
| 24 | 705500269 | RETAINING RING - Call your local BRP dealership |
| 25 | 705500246 | Protector Plug |
| 26 | 705502061 | Pinion Gear Shim 1.67 mm This part replaces 703500049. |
| 27 | 705401604 | Shim This part replaces 703500050. |
| 28 | 705500228 | Fill level plug |
| 30 | 705400093 | CV JOINT - Call your local BRP dealership |
| 31 | 705400127 | Boot Wheel Kit |
| 32 | 705400064 | CLAMP - Call your local BRP dealership |
| 33 | 705400180 | Clamp |
| 34 | 705400126 | Boot Differential Kit |
| 35 | 705400064 | CLAMP - Call your local BRP dealership |
| 36 | 705400181 | Clamp |
| 37 | 705400128 | RH Plunging Joint |
| 38 | 705400042 | CIRCLIP - Call your local BRP dealership |
| 40 | 705400093 | CV JOINT - Call your local BRP dealership |
| 41 | 705400127 | Boot Wheel Kit |
| 42 | 705400064 | CLAMP - Call your local BRP dealership |
| 43 | 705400180 | Clamp |
| 44 | 705400126 | Boot Differential Kit |
| 45 | 705400064 | CLAMP - Call your local BRP dealership |
| 46 | 705400181 | Clamp |
| 47 | 705400129 | LH Plunging Joint |
| 48 | 705400042 | CIRCLIP - Call your local BRP dealership |
| 49 | 293350150 | Ball Bearing This part replaces 705400088. |
| 50 | 705500099 | OIL SEAL - Call your local BRP dealership |
| 51 | 293370019 | Circlip |
| 52 | 705400068 | Bracket (Differential) |
| 53 | 705400069 | RH Diffential Front Bracket |
| 54 | 207682044 | Hex. Flange Screw M8 X 20 |
| 55 | 233281414 | Hex. Flange Elastic Nut M8 |
| 56 | 250000024 | Flange Screw M10 X 200, Scotch Grip |
| 57 | 207506044 | HEX. FLANGED SCREW M10 X 60, SCOTCH GRIP - Call your local BRP dealership |
| 58 | 233101414 | Hex. Flange Nut M10 |
| 59 | 250200003 | Flat Washer |
| 61 | 705500100 | WEAR RING - Call your local BRP dealership |
| 62 | 250300055 | Wheel Stud M10 X 1.25 This part replaces 250300020. |
| 63 | 705500271 | O-RING - Call your local BRP dealership |
| 64 | 250200019 | WASHER - Call your local BRP dealership |
| 65 | 232291413 | Hex. Flange Castellated Nut M18 |
| 66 | 250400036 | Cotter Pin This part replaces 250400016. |
| 67 | 705400552 | Rubber Bellow This part replaces 705400066. |
| 68 | 293750001 | Tie Wrap 94 mm |
| 69 | 705400012 | WHEEL CAP - Call your local BRP dealership |
| 70 | 705402890 | Tire 205 X 80 R12 This part replaces 705400009. |
| 71 | 705400010 | Front Rim |
| 72 | 705400193 | Rim Valve With Cap This part replaces 705400053. |
| 73 | 705400013 | HEX. NUT - Call your local BRP dealership |
| 74 | 211200041 | Washer |
| 75 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 76 | 293250090 | Oil Seal |
| 77 | 705400016 | Wear Ring |
| 78 | 705600168 | Brake disc 205 mm |
| 79 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 80 | 250200014 | Flat Washer M10 |
| 81 | 250000060 | Flange Screw M10 X 16, Scotch Grip |
| 82 | 779221 | JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML This part replaces 293600011. |
| 83 | 293550010 | Synthetic Grease, 400 G |
| 705400072 | Front | Rim 705400072 |
| 705400072 | Jante | Avant 705400072 |
