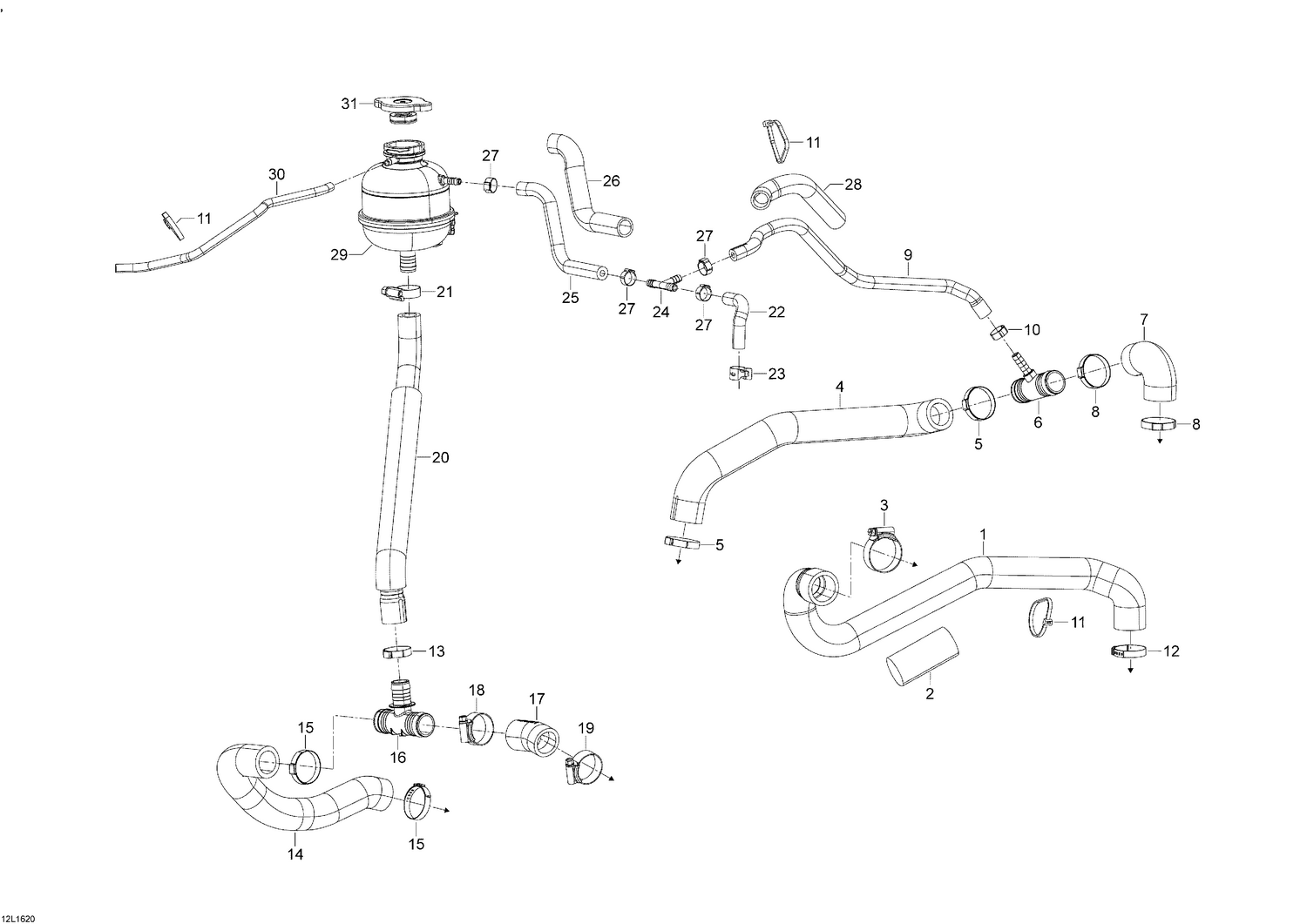

01- Cooling System
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000431 | ENGINE OUTLET HOSE - Call your local BRP dealership |
| 2 | 605356086 | Tubing |
| 3 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 4 | 509000670 | Radiator Hose |
| 5 | 509000529 | Crimp Clamp |
| 6 | 509000510 | T-Fitting |
| 7 | 509001066 | Radiator Hose This part replaces 509000671. |
| 8 | 509000529 | Crimp Clamp |
| 9 | 509000905 | REAR BREATHER HOSE - Call your local BRP dealership |
| 10 | 293650047 | Crimp Clamp, 15.3-706R |
| 11 | 414115200 | Tie-Rap 180 mm |
| 12 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 13 | 293650099 | Crimp Clamp |
| 14 | 509000673 | Radiator Hose |
| 15 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 16 | 509000372 | T-Fitting |
| 17 | 509001067 | Engine Inlet Hose This part replaces 509000675. |
| 18 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 19 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 20 | 509000901 | FILLING HOSE - Call your local BRP dealership |
| 21 | 293650124 | Gear Clamp |
| 22 | 509000904 | BREATHER HOSE - Call your local BRP dealership |
| 23 | 293650170 | Hose Clamp |
| 24 | 293710024 | T-Fitting |
| 25 | 509000902 | BREATHER HOSE - Call your local BRP dealership |
| 26 | 415080000 | Protector Tube |
| 27 | 293650046 | Oetiker Clamp |
| 28 | 415080000 | Protector Tube |
| 29 | 509000802 | Coolant Tank |
| 30 | 276000048 | Polyurethane Hose |
