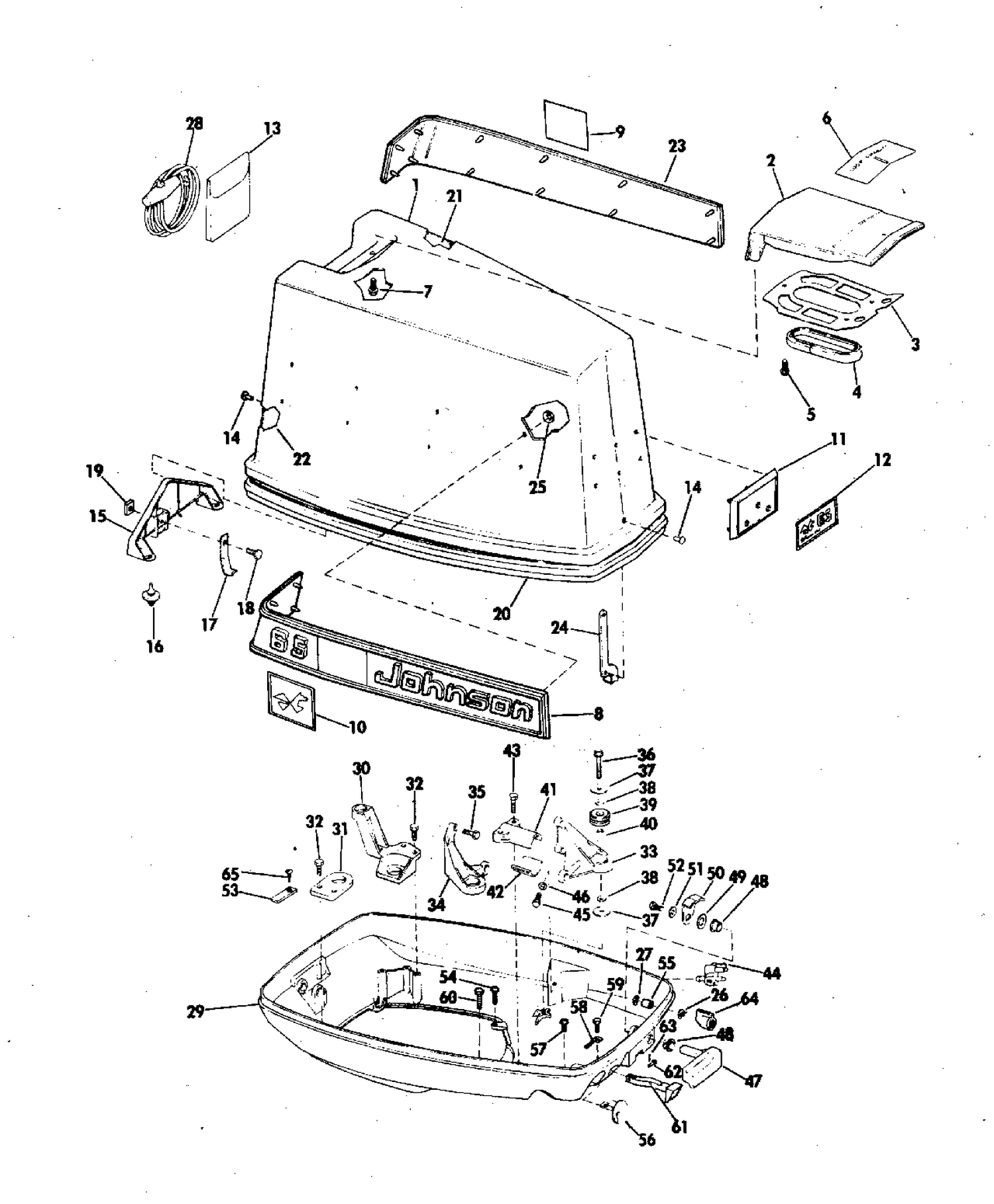

| Ref | Part Number | Description |
|---|
| 1 |
0384930 |
MOTOR COVER ASSY |
| 2 |
0389075 |
TILT HANDLE This part replaces 0315935. |
| 3 |
0315989 |
AIR INLET BAFFLE |
| 4 |
0315984 |
SEAL , Baffle to motor cover |
| 5 |
0316195 |
SCREW |
| 6 |
0317108 |
PLATE, Tilt handle |
| 7 |
0324644 |
SCREW, Solecoid mounting This part replaces 0316194. |
| 8 |
0317033 |
APPLIQUE, Johnson, stbd |
| 9 |
0317110 |
PLATE, Port |
| 10 |
0317111 |
PLATE, Stbd |
| 11 |
0317106 |
APPLIQUE, Front |
| 12 |
0317629 |
TRANSFER, Front |
| 13 |
0314494 |
BAG EMERGENCY STARTER ROPE |
| 14 |
0314135 |
RIVER, Locating bracket |
| 20 |
0329273 |
SEAL, Engine cover This part replaces 0315985. |
| 21 |
0317447 |
SOUND BLANKET, Tip |
| 23 |
0317032 |
APPLIQUE, Johnson, port |
| 24 |
0323233 |
HOOK, Front This part replaces 0315953. |
| 27 |
0316542 |
SPRING WASHER |
| 28 |
0378347 |
CORDE DE LANCEUR |
| 29 |
0317200 |
LOWER MOTOR COVER |
| 30 |
0317290 |
BRACKET, Port, rear |
| 31 |
0317291 |
BRACKET, Starboard, rear |
| 32 |
0300646 |
VIS, ancrage |
| 33 |
0313839 |
BRACKET, Cover, port |
| 34 |
0313840 |
BRACKET, Cover, starboard |
| 35 |
0303459 |
ECREW,Exhaust cover,1-1/2"long |
| 36 |
0308995 |
SCREW, Front mount |
| 38 |
0329241 |
RONDELLE This part replaces 0306482. |
| 39 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 40 |
0302406 |
SLEEVE |
| 41 |
0314940 |
CLAMP, Cable |
| 42 |
0314939 |
GUIDE |
| 44 |
0393334 |
CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 45 |
0306419 |
SCREW |
| 47 |
0384338 |
HANDLE & SHAFT ASSY. |
| 52 |
0552062 |
SCREW, Clamp |
| 53 |
0206268 |
SPRING, Handle detent |
| 54 |
0316657 |
SCREW, Cov mtg, front port |
| 55 |
0316201 |
BUSHIGN,Slow speed shaft |
| 56 |
0313888 |
RETAINER, Throttle cable |
| 57 |
0551706 |
SCREW |
| 58 |
0315920 |
SPRING, Choke knob |
| 60 |
0309021 |
SCREW, Condenser to regulator |
| 61 |
0317589 |
KNOB, Choke control |
| 62 |
0382778 |
PIN, Solenoid This part replaces 0303738. |
| 63 |
0301912 |
COTER PIN |
| 64 |
0314615 |
ADJUSTING KNOB |
| 0385419 |
0385419 |
DECAL SET |
