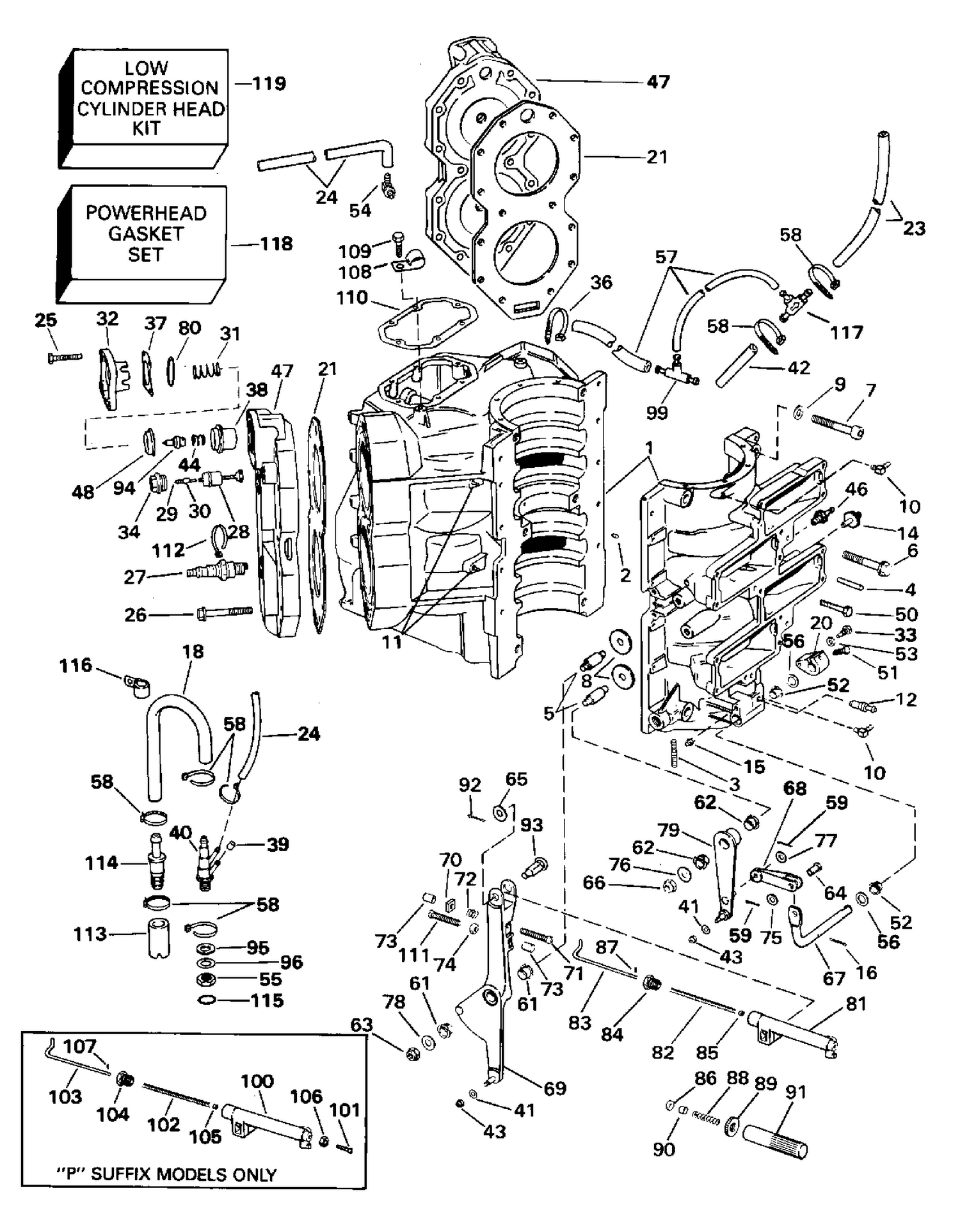

| Ref | Part Number | Description |
|---|
| 1 |
0438796 |
CYLINDER & CRANKCASE ASSY. This part replaces 0437405. |
| 16 |
0330145 |
COTTER PIN |
| 18 |
0913438 |
HOSE, 30 (DEGREE) Tee to check valve |
| 20 |
0326644 |
LEVER, Shift rod |
| 21 |
0340115 |
GASKET, Cylinder head |
| 23 |
HOSE, |
Bearing housing, 15 1/2 in. |
| 24 |
0331215 |
HORSE, Elbow to tee |
| 25 |
0306049 |
SCREW |
| 26 |
0322323 |
SCREW |
| 27 |
0437680 |
SPARK PLUG, Champion QL82YC |
| 28 |
0583789 |
TEMPERATURE SWITCH, Port |
| 28 |
0584592 |
SWITCH, Temperature |
| 32 |
0343141 |
COVER, Thermostat This part replaces 0339207. |
| 33 |
0327590 |
PIN, Shift lever |
| 37 |
0329830 |
GASKET, Cover |
| 40 |
0914902 |
ASPIRATOR |
| 41 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 42 |
HOSE, |
Valve lower, 2 1/4 in. |
| 46 |
0392988 |
CHECK VALVE |
| 47 |
0339154 |
CYLINDER HEAD |
| 48 |
0435957 |
DIAPHRAGM |
| 50 |
0554306 |
SCREW, Cyl. to crankcase |
| 51 |
0328695 |
CLAMP, Engine cable |
| 52 |
0312708 |
BUSHING |
| 56 |
0202026 |
LOCK WASHER, Stud |
| 57 |
HOSE, |
Drain system |
| 58 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 64 |
0340134 |
PIN, Shift lever |
| 65 |
0330995 |
RONDELLE, levier |
| 67 |
0329083 |
LEVER, Shift |
| 68 |
0340133 |
LINK, Shift lever |
| 69 |
0432649 |
THROTTLE LEVER |
| 71 |
0334219 |
SCREW |
| 73 |
0318660 |
BUMPER, Screw, throttle stop |
| 79 |
0433481 |
SHIFT ARM |
| 81 |
0432095 |
LINK ASSY., Spark advance |
| 83 |
0334313 |
ROD, Spark advance link |
| 86 |
0334311 |
STOP, Adjustment |
| 88 |
0334312 |
SPRING, Adjustment housing |
| 89 |
0334314 |
LOCKNUT, Housing |
| 90 |
0334315 |
GUIDE, Spring |
| 91 |
0334316 |
HOUSING, Adjustment |
| 92 |
0330145 |
COTTER PIN |
| 93 |
0328636 |
PIN, Advance link |
| 94 |
0436195 |
ENSEMBLE THERMOSTAT |
| 95 |
0122220 |
SEAL |
| 96 |
0317936 |
WASHER |
| 99 |
0325569 |
T, amorçage |
| 100 |
0396667 |
LINK ASSY., Spark advance |
| 111 |
0334220 |
SCREW, CPS bracket |
| 113 |
0913439 |
HOSE, Aspirator |
| 114 |
0986534 |
CHECK VALVE, Aspirator |
| 115 |
0915209 |
O-RING, Aspirator |
| 117 |
0394892 |
CHECK VALVE ASSY. |
| 118 |
0432570 |
POWERHEAD GASKET SET |
