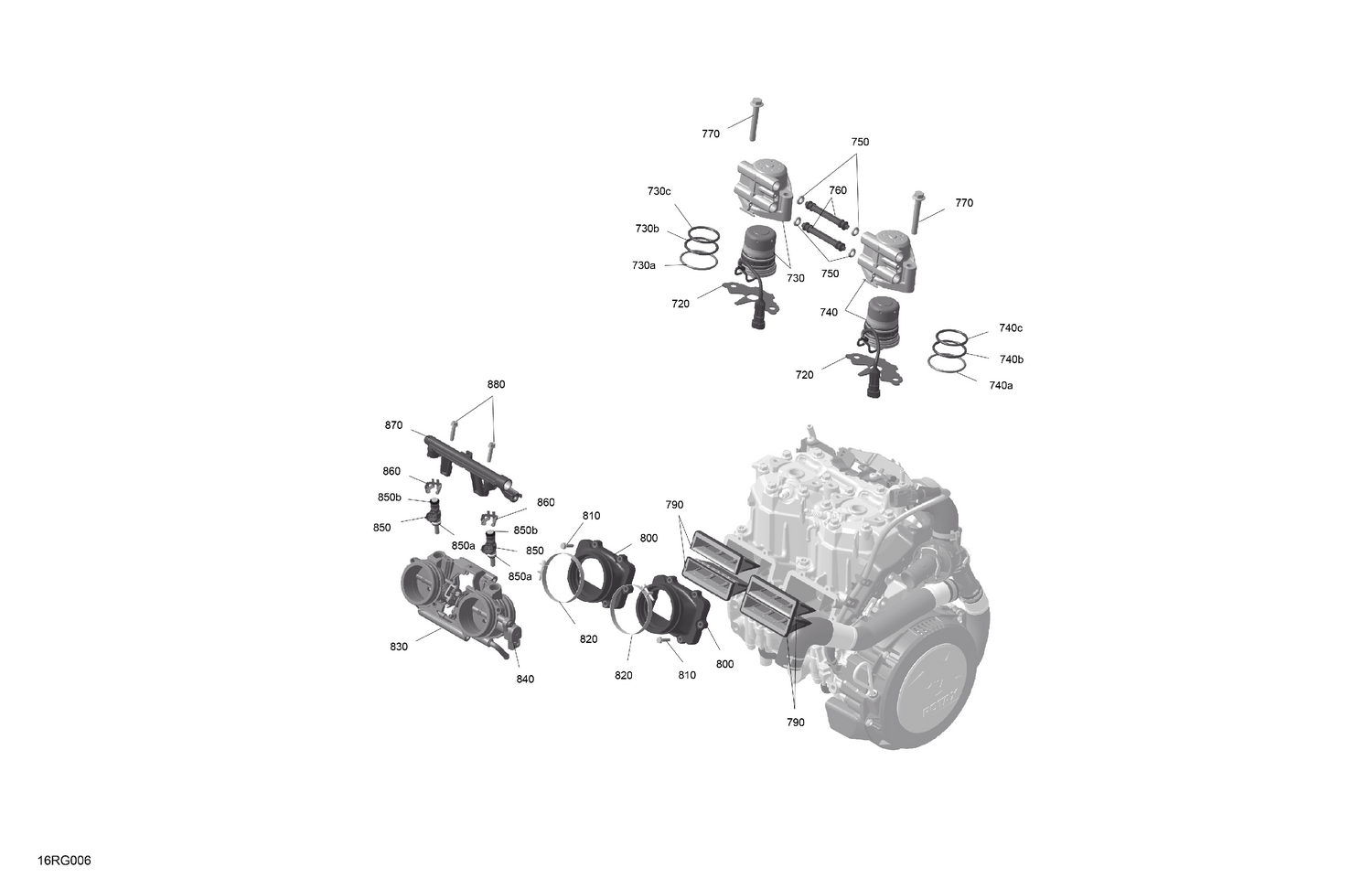

01- ROTAX - Electronic Fuel Injection
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 720 | 420430057 | Isolating Plate |
| 730a | 415129497 | Crush Ring |
| 730b | 415129498 | O-Ring |
| 730c | 415129499 | O-Ring |
| 740a | 415129497 | Crush Ring |
| 740b | 415129498 | O-Ring |
| 740c | 415129499 | O-Ring |
| 750 | 420430775 | O-Ring |
| 760 | 420874190 | Tube |
| 770 | 420840097 | Hex Screw M9 X 60 |
| 790 | 420924797 | Reed Valve Ass'y |
| 800 | 420867390 | Intake Socket |
| 810 | 420841556 | Tapping Screw M5 X 20 |
| 820 | 420251208 | Clamp |
| 830 | 420685793 | NEEDS DESCRIPTION |
| 840 | 420866680 | Throttle Valve Position Sensor |
| 850a | 420831050 | O-Ring |
| 850b | 420430775 | O-Ring |
| 860 | 420853031 | Clip |
| 870 | 420874159 | Fuel Rail |
