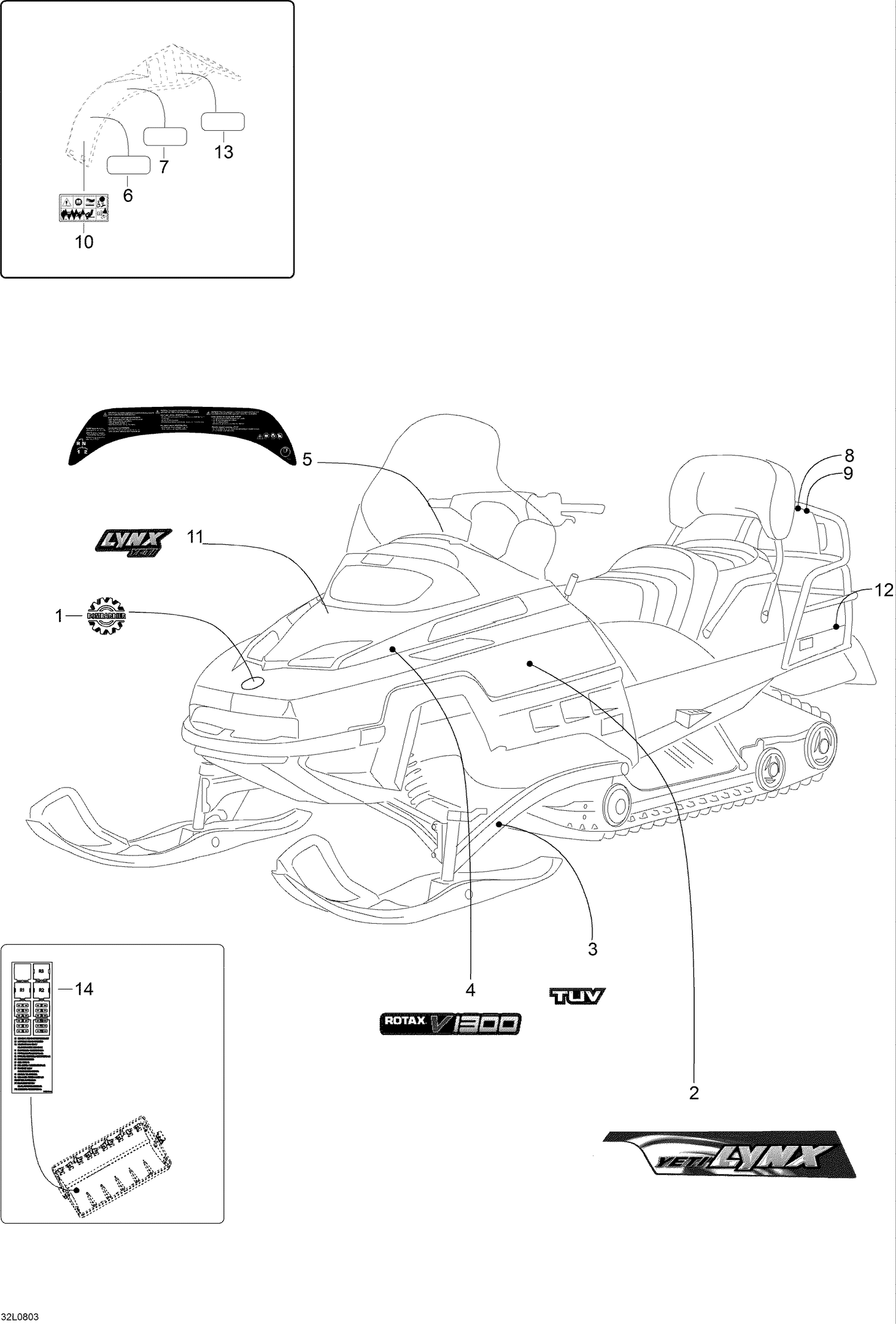

09- Decals
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 516008739 | Logo 68mm "BRP" This part replaces 219902469. |
| 2 | 605355037 | R.H. Hood decal |
| 3 | 605354327 | Swing arm decal TUV |
| 3 | 605355038 | L.H. Hood decal |
| 4 | 605353012 | Decal, Rotax V-1300 |
| 5 | 605351159 | Instruction decal |
| 6 | 5447014 | Warning label |
| 7 | 5447012 | Instruction decal, oil |
| 8 | 5447929 | Instruction decal |
| 9 | 605448799 | PULLING BAR DECAL - Call your local BRP dealership |
| 10 | 605448801 | Warning label |
| 11 | 605355032 | Decal hood |
| 12 | 605253456 | Warning label (pass. seat) |
| 13 | 605454642 | Instruction decal |
