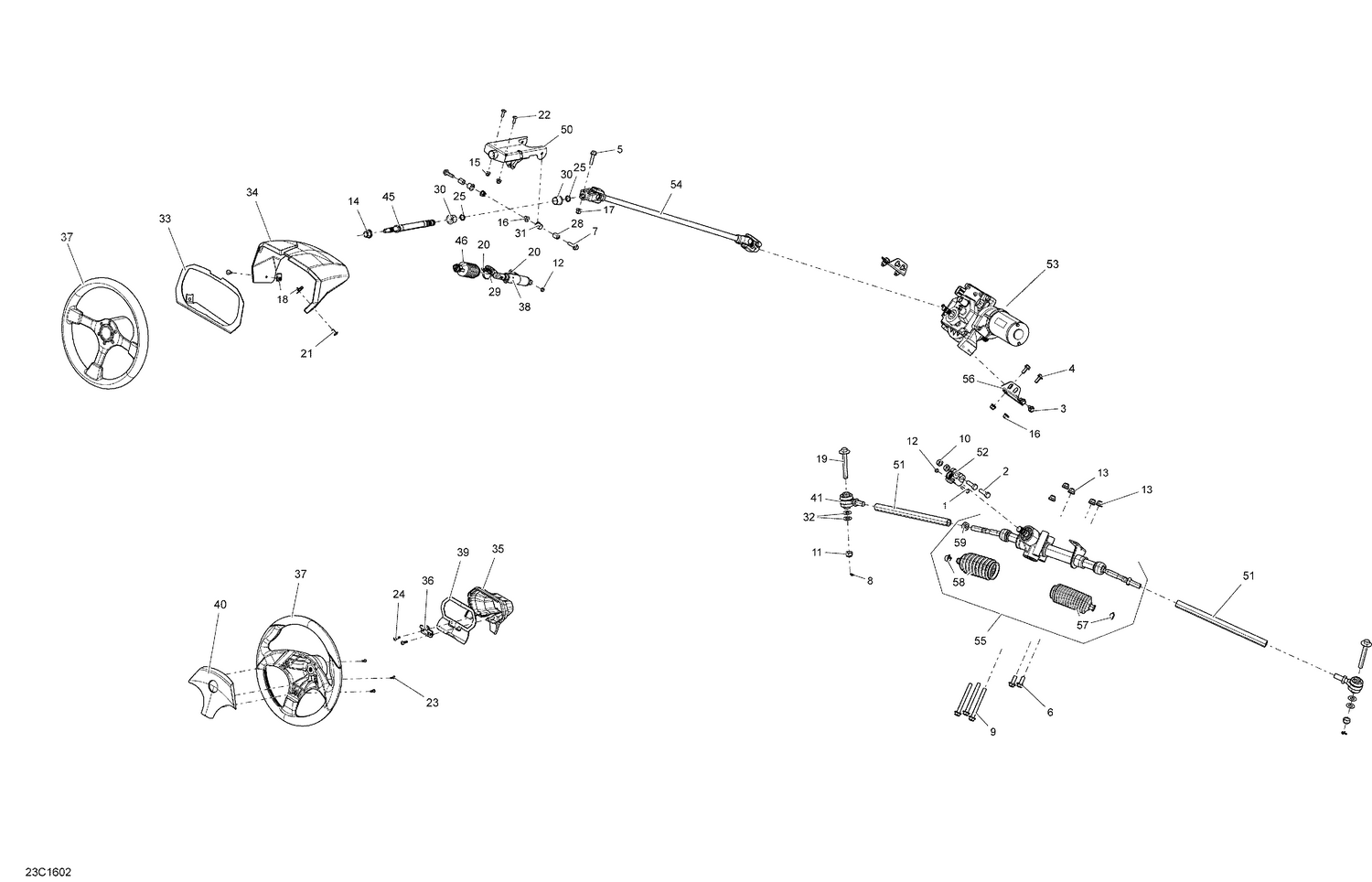

07- Steering
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207063044 | Hex. Screw M6 X 30 |
| 2 | 207103586 | Hex. Screw M10 X 35 |
| 3 | 207581644 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 4 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 6 | 207602546 | Hex. Flange Screw M10 X 25 |
| 7 | 207683044 | Hex. Flange Screw M8 X 30 |
| 8 | 211400017 | Cotter Pin |
| 9 | 230500046 | Hex. Screw M10 X 100, Scotch Grip |
| 11 | 232521416 | Elastic Stop Nut M12 |
| 13 | 233201436 | Hex. Flange Elastic Nut M10 |
| 14 | 233221414 | Hex. Flange Elastic Nut M12 |
| 15 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 16 | 233281414 | Hex. Flange Elastic Nut M8 |
| 17 | 233281416 | Hex. Elastic Flange Nut M8 |
| 19 | 250000657 | Hexagonal Screw M12 X 88 |
| 20 | 250000669 | Socket Head Screw M8 X 16 |
| 22 | 250000722 | Torx Screw M6 X 20 |
| 25 | 293300144 | O-Ring |
| 28 | 293900106 | Bushing |
| 29 | 414115200 | Tie-Rap 180 mm |
| 30 | Not | Available As Spare Part - Cushion |
| 31 | 705600799 | Bushing |
| 32 | 706200281 | Hardened Washer This part replaces 250200086. |
| 38 | 709402506 | Adjustment Cylinder This part replaces 709400656. |
| 41 | 709401125 | Ball Joint |
| 45 | 709401167 | Steering Shaft |
| 46 | 709401232 | Boot Tube Side |
| 50 | 709401391 | Painted Steering Wheel Support |
| 57 | 715900236 | Boot Kit, Tube Side |
| 58 | 715900235 | Boot Kit, Pinion Side |
