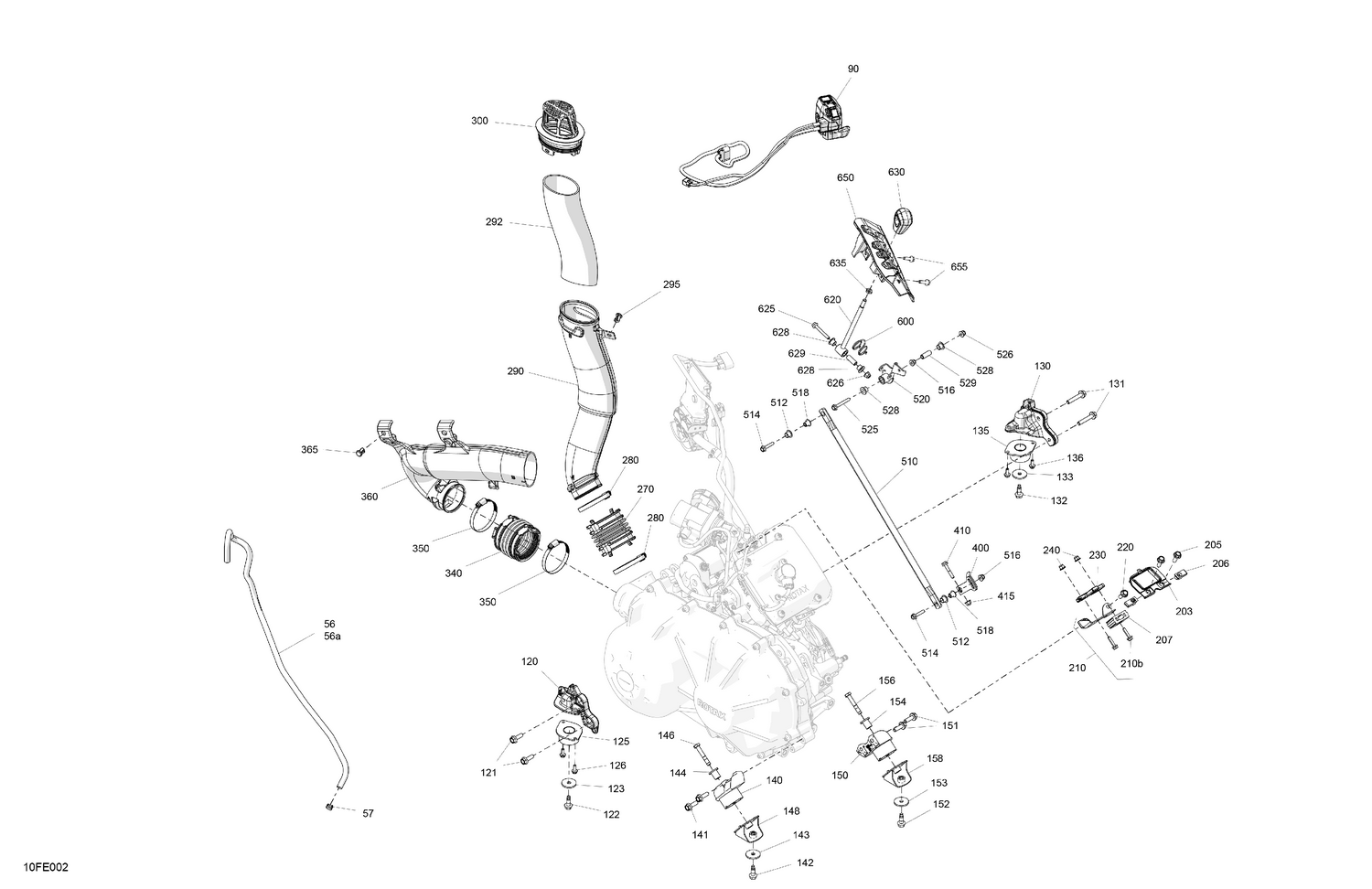

02- Engine - System
Parts (69)
| Ref | Part Number | Description |
|---|---|---|
| 56a | 219704534 | Hose 6.35MM ID |
| 57 | 414415200 | Spring Clamp |
| 90 | 707003186 | Hand Lever Accelerator |
| 120 | 707003100 | LH Front Engine Support |
| 121 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 122 | 250001085 | Hex Screw M8 S.Grip |
| 123 | 250200203 | Washer |
| 125 | 512061508 | Vibration Damper |
| 126 | 210261640 | Hex. Flange Screw M6 X 16 |
| 130 | 707003099 | RH Front Engine Support |
| 131 | 207584544 | Hex. Flange Screw M8 X 45, Scotch Grip |
| 132 | 250001085 | Hex Screw M8 S.Grip |
| 133 | 250200203 | Washer |
| 135 | 512061508 | Vibration Damper |
| 136 | 210261640 | Hex. Flange Screw M6 X 16 |
| 140 | 707003102 | Engine Support Ass'y |
| 141 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 142 | 250001085 | Hex Screw M8 S.Grip |
| 143 | 250200203 | Washer |
| 144 | 707003104 | Flanged Bushing |
| 146 | 207285060 | Hex. Screw M8 X 50, Scotch Grip |
| 148 | 707003105 | Support |
| 150 | 707003102 | Engine Support Ass'y |
| 151 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 152 | 250001085 | Hex Screw M8 S.Grip |
| 153 | 250200203 | Washer |
| 154 | 707003104 | Flanged Bushing |
| 156 | 207285060 | Hex. Screw M8 X 50, Scotch Grip |
| 158 | 707003105 | Support |
| 203 | 707003420 | Stopper |
| 205 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 206 | 250100118 | Panel Nut M8 X 1.25 |
| 207 | 707003419 | Rubber Stopper |
| 210b | 207662504 | Hex.Flange Screw M6 X 25 |
| 220 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 230 | 705212811 | Engine Stopper |
| 240 | 233261466 | Hex. Flange Elastic Nut M6 |
| 270 | 707002414 | Duct Fitting |
| 280 | 293650096 | Norma Clamp |
| 290 | 707002797 | CVT Cooling Duct IN |
| 292 | 706600408 | Acoustic Insulation |
| 295 | 293150230 | Tuflok Plastic Rivet |
| 300 | 707002886 | End Piece |
| 340 | 707002573 | Duct Fitting |
| 350 | 293650091 | Norma Clamp |
| 360 | 707003572 | CVT Cooling Duct OUT |
| 365 | 293150230 | Tuflok Plastic Rivet |
| 400 | 707002505 | Clutch Lever |
| 410 | 207663544 | Hex. Flange Screw M6 X 35 |
| 415 | 233261466 | Hex. Flange Elastic Nut M6 |
| 510 | 707003444 | Link Rod |
| 512 | 707003072 | Flanged Bushing |
| 514 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 516 | 233261466 | Hex. Flange Elastic Nut M6 |
| 518 | 707002672 | Flanged Bushing |
| 520 | 707002809 | Clutch Lever |
| 525 | 207664554 | Hex. Flange Screw |
| 526 | 233261466 | Hex. Flange Elastic Nut M6 |
| 528 | 707003072 | Flanged Bushing |
| 529 | 707002803 | Bushing |
| 600 | 707002804 | Torsion Spring |
| 620 | 707002805 | Gearshift Lever |
| 625 | 207664554 | Hex. Flange Screw |
| 626 | 233261466 | Hex. Flange Elastic Nut M6 |
| 628 | 707003072 | Flanged Bushing |
| 629 | 707002803 | Bushing |
| 630 | 707003177 | Shift Lever Tip |
| 635 | 232180491 | Hex. Jam Nut M8 |
| 650 | 707003665 | Shift Lever Grille This part replaces 707002808. |
