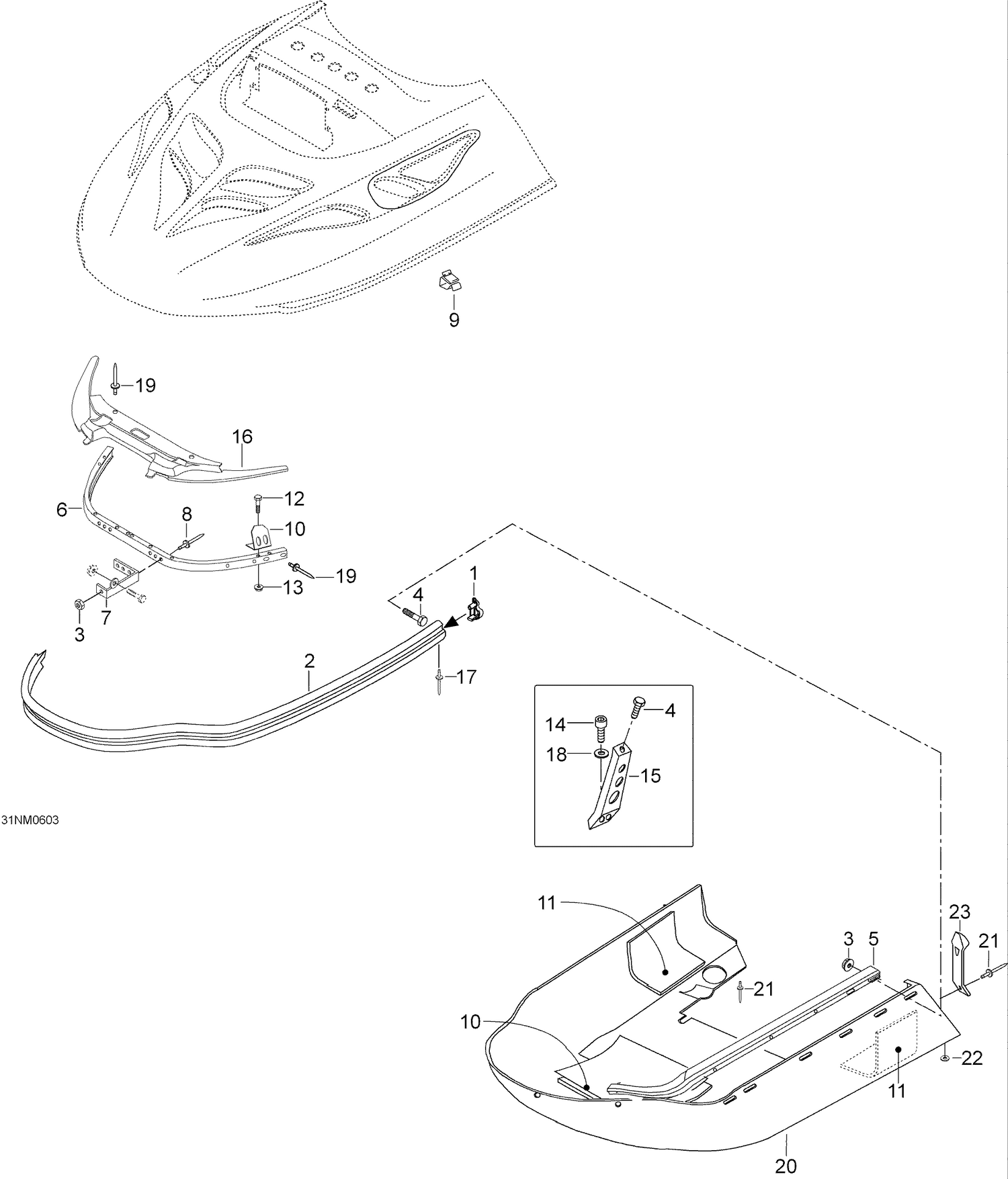

| Ref | Part Number | Description |
|---|
| 1 |
549096L |
Bumper Cap L.H. - Call your local BRP dealership |
| 1 |
549096R |
Plug R.H. |
| 2 |
5242798 |
Bumper |
| 3 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 4 |
40078 |
SCREW M6 x 22 DIN933m8.8Zne(1=10pcs - Call your local BRP dealership |
| 5 |
5242803 |
Guide side L.H. |
| 5 |
5242804 |
Guide RH - Call your local BRP dealership |
| 7 |
5342234 |
Hinge R.H. |
| 7 |
5342345 |
Hinge L.H. |
| 8 |
36083 |
Rivet |
| 9 |
414227300 |
Clip |
| 10 |
5443217 |
Guide, short |
| 11 |
414631900 |
Screw M5 x 16 |
| 12 |
40247 |
Elastic flanged nut M5 |
| 13 |
233251434 |
Flanged Elastic Nut M5 This part replaces 33062. |
| 14 |
40332 |
Socket head screw M6 x 16 |
| 15 |
5342509 |
Support for bumper - Call your local BRP dealership |
| 16 |
605252352 |
COVER - Call your local BRP dealership |
| 17 |
36097 |
Rivet Profix 4.0x13 Al musta(1=50pcs) - Call your local BRP dealership |
| 18 |
20052 |
Lock washer A6 |
| 19 |
36036 |
Rivet |
| 20 |
605152653 |
Bottom pan |
| 21 |
36037 |
Rivet |
| 22 |
20008 |
Washer A5,3 |
