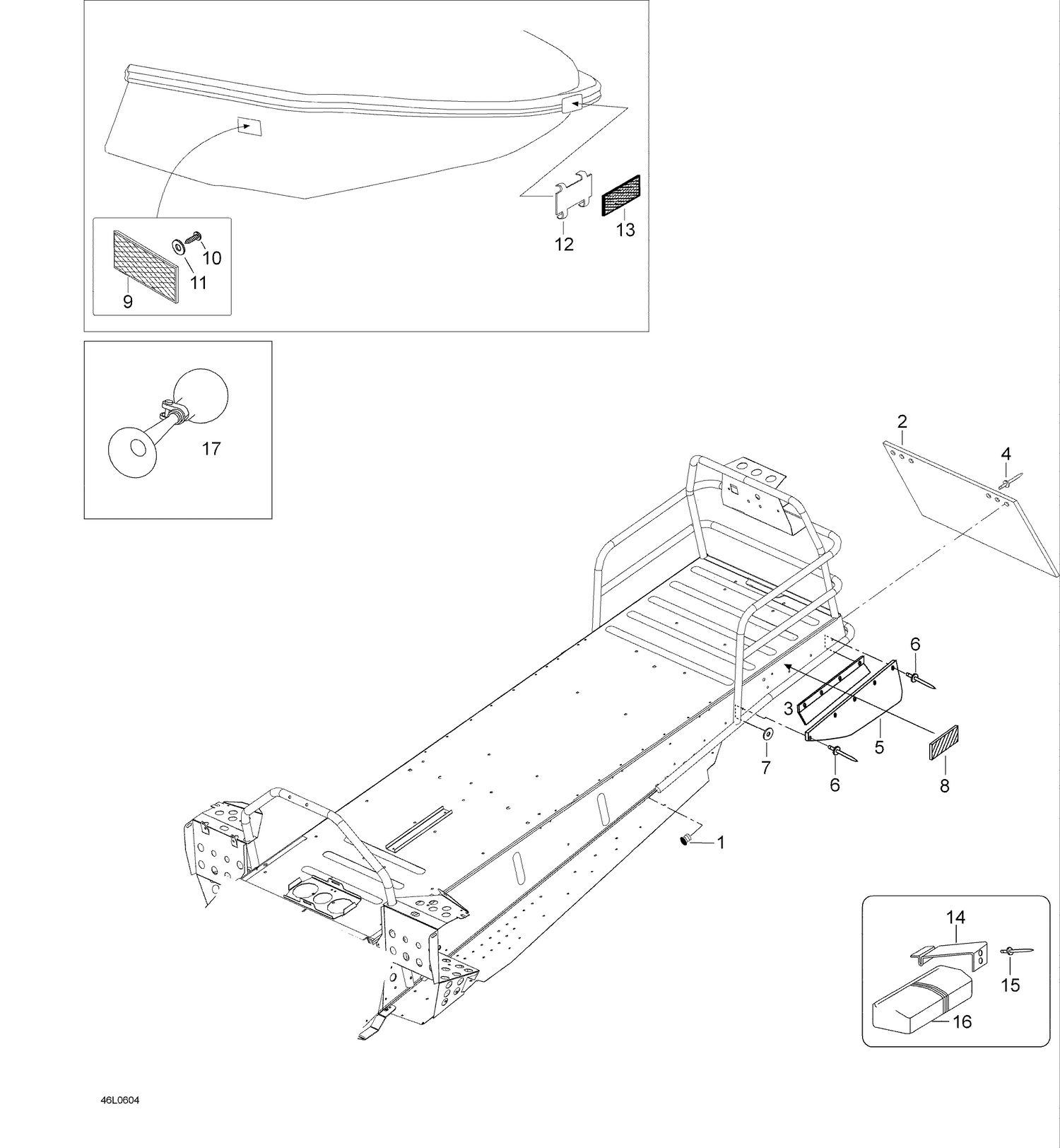

| Ref | Part Number | Description |
|---|
| 1 |
28136 |
Plug |
| 2 |
535437 |
Snow guard |
| 3 |
5340532 |
Side Snow Guard Guide - Call your local BRP dealership |
| 4 |
36036 |
Rivet |
| 5 |
5142828 |
Snow guard, side |
| 6 |
36097 |
Rivet Profix 4.0x13 Al musta(1=50pcs) - Call your local BRP dealership |
| 7 |
20037 |
Washer A4,3 |
| 8 |
21121 |
REFLECTOR (YELLOW) - Call your local BRP dealership |
| 9 |
414510200 |
REFLECTOR, AMBER - Call your local BRP dealership |
| 10 |
40070 |
Slot sc. M5 x 10DIN7985m4.6Zne(1=10pcs) - Call your local BRP dealership |
| 11 |
20018 |
Serrated lock washer A5,3 |
| 12 |
5440839 |
Bracket |
| 13 |
21060 |
Reflector , Bright |
| 14 |
5344443 |
Spring holder |
| 15 |
36083 |
Rivet |
| 16 |
605350525 |
TOOL KIT - Call your local BRP dealership This part replaces 605350523. |
