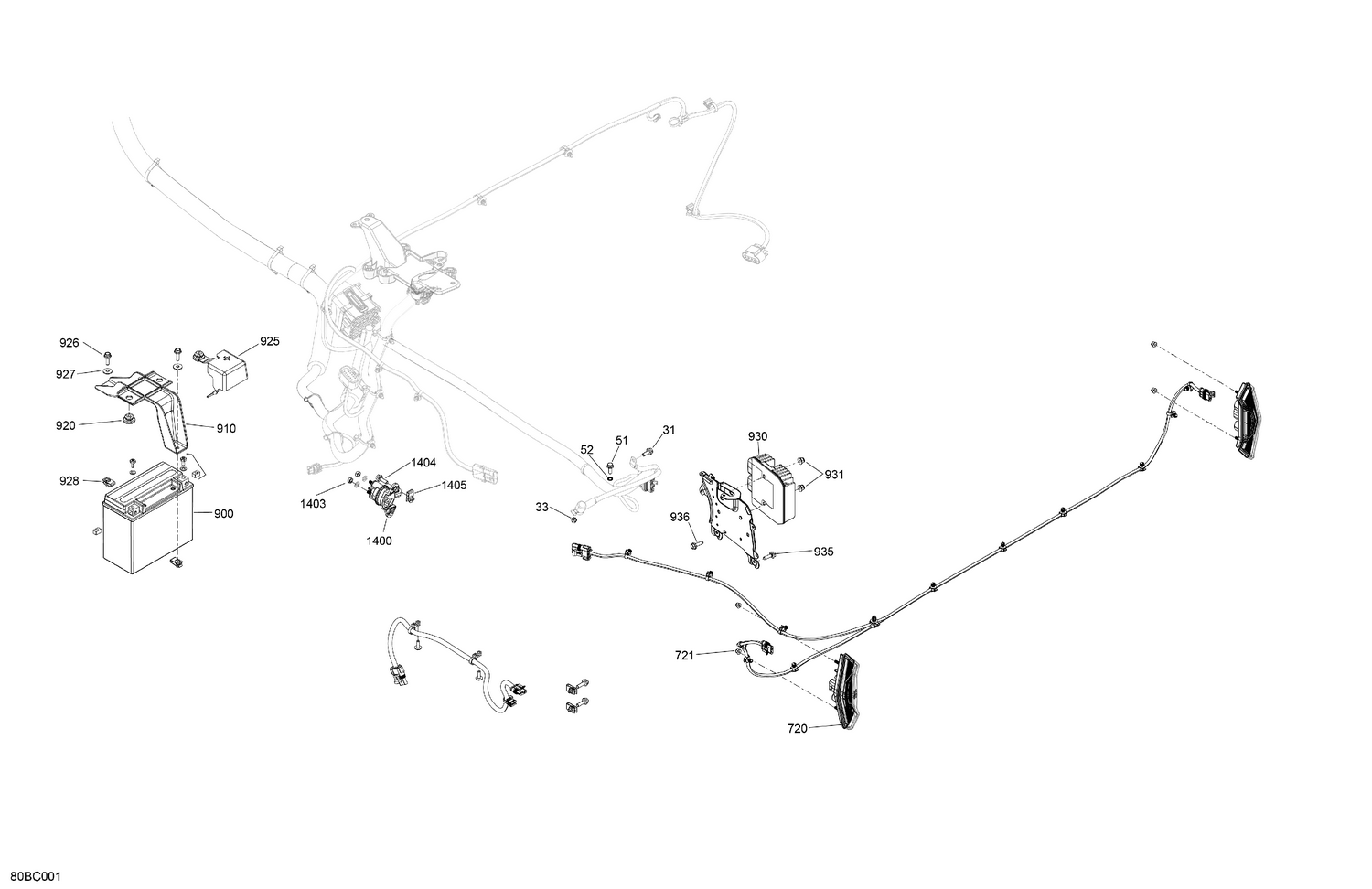

08- Electric - Rear Section
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 31 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 33 | 232561200 | Brass Elastic Stop Nut M6 |
| 51 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 52 | 234461608 | External Serrated Lock Washer 6 mm |
| 720 | 710006633 | Tail Light |
| 721 | 233251494 | Elastic Flange Nut M5 |
| 900 | 296000444 | Battery YUASA YTX20L |
| 910 | 710005673 | Fixation Plate |
| 920 | 705014429 | Rubber Stopper |
| 925 | 710005930 | Battery Cable Cap |
| 926 | 207662054 | Hex. Flange Screw M6 X 20 |
| 927 | 234062670 | Stainless Steel Flat Washer |
| 928 | 250100198 | Panel Nut M6 X 1.0 |
| 930 | 710005842 | Voltage Regulator |
| 931 | 233261494 | Hex. Flange Elastic Nut M6 |
| 934 | 710008760 | Rear Accessory Support |
| 935 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 936 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 1400 | 278003012 | Starter Relay |
| 1403 | 232561200 | Brass Elastic Stop Nut M6 |
| 1404 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
