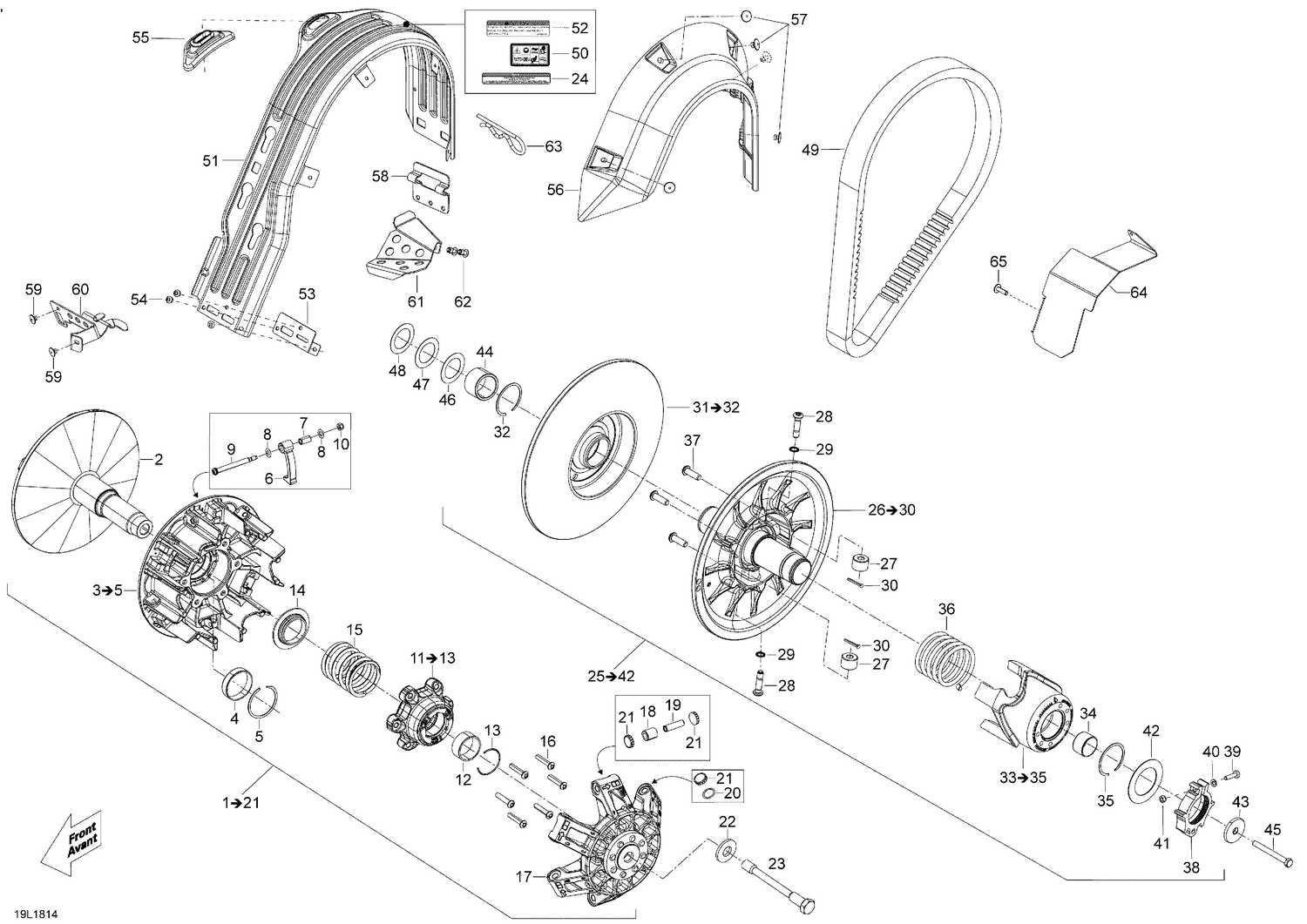

05- Pulley Expedition - 1200 4-TEC
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 417224091 | Fixed Flange Ass'y |
| 4 | 417222758 | Bushing |
| 5 | 293370037 | Circlip |
| 6 | 417224103 | Ramp 749 |
| 8 | 417223660 | Stopper Washer |
| 9 | 417223694 | Ramp Axle |
| 10 | 232551414 | Elastic Stop Nut M5 |
| 11 | 417223650 | Spring Cover Ass'y |
| 14 | 417223752 | Seat Spring |
| 15 | 417224085 | Clutch Spring |
| 16 | 250000580 | Torx Screw M6 X 30 |
| 17 | 417223865 | Governor Cup Ass'y |
| 18 | 417224081 | Roller |
| 19 | 417223257 | Roller Axle |
| 20 | 293300185 | O-Ring |
| 21 | 417223919 | Slider Shoe |
| 22 | 250200144 | Conical Spring Washer M14 |
| 23 | 417300432 | Pulley Drive Bolt |
| 24 | 516005503 | Decal English |
| 26 | 417127433 | Fixed Flange Ass'y |
| 31 | 417127366 | Slider Flange Ass'y |
| 33 | 417127412 | Cam Ass'y |
| 36 | 417127467 | Release Spring |
| 38 | 415129604 | Calibration Ass'y |
| 39 | 205052544 | Socket Screw M5 X 25 |
| 40 | 234051410 | Flat Washer M5 |
| 41 | 232551414 | Elastic Stop Nut M5 |
| 42 | 417127155 | Washer |
| 43 | 517302322 | Strength Washer |
| 44 | 417300453 | Sleeve |
| 45 | 207287544 | Hex. Cap Screw M8 X 75 |
| 46 | 417300252 | Spacer |
| 47 | 417300265 | Spacer |
| 48 | 504112000 | Shim |
| 49 | 417300551 | Drive Belt This part replaces 417300383. |
| 50 | 516003919 | Warning Decal |
| 51 | 417300382 | Belt Guard |
| 52 | 516006900 | Security Label, Belt Guard |
| 53 | 417300380 | Reinforcement |
| 54 | 390909200 | Avex Rivet |
| 55 | 417300381 | Guide |
| 56 | 417300356 | Side Protector |
| 57 | 293150103 | Pop Rivet 3/16" |
| 58 | 417300363 | Belt Guard Bracket |
| 59 | 293150104 | Pop Rivet 3/16" |
| 60 | 417300373 | Belt Guard Bracket |
| 60 | 518325626 | Brake Hose Cover |
| 61 | 293150163 | Rivet Hucklok |
| 62 | 114045200 | Hair Pin |
