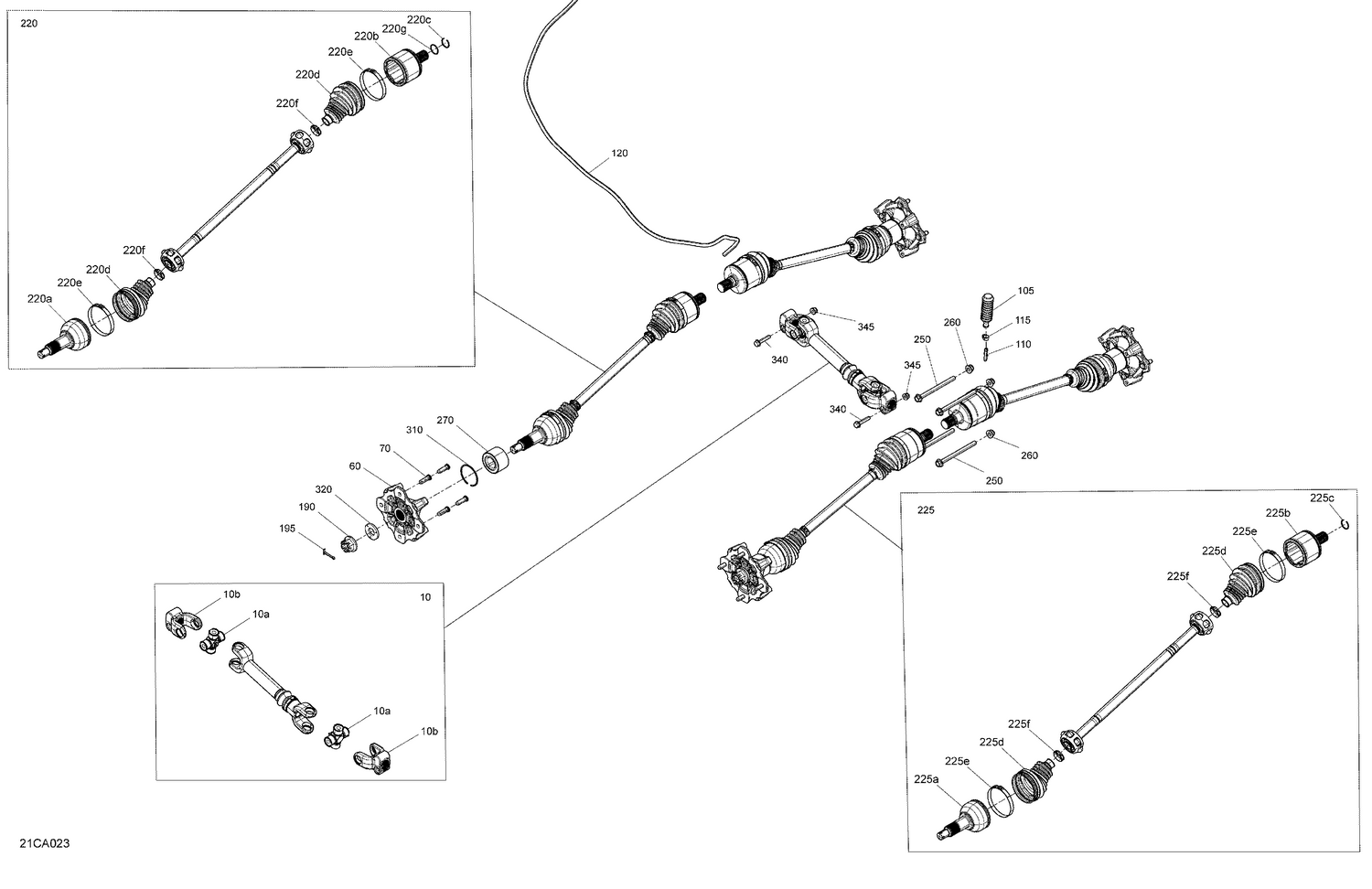

04- Drive - Rear Section - Common Parts
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715900648 | Universal Joint Kit |
| 10b | 715900645 | Yoke |
| 60 | 705502338 | Wheel Hub |
| 70 | 250300055 | Wheel Stud M10 X 1.25 |
| 105 | 705400552 | Rubber Bellow |
| 110 | 293710039 | Straight Fitting |
| 115 | 293650042 | Oetiker Clamp |
| 120 | 219704390 | Was 293830195 Polyurethane Hose |
| 190 | 250100193 | Castle Nut M20 |
| 195 | 250400084 | Cotter Pin |
| 220a | 715900429 | JOINT_CV EXT - Call your local BRP dealership |
| 220b | 715900444 | Plunging Joint |
| 220c | 705501781 | Circlip |
| 220d | 705501864 | Boot Kit |
| 220e | 715900241 | Oetiker Clamp, 82.1 mm |
| 220f | 715900242 | Oetiker Clamp, 27.3 mm |
| 220g | 715900579 | O-Ring |
| 225a | 715900429 | JOINT_CV EXT - Call your local BRP dealership |
| 225b | 715900433 | Plunging Joint |
| 225c | 705501781 | Circlip |
| 225d | 705501864 | Boot Kit |
| 225e | 715900241 | Oetiker Clamp, 82.1 mm |
| 225f | 715900242 | Oetiker Clamp, 27.3 mm |
| 250 | 230603046 | Hex. Flange Screw, M10 X 130 |
| 260 | 233201436 | Hex. Flange Elastic Nut M10 |
| 270 | 293350150 | Ball Bearing This part replaces 293350126. |
| 310 | 293370019 | Circlip |
| 320 | 250200170 | Conical Spring Washer M20 |
| 340 | 250001050 | Hex. Flange Screw M8 X 42 |
