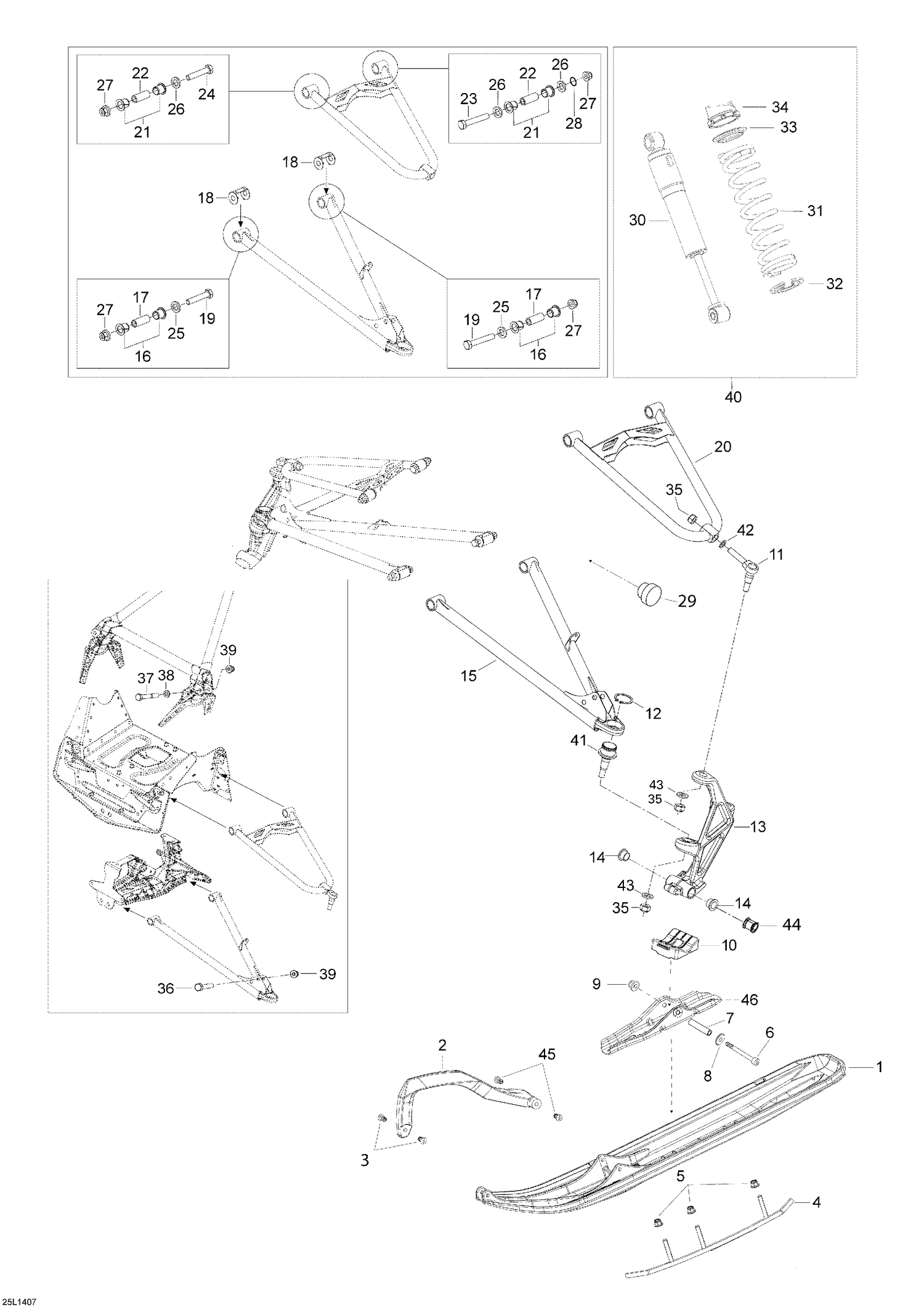

07- Front Suspension And Ski

07- Front Suspension And Ski

Parts (48)

RefPart NumberDescription
1 505073154 Ski BLADE (Black)
2 505072976 Black, Handle
3 505071812 Retainer 17mm long
4 505073492 Runner (3 carb.)
4 605349378 Runner Kit (5 carb.) Opt.
5 233201414 Hex. Flanged Elastic Nut M10
6 250000703 Hex. Screw M10 X 130 This part replaces 230003044.
7 506133300 Axle ski
8 732900049 Washer
9 233201414 Hex. Flanged Elastic Nut M10
10 505073411 Rubber damper
11 505072257 Upper Ball Joint
12 293370035 Circlip
13 505073011 LH Ski Leg
13 505073012 RH Ski Leg
14 505072690 Leg Bushing
15 505072497 RH Lower Arm
15 505072498 LH Lower Arm
16 505073330 Bushing
17 505072209 Bushing This part replaces 505072393.
18 505072634 Wear Plate
19 250001024 Screw Hex. M10 X 70 This part replaces 250000291.
20 505072375 Upper Arm
21 505073329 Bushing
22 505072143 Aluminum Bushing
23 250001023 Screw Hex. M10 X 60 This part replaces 250000290.
24 250001022 Screw Hex. M10 X 50 This part replaces 250000289.
25 503189564 Washer
26 505072392 Washer
27 250100165 Hex. Flanged Elastic Nut M10 This part replaces 250100088.
28 Not Available As Spare Part - O-Ring
29 572091300 Cap
30 505073342 Front Shock
31 503192286 Spring 14 Nm.
32 706200881 Spring Stopper
33 503191872 Spring Guide
34 505073625 Adjustment Cam This part replaces 505070150.
35 250100089 Hex. Elastic Hex. Nut M12
36 207005544 Hex. Screw M10 X 55
37 207006544 Hex. Screw M10 X 65
38 503189564 Washer
39 233201414 Hex. Flanged Elastic Nut M10
40 Not Available As Spare Part - Shock ass'y, ski
41 505073636 Ball Joint This part replaces 505072682.
42 503189276 Washer
43 234021410 Flat Washer 12 mm
44 505071999 Spacer
45 505072133 Retainer 23mm Long
