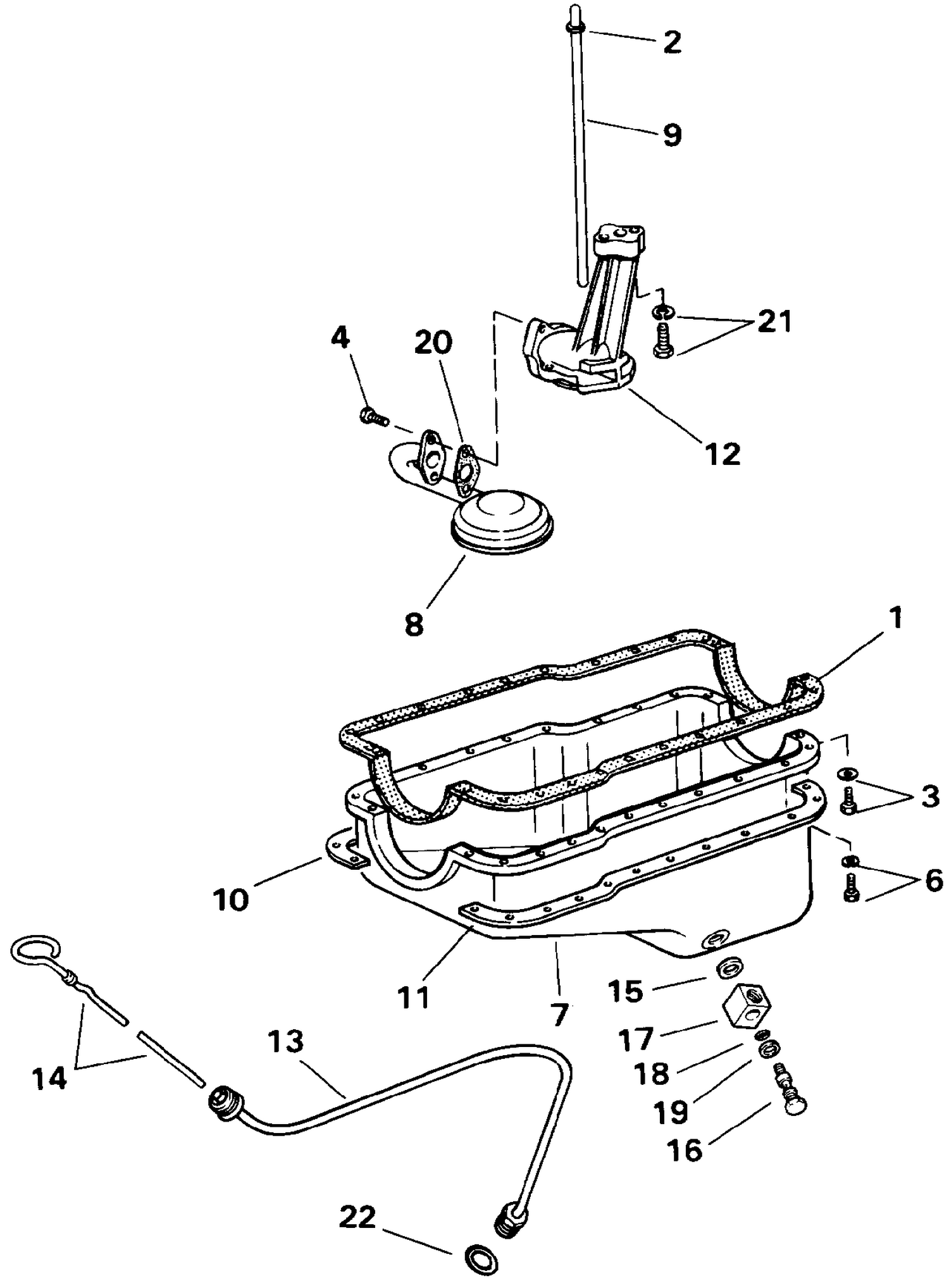

| Ref | Part Number | Description |
|---|
| 1 |
3852822 |
GASKET, Oil pan This part replaces 0913762. |
| 1 |
3852823 |
GASKET, Oil pan This part replaces 0913763. |
| 2 |
3853005 |
RETAINER, Oil pump shaft This part replaces 0914127. |
| 2 |
3853070 |
RETAINER, Oil pump shaft This part replaces 0914200. |
| 3 |
3853006 |
SCREW, Oil pan This part replaces 0914132. |
| 4 |
3853032 |
SCREW, Pickup tube This part replaces 0914161. |
| 6 |
3853033 |
SCREW, Oil pan This part replaces 0914163. |
| 7 |
0982518 |
OIL PAN |
| 7 |
3853798 |
OIL PAN This part replaces 0982520. |
| 8 |
3853069 |
SCREEN, Oil pump This part replaces 0914199. |
| 8 |
3853104 |
OIL PICKUP TUBE This part replaces 0914234. |
| 9 |
3853068 |
SHAFT, Oil pump This part replaces 0914198. |
| 9 |
3853105 |
SHAFT, Oil pump This part replaces 0914235. |
| 10 |
3853071 |
REINFORCEMENT, Oil pan, stbd. This part replaces 0914201. |
| 10 |
3853106 |
REINFORCEMENT, Oil pan, stbd. This part replaces 0914236. |
| 11 |
3853072 |
REINFORCEMENT, Oil pan, port This part replaces 0914202. |
| 11 |
3853107 |
REINFORCEMENT, Oil pan, port This part replaces 0914237. |
| 12 |
3853908 |
OIL PUMP ASSY. This part replaces 0986099. |
| 12 |
3853909 |
OIL PUMP ASSY. This part replaces 0986100. |
| 13 |
3854145 |
TUBE, Oil drain This part replaces 0987641. |
| 13 |
3854170 |
TUBE, Oil drain This part replaces 0987720. |
| 14 |
3850473 |
GAUGE, Oil level This part replaces 0985754. |
| 14 |
3850474 |
GAUGE, Oil level This part replaces 0984526. |
| 15 |
3851981 |
GASKET, Fitting to oil pan This part replaces 0915192. |
| 15 |
3853725 |
SCREW, Retainer, stbd. rear This part replaces 0916182. |
| 16 |
3852609 |
RETAINER, Oil drain This part replaces 0912734. |
| 16 |
3852694 |
RETAINER, Oil drain This part replaces 0913363. |
| 17 |
3855112 |
FITTING, Oil drain This part replaces 0916083. |
| 18 |
3853674 |
O-RING, Oil drain This part replaces 0916106. |
| 20 |
3853267 |
GASKET, Oil screen This part replaces 0914554. |
| 21 |
0914130 |
BOLT, Oil pump to block |
| 0914164 |
3853034 |
PLUG, Oil indicator hole This part replaces 0914164. |
