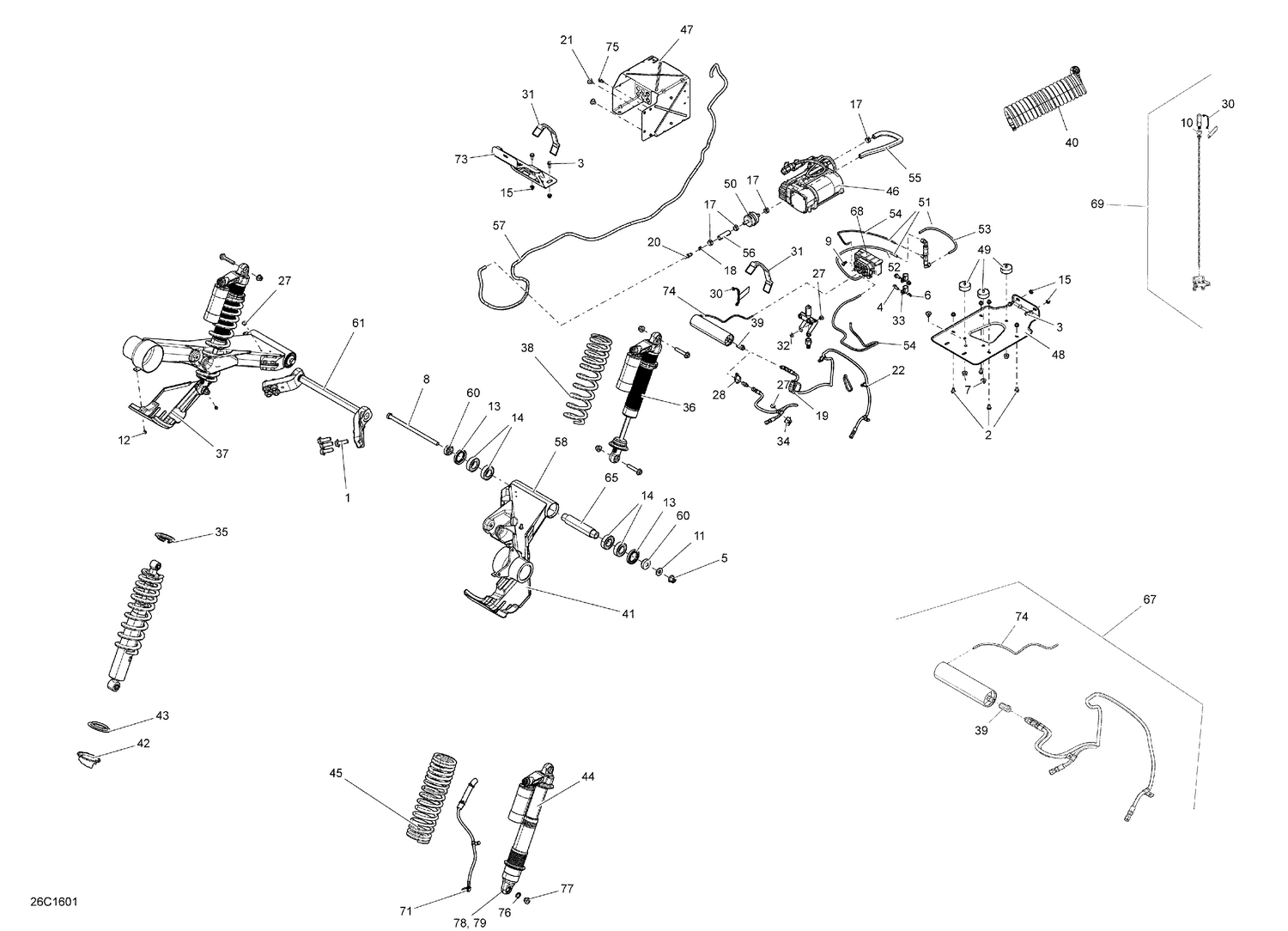

08- Rear Suspension
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207523544 | Hex. Flange Screw M12 X 35, Scotch Grip |
| 5 | 233221416 | Elastic Flange Nut M12 |
| 8 | 250001031 | Hex. Cap Screw M12 X 241 This part replaces 250000515. |
| 11 | 250200120 | Flat Washer M12 |
| 12 | 293150104 | Pop Rivet 3/16" |
| 13 | 293200094 | Seal |
| 14 | 293350115 | Ball Bearing This part replaces 293350055. |
| 27 | 390406500 | Pop Rivet 3/16" |
| 35 | 706000567 | Spring Stopper |
| 37 | 706000630 | LH Joint Protector |
| 41 | 706000814 | RH Joint Protector |
| 42 | 706000910 | Adjustment Ring |
| 43 | 706000911 | Protector Ring |
| 60 | 706001350 | Spacer |
| 65 | 706001529 | Bushing |
