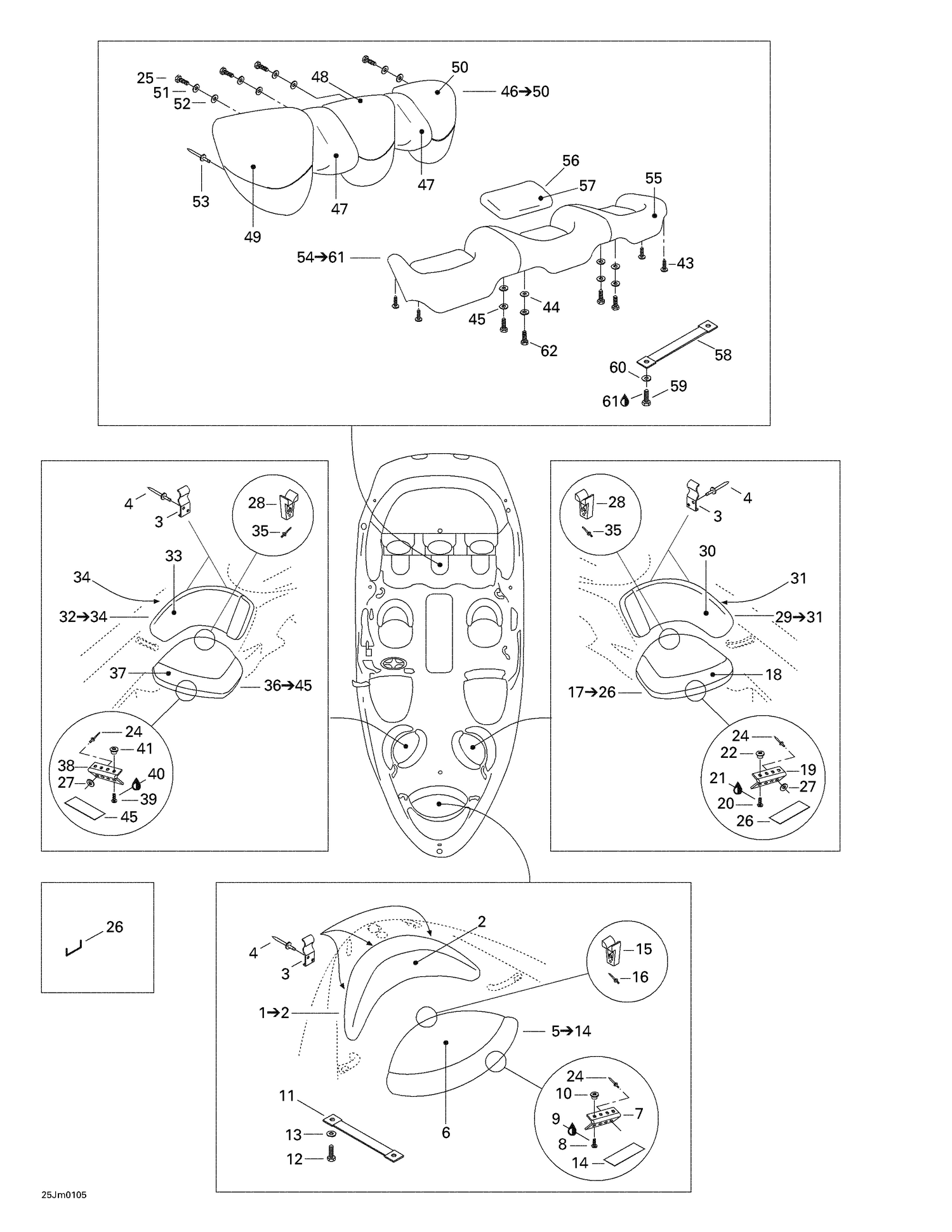

| Ref | Part Number | Description |
|---|
| 2 |
204610688 |
Front Backrest Cover |
| 3 |
269000388 |
SEAT SUPPORT - Call your local BRP dealership |
| 4 |
293150043 |
Pop Rivet 3/16" |
| 6 |
204610989 |
Front Seat ass'y |
| 7 |
204610940 |
Seat Hinge |
| 8 |
204100045 |
SOCKET HEAD SCREW 10-32 X .75 - Call your local BRP dealership |
| 9 |
293800060 |
Loctite 243, 10 ml |
| 10 |
204100044 |
TEE-NUT #10-32 - Call your local BRP dealership |
| 11 |
204610941 |
Front Seat Strap |
| 12 |
241642060 |
Flange Screw K40 X 20 |
| 13 |
234042600 |
Flat Washer 4 mm, Stainless |
| 14 |
204610972 |
Hinge Cover |
| 15 |
204610961 |
Seat Latch |
| 16 |
293150036 |
RIVET_POP 1/8 X ,750 - Call your local BRP dealership |
| 18 |
204610964 |
LH Front Seat Cover |
| 19 |
204610940 |
Seat Hinge |
| 20 |
204100045 |
SOCKET HEAD SCREW 10-32 X .75 - Call your local BRP dealership |
| 21 |
293800060 |
Loctite 243, 10 ml |
| 22 |
204100044 |
TEE-NUT #10-32 - Call your local BRP dealership |
| 23 |
204610972 |
Hinge Cover |
| 24 |
293150043 |
Pop Rivet 3/16" |
| 25 |
207364060 |
Hex. Screw M6 X 40, Scotch Grip |
| 26 |
293730005 |
Staple |
| 27 |
234051600 |
Flat Washer M5, Stainless |
| 28 |
204610961 |
Seat Latch |
| 30 |
204610954 |
Backrest Cover |
| 31 |
219704365 |
Was 293200017 Neoprene Seal |
| 33 |
204610957 |
Backrest Cover |
| 34 |
219704365 |
Was 293200017 Neoprene Seal |
| 35 |
293150036 |
RIVET_POP 1/8 X ,750 - Call your local BRP dealership |
| 37 |
204610971 |
RH Front Seat Cover |
| 38 |
204610940 |
Seat Hinge |
| 39 |
204100045 |
SOCKET HEAD SCREW 10-32 X .75 - Call your local BRP dealership |
| 40 |
293800060 |
Loctite 243, 10 ml |
| 41 |
204100044 |
TEE-NUT #10-32 - Call your local BRP dealership |
| 42 |
204610972 |
Hinge Cover |
| 43 |
293730021 |
Dart |
| 44 |
204100139 |
WASHER-FENDER/S.S. - Call your local BRP dealership This part replaces 204100006. |
| 45 |
234062600 |
Flat Washer M6, Stainless |
| 47 |
204610696 |
Rear Bump Cover |
| 48 |
204610697 |
Backrest Cover (Metalic Quartz) |
| 49 |
204610698 |
RH Backrest Cover (Metalic Quartz) |
| 50 |
204610699 |
LH Backrest Cover (Metalic Quartz) |
| 51 |
234062600 |
Flat Washer M6, Stainless |
| 52 |
234082600 |
Flat Washer 8 mm, Stainless |
| 53 |
293150065 |
RIVET - Call your local BRP dealership |
| 55 |
204610701 |
Rear Seat Cover |
| 57 |
Not |
Available As Spare Part - Rear Seat Cushion Cover |
| 58 |
204610703 |
Rear Seat Strap |
| 59 |
207161660 |
Hex. Screw M6 X 16 |
| 60 |
234062600 |
Flat Washer M6, Stainless |
| 61 |
293800060 |
Loctite 243, 10 ml |
