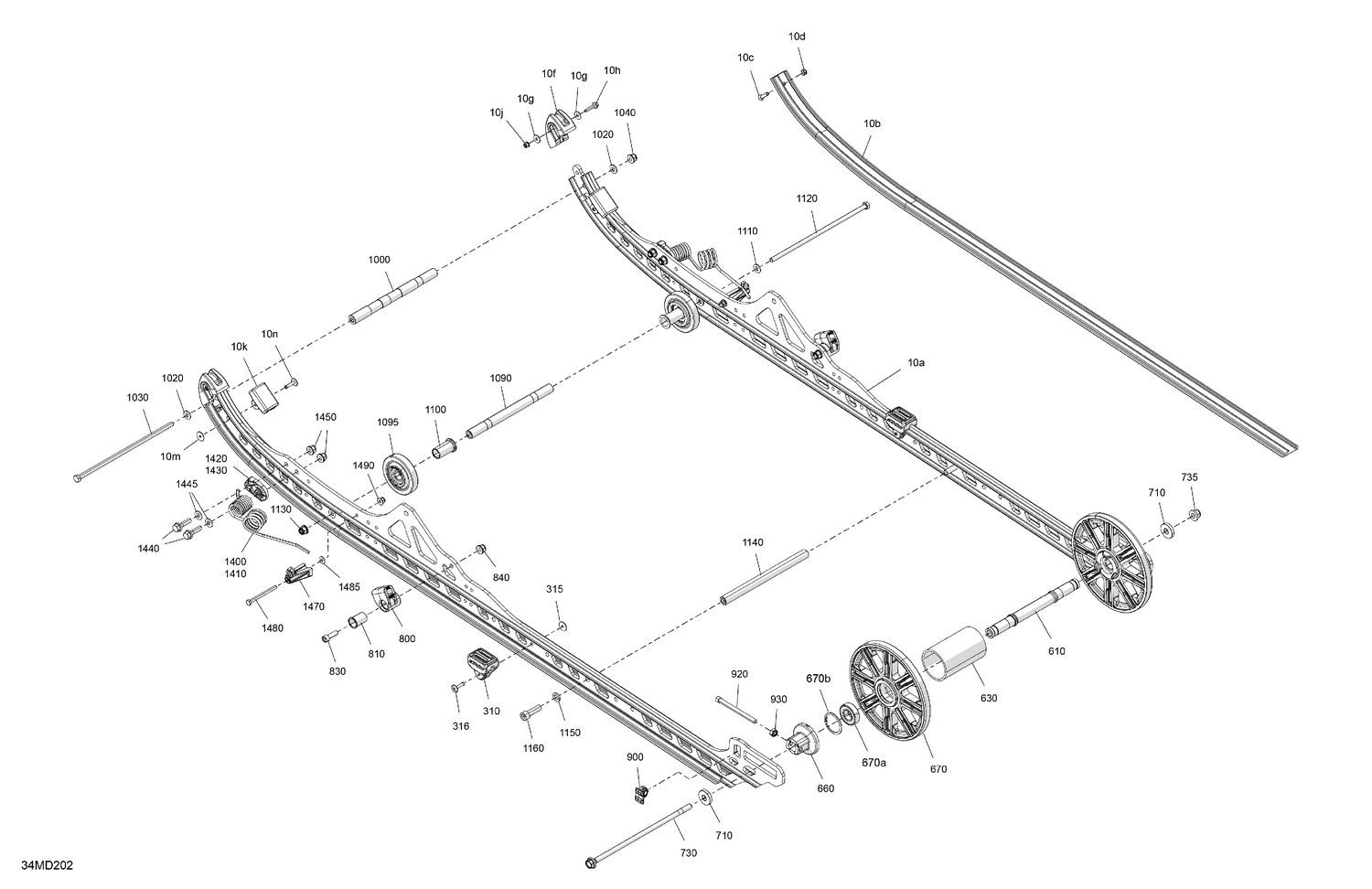

05- Suspension - Rear - Lower Section
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 503196386 | Black, Rail Suspension 165 |
| 10b | 503194254 | Slider 165 |
| 10c | 208562531 | Phillips Screw M6 X 25 |
| 10d | 232561434 | Elastic Stop Nut M6 |
| 10f | 503196874 | Rail Protector |
| 10g | 250200140 | Washer |
| 10h | 207652544 | Hex. Flange Screw M5 X 25 |
| 10j | 233251434 | Flange Elastic Nut M5 |
| 10k | 503190576 | Rubber Stopper |
| 10m | 503191273 | Washer |
| 10n | 293150256 | Rivet Ornit 4.8 X 27.5 |
| 310 | 503196519 | Rubber Stopper |
| 315 | 503191273 | Washer |
| 316 | 293150256 | Rivet Ornit 4.8 X 27.5 |
| 610 | 503196252 | Rear Axle |
| 630 | 503196947 | Socket |
| 660 | 503196246 | Rear Wheel Support |
| 670a | 503190396 | Ball Bearing |
| 670b | 415129371 | Retaining Ring |
| 710 | 503196357 | Washer |
| 730 | 503195748 | Bolt M10 |
| 735 | 233201466 | Flange Elastic Nut M10 |
| 800 | 861805547 | Spring Support Kit |
| 810 | 503196210 | Bushing |
| 830 | 205082554 | Socket Screw M8 X 25 |
| 840 | 233281466 | Elastic Flange Nut M8 |
| 900 | 503194266 | Tensioner |
| 920 | 503194267 | Hex. Cap Screw M8 X 95 |
| 930 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1000 | 503196663 | Axle |
| 1020 | 503192494 | Washer |
| 1030 | 503192440 | Bolt M8 X 248mm |
| 1040 | 233281466 | Elastic Flange Nut M8 |
| 1090 | 503195954 | Pivot Axle |
| 1095 | 503195125 | Black, Wheel Ass'y |
| 1100 | 503194864 | Spacer |
| 1110 | 503192494 | Washer |
| 1120 | 503192440 | Bolt M8 X 248mm |
| 1130 | 233281466 | Elastic Flange Nut M8 |
| 1140 | 503191260 | Axle Strap |
| 1150 | 503192496 | Washer |
| 1160 | 205503554 | Socket Head Screw M10 X 35 |
| 1400 | 503194900 | LH Spring |
| 1410 | 503194901 | RH Spring |
| 1420 | 503194294 | LH Support |
| 1430 | 503194295 | RH Support |
| 1440 | 207683054 | Hex. Flange Screw M8 X 30 |
| 1445 | 503192494 | Washer |
| 1450 | 233281466 | Elastic Flange Nut M8 |
| 1470 | 503196336 | Hook Ass'y |
| 1480 | 207167054 | Hex. Cap Screw M6 X 70 |
| 1485 | 250200039 | Flat Washer |
