| Ref | Part Number | Description |
|---|
| 1 |
0172146 |
LIFTING LEVER ASSY |
| 2 |
0121835 |
BUMPER, Stern |
| 3 |
0121836 |
BUSHING, Lower pivot pin |
| 4 |
0121837 |
BUSHING, Upper pivot pin |
| 5 |
0121838 |
PIN, Lower pivot |
| 7 |
0121839 |
BUSHING Upper pivot pin |
| 8 |
0121840 |
PIN, Pivot, upper |
| 10 |
0307708 |
RONDELLE GROWER |
| 11 |
0121932 |
BAR, Return |
| 12 |
0121842 |
PAD, Bar return |
| 13 |
0121843 |
BOLT, Bar return |
| 14 |
0121844 |
BUSHING, Bar return |
| 15 |
0121845 |
SPACER |
| 16 |
0305573 |
SPRING, Shift universal |
| 18 |
0305496 |
LOCKNUT, Alternator to bracket |
| 20 |
0121846 |
LINK, Reverse lock rd |
| 21 |
0121847 |
POST, Stbd |
| 22 |
0121848 |
BUSHING, Stbd post |
| 23 |
0301967 |
O RING |
| 24 |
0121849 |
CONICAL WASHER, Stbd |
| 25 |
0121850 |
ROD, Tilting shaft |
| 26 |
0304278 |
WASHER |
| 27 |
0121851 |
WASHER, Steel |
| 28 |
0121852 |
POST, Port |
| 29 |
0121853 |
BUSHING, Port post |
| 30 |
0121854 |
SUPPORT, Bracket |
| 34 |
0900696 |
WASHER |
| 37 |
0311847 |
PLATE, Switch |
| 38 |
0382716 |
CABLE ASSEMBLY |
| 40 |
0825886 |
TERMINAL This part replaces 0510541. |
| 47 |
0173946 |
HYDRAULIC PUMP This part replaces 0172513. |
| 49 |
0121986 |
O RING ASSEMBLY |
| 52 |
0172158 |
VALVE BODY & GEARCASE ASSY |
| 53 |
0172409 |
GASKET PKG |
| 55 |
0122461 |
VALVE BODY |
| 0172070 |
0172070 |

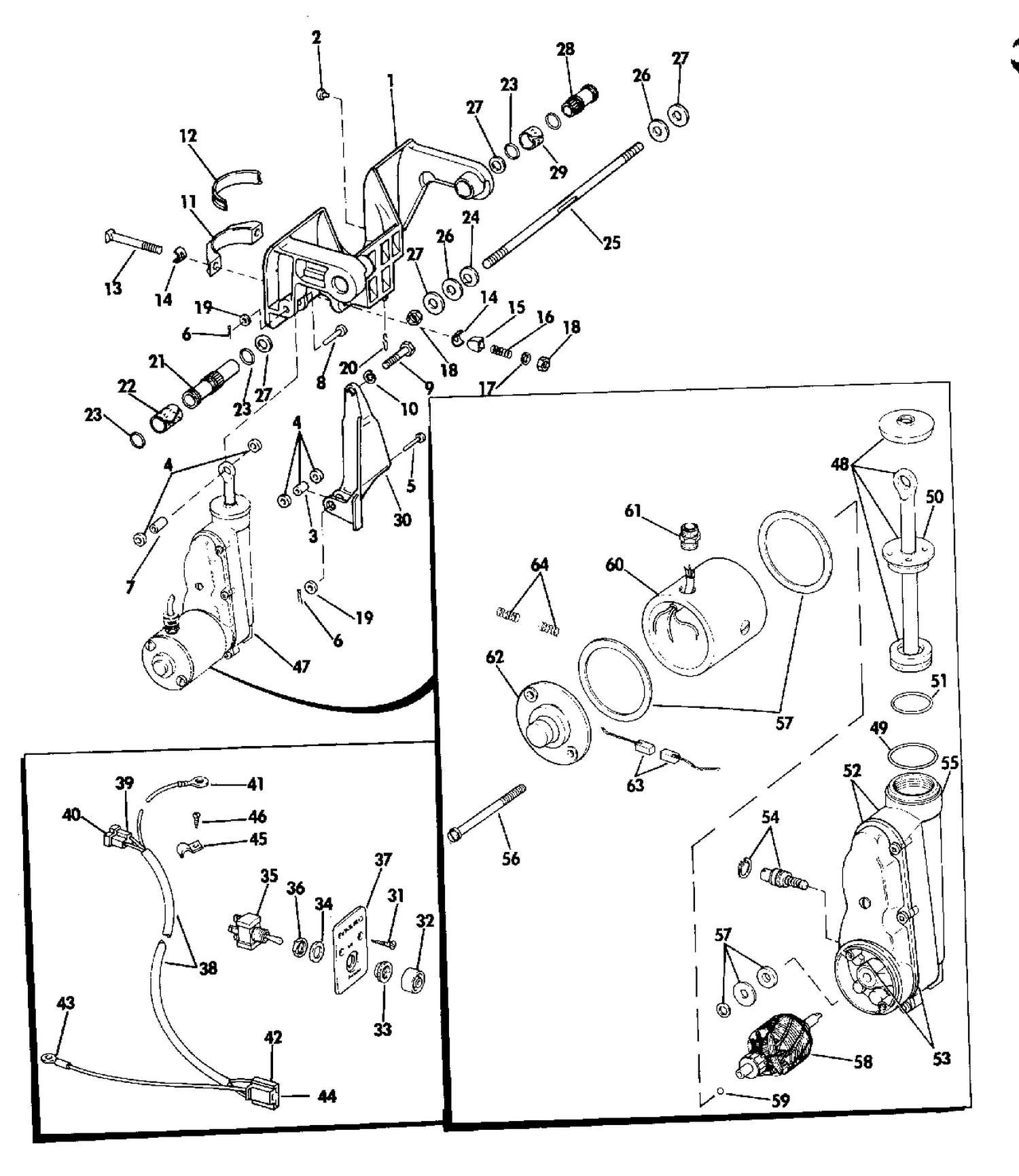

POWER TILT KIT, 40 h p |
| 0172588 |
0173944 |
MOTOR ASSEMBLY This part replaces 0172588. |
