Home / BRP / 2007 / MX Z / MX Z XRS 600 HO SDI, 2007 000MA7A00 000MA7B00 000MA7C00 000ME7A00 000ME7B00 000ME7C00 / 10- Steering Wiring Harness 600

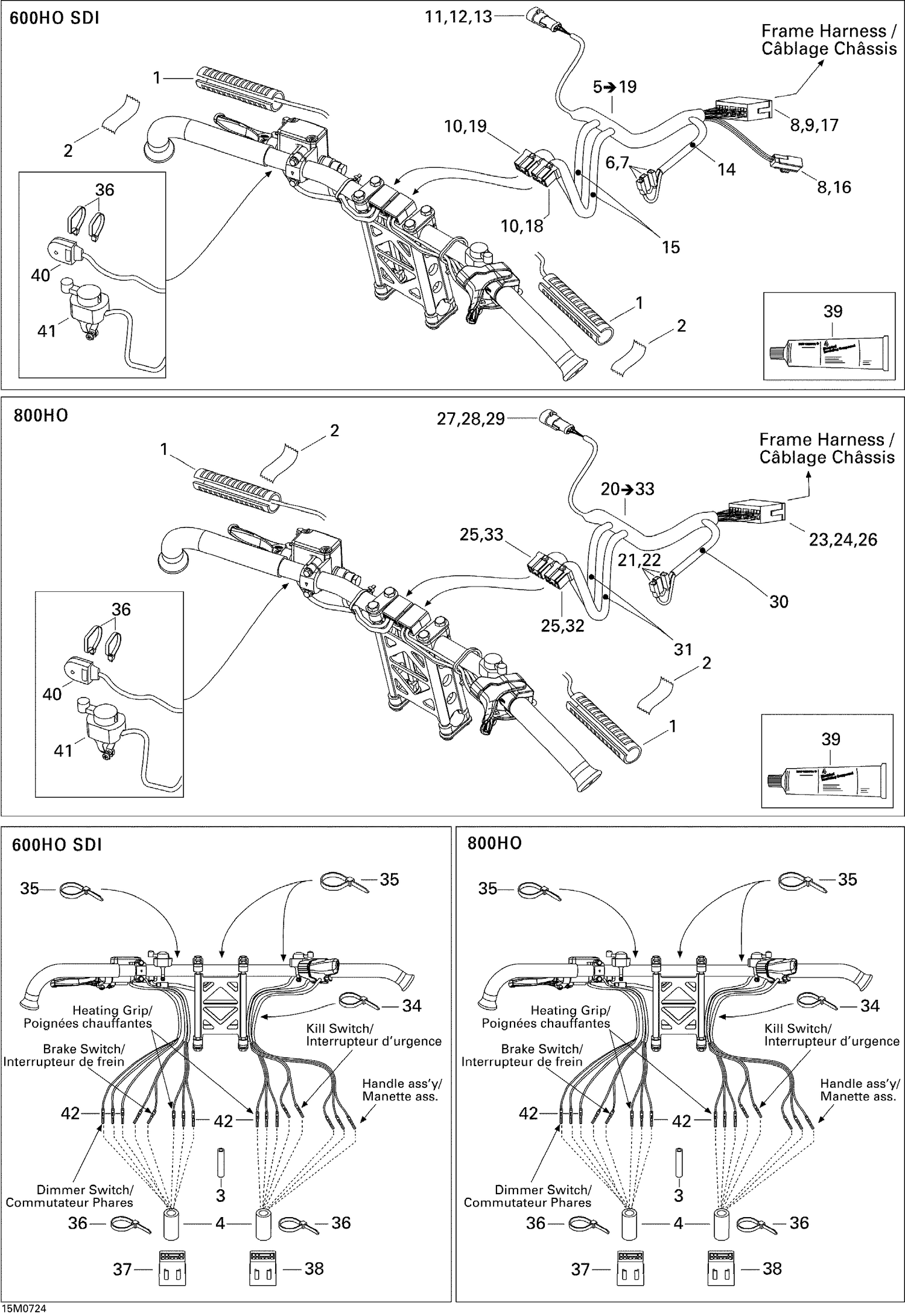

10- Steering Wiring Harness 600

10- Steering Wiring Harness 600

Parts (27)

RefPart NumberDescription
1 515176139 HEATER ELEMENT - Call your local BRP dealership
2 293740005 Tape
3 219704424 Vinyl Tubing, Low Temp 3000Mm Long
4 219704424 Vinyl Tubing, Low Temp 3000Mm Long
20 XXX Not Available As Spare Parts
21 XXX Not Available As Spare Parts
22 XXX Not Available As Spare Parts
23 XXX Not Available As Spare Parts
24 XXX Not Available As Spare Parts
25 XXX Not Available As Spare Parts
26 XXX Not Available As Spare Parts
27 XXX Not Available As Spare Parts
28 XXX Not Available As Spare Parts
29 XXX Not Available As Spare Parts
30 XXX Not Available As Spare Parts
31 XXX Not Available As Spare Parts
32 XXX Not Available As Spare Parts
33 XXX Not Available As Spare Parts
34 414115200 Tie-Rap 180 mm
35 414115200 Tie-Rap 180 mm
36 293750002 Tie Wrap 142 mm
37 515175817 Male Terminal Housing, 8 Circuits
38 515175817 Male Terminal Housing, 8 Circuits
39 219704453 Was 293550004 Dielectric Grease, 150 g
40 515176269 Switch
41 515177434 DIMMER SWITCH - Call your local BRP dealership This part replaces 515175684.
42 515175232 Male Terminal
