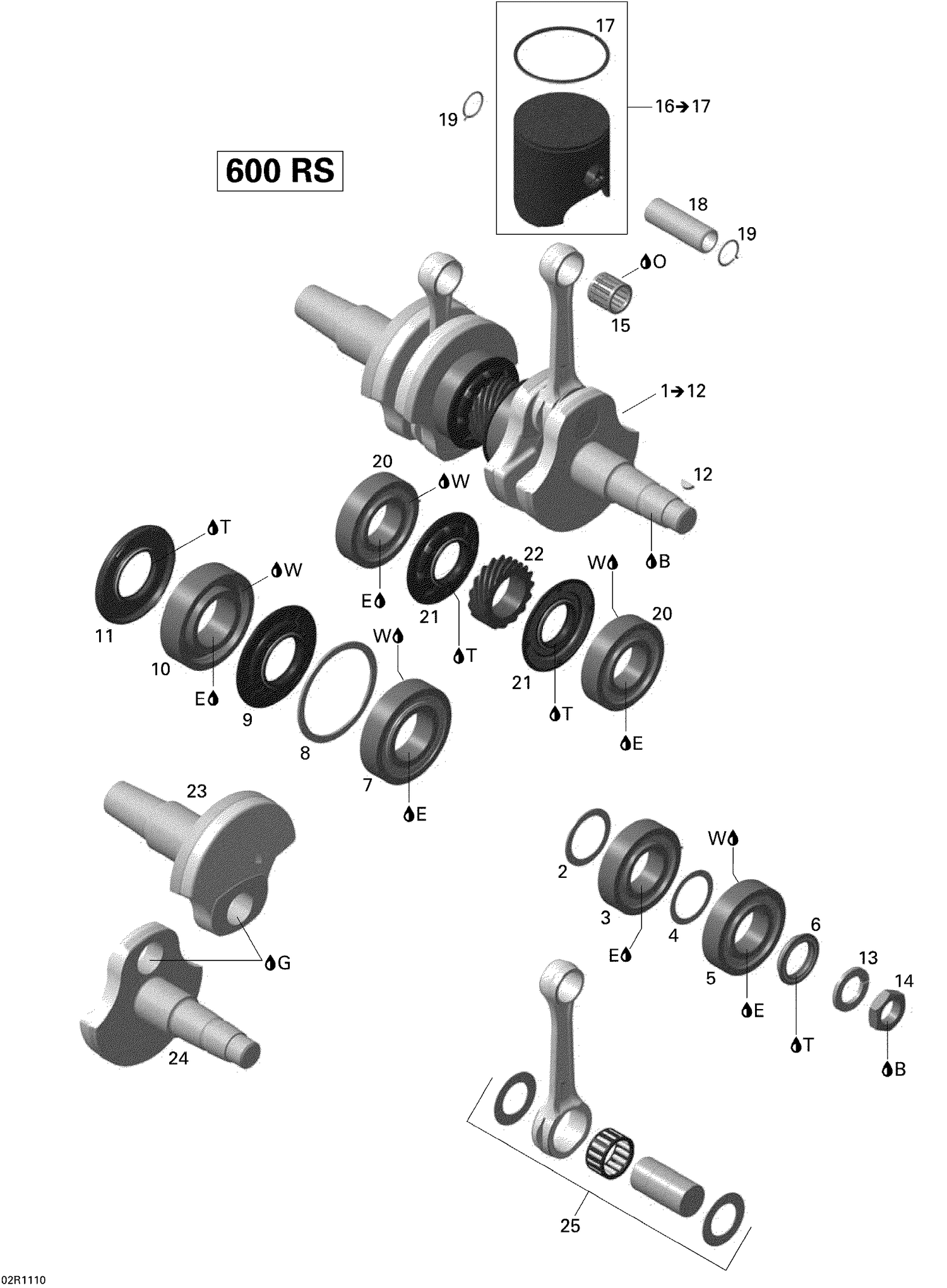

01- Crankshaft And Pistons
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10 ml |
| E | 219704461 | LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| G | 219703000 | Sealant Loctite 648 This part replaces 413711400. |
| O | Not | Available As Spare Part - Engine Oil |
| T | 420899271 | Petamo Grease, GHY133N, 400 g |
| 2 | 420827767 | Shim |
| 3 | 420832575 | Ball Bearing 6207 |
| 4 | 420427502 | ADJUSTMENT WASHER - Call your local BRP dealership |
| 5 | 420832575 | Ball Bearing 6207 |
| 6 | 420931795 | Oil Seal This part replaces 420931793. |
| 7 | 420832600 | Ball Bearing 6208 |
| 8 | 420926190 | Washer |
| 9 | 420931910 | Oil Seal |
| 10 | 420832671 | Ball Bearing This part replaces 420832603. |
| 11 | 420931284 | Oil Seal |
| 12 | 420246015 | Woodruff Key |
| 13 | 420945759 | Lock Washer, 22 mm |
| 14 | 420842239 | Hex. Nut, M22 X 1.5 |
| 15 | 420832445 | Needle Bearing |
| 17 | 420815295 | Semi-Trapez Ring |
| 18 | 420916412 | Piston Pin |
| 19 | 420845106 | Piston Circlip |
| 20 | 420832575 | Ball Bearing 6207 |
| 21 | 420931455 | Oil Seal |
| 22 | 420834355 | CENTRAL GEAR - Call your local BRP dealership |
| 23 | 420818708 | CRANKSHAFT, PTO SIDE - Call your local BRP dealership |
| 24 | 420818739 | CRANKSHAFT, MAG SIDE - Call your local BRP dealership |
| 25 | 420890958 | Rod Repair Kit, PTO Side |
| 25 | 420890959 | Rod Repair Kit, MAG Side |
