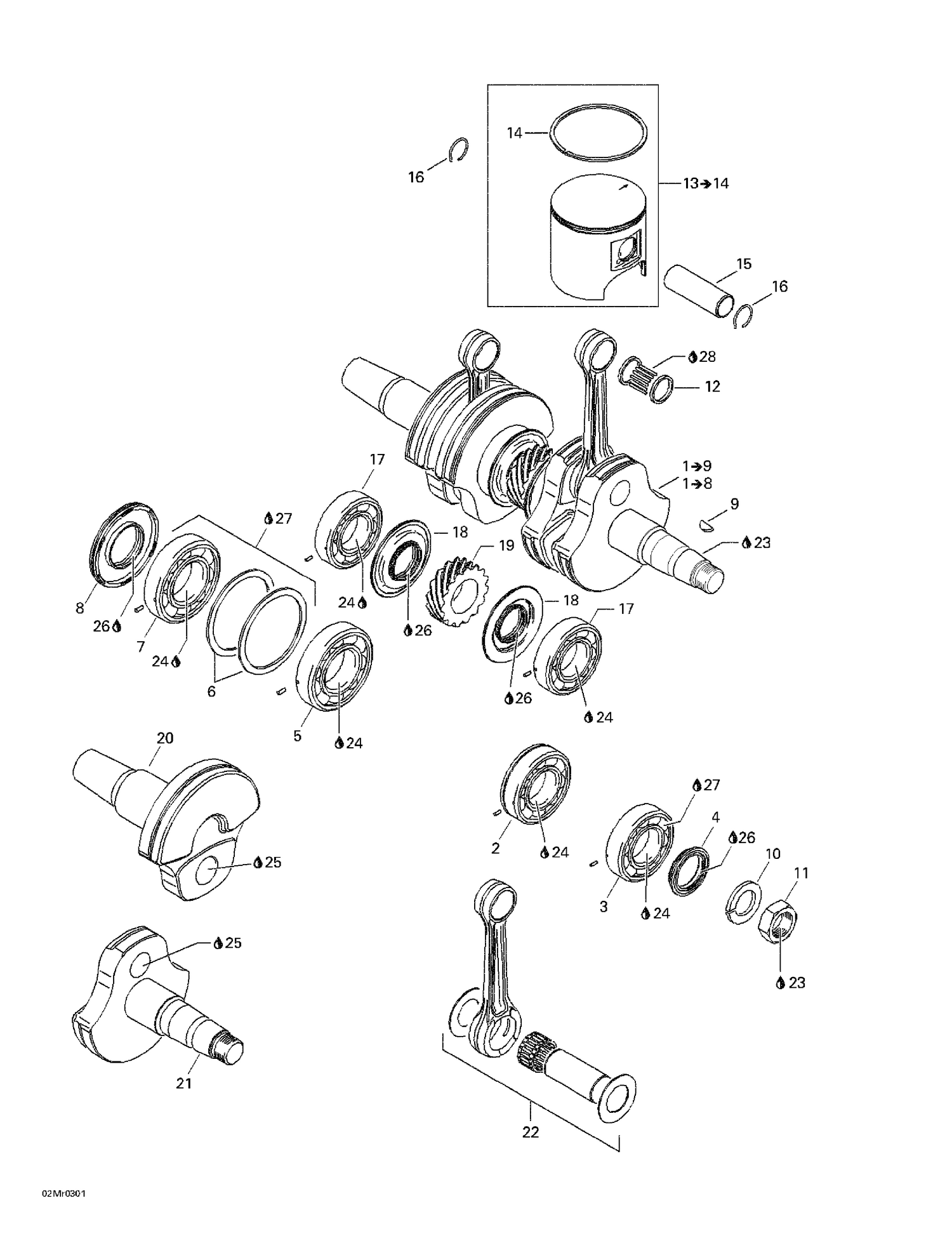

| Ref | Part Number | Description |
|---|
| 2 |
420832673 |
Ball Bearing Sealed, 6207 This part replaces 420832635. |
| 3 |
420832575 |
Ball Bearing 6207 |
| 4 |
420931795 |
Oil Seal This part replaces 420931792. |
| 5 |
420832672 |
Ball Bearing Sealed, 6208 This part replaces 420832606. |
| 6 |
420926190 |
Washer |
| 8 |
420931284 |
Oil Seal This part replaces 420931285. |
| 9 |
420246015 |
Woodruff Key |
| 10 |
420945759 |
Lock Washer, 22 mm |
| 12 |
420832445 |
Needle Bearing This part replaces 420832425. |
| 16 |
420845106 |
Piston Circlip |
| 17 |
420832575 |
Ball Bearing 6207 |
| 18 |
420931455 |
Oil Seal |
| 19 |
420834355 |
CENTRAL GEAR - Call your local BRP dealership |
| 23 |
293800060 |
Loctite 243, 10 ml |
| 24 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 25 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 26 |
420899271 |
Petamo Grease, GHY133N, 400 g |
| 27 |
293550021 |
Isoflex Grease, TOPAS NB52, 50 g |
