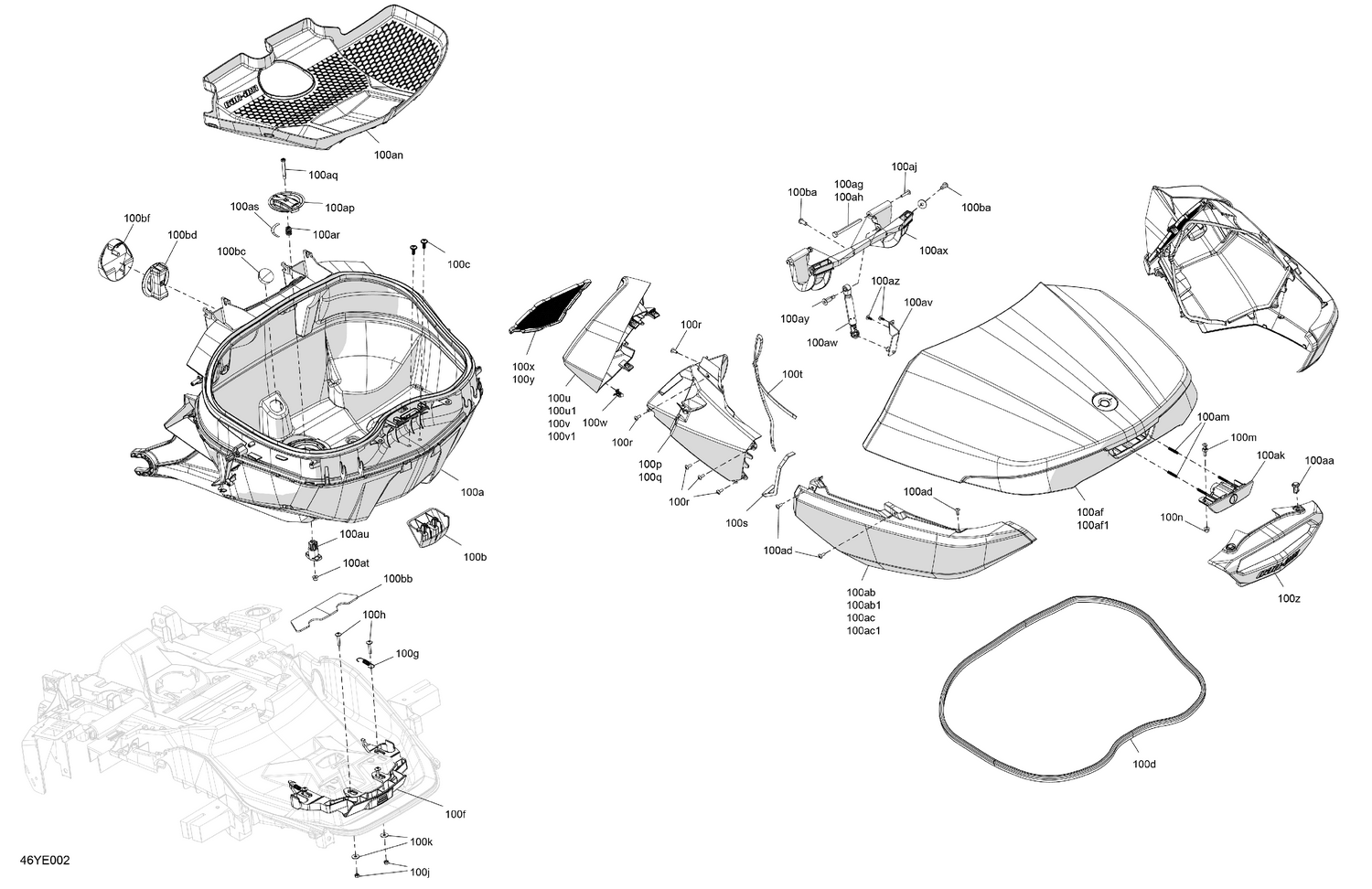

07- Body - Top Cargo Box
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 100a | 708305116 | Central Bonded Storage Box |
| 100aa | 293150230 | Tuflok Plastic Rivet |
| 100ab1 | 708303800 | Bare, LH Rear Molded Fairing |
| 100ac1 | 708303801 | Bare, RH Rear Molded Fairing |
| 100ad | 250001131 | Torx Truss PT K40 x 12 |
| 100af1 | 708303582 | Rear Box Cover |
| 100ag | 708303376 | RH Hinge Pin |
| 100ah | 708303377 | LH Hinge Pin |
| 100aj | 250000783 | Torx-Truss M/S M4 X 20 |
| 100ak | 708302100 | Trunk Control Ass'y |
| 100am | 708302198 | Spring |
| 100an | 708303064 | Inner Trunk Soft Trim |
| 100ap | 708303063 | LinQ Lock Knob |
| 100aq | 708303262 | LinQ Lock Knob Screw |
| 100ar | 708201081 | Spring |
| 100as | 704908164 | Lock Decal |
| 100at | 233251494 | Elastic Flange Nut M5 |
| 100au | 708201182 | RH Latch |
| 100av | 708303421 | Shock Reinforcement |
| 100aw | 708305055 | Air Shock Absorber |
| 100ax | 708303319 | Lid Hinge |
| 100ay | 250000714 | Flange Screw M6 X 26 |
| 100az | 250001034 | Torx-Truss Screw K40 X 10 |
| 100b | 708305115 | Rear Central Reinforcement |
| 100ba | 250000534 | Tork Screw M6 X 16 |
| 100bb | 708303982 | Foam Support |
| 100bc | 414916600 | Black, Nylon Cap |
| 100bd | 529000146 | Tool Linq |
| 100c | 250000546 | Oval Head Torx Screw K60 X 16 |
| 100d | 293250579 | Trim |
| 100f | 708303384 | Latch |
| 100g | 705601862 | Tension Spring |
| 100h | 250000762 | Torx Screw M5 X 25 |
| 100j | 232051600 | Hex. Nut M5 |
| 100k | 234052600 | Flat Washer 5 mm, Stainless |
| 100m | 518333307 | Stud |
| 100n | 233251434 | Flange Elastic Nut M5 |
| 100p | 708302113 | LH Speaker Enclosure |
| 100q | 708302114 | RH Speaker Enclosure |
| 100r | 250001131 | Torx Truss PT K40 x 12 |
| 100s | 219704373 | Seal 1000Mm Long |
| 100t | 219704373 | Seal 1000Mm Long |
| 100u1 | 708302155 | LH Rear Speaker Trim |
| 100v1 | 708302156 | RH Rear Speaker Trim |
| 100w | 517302785 | Edge Clip |
| 100x | 708302106 | LH Speaker Grille |
| 100y | 708302107 | RH Speaker Grille |
| 100z | 708302152 | Light Support |
