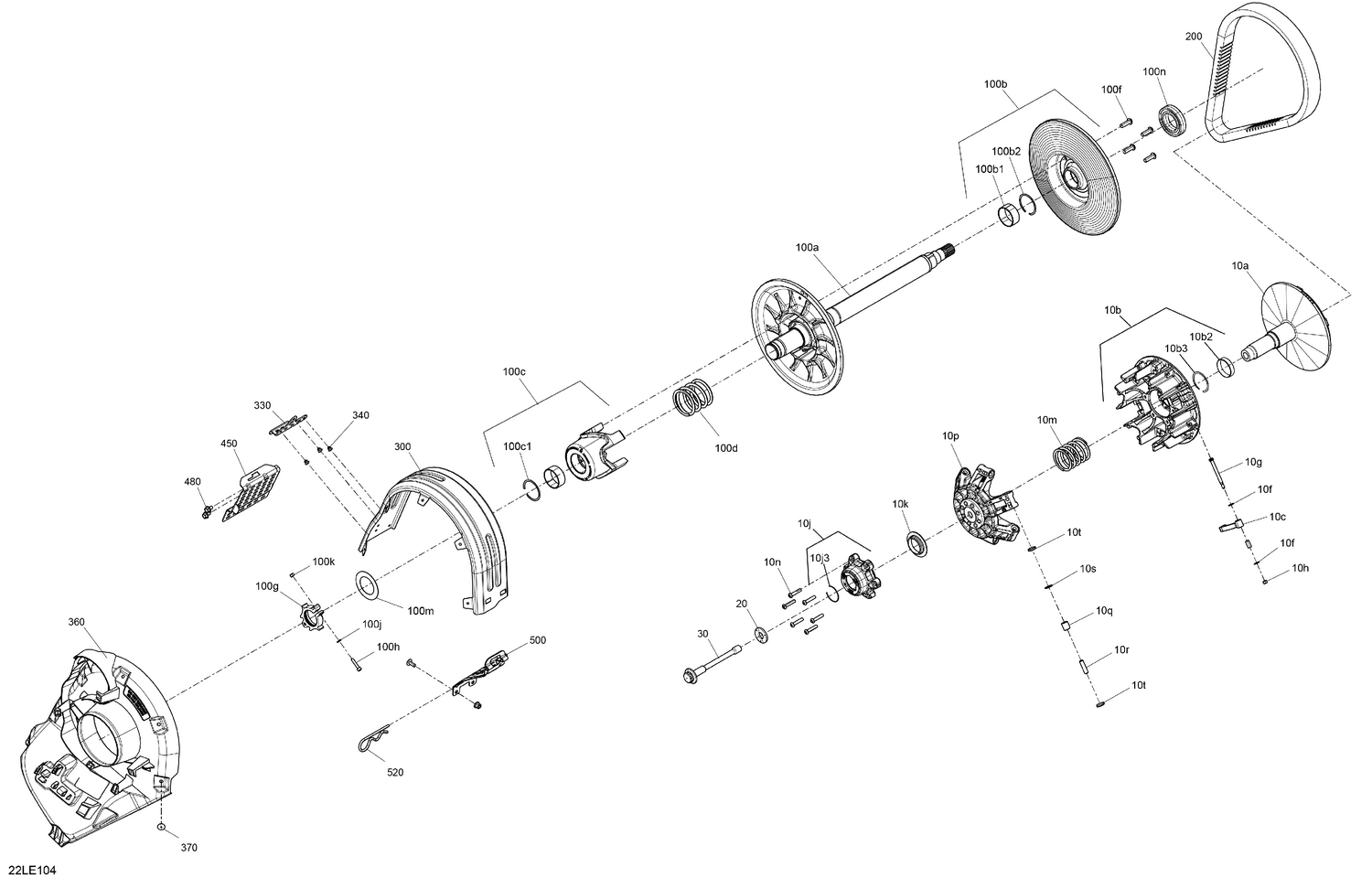

04- Drive - Pulley
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 417224091 | Fixed Flange Ass'y |
| 10b2 | 417222758 | Bushing Outer Half |
| 10b3 | 293370037 | Circlip |
| 10c | 417223508 | Ramp 716 Ass'y |
| 10f | 417223255 | Thrust Washer |
| 10g | 417223694 | Axle Ramp |
| 10h | 417224336 | Nut-Stop Elastic DIN.985 |
| 10j3 | 293370065 | Circlip |
| 10k | 417223752 | Spring Seat |
| 10m | 417223745 | Spring (Red / Red, 356-667N / 80-150lbs) |
| 10n | 250000580 | Torx Screw M6 X 30 |
| 10p | 417223865 | Governor Cup Ass'y |
| 10q | 417223767 | Roller |
| 10r | 417223257 | Roller Axle |
| 10s | 293300185 | O-Ring |
| 10t | 417223919 | Slider Shoe |
| 20 | 250200144 | Conical Spring Washer M14 |
| 30 | 417300432 | Drive Pulley Bolt |
| 100a | 417127754 | Sheave Driven Pulley Fixed Ass'y |
| 100b1 | 417127318 | Bushing ID 41mm OD 45mm X 19mm L |
| 100b2 | 293370049 | Spacer (1.91/2.21mm) |
| 100c1 | 293370049 | Spacer (1.91/2.21mm) |
| 100d | 417127467 | Spring (Red, 182-313N / 41-70lbs) |
| 100f | 250000757 | Screw-Torx Button Head M8 X 25 S.Gr |
| 100g | 415129604 | Pulley Adjuster Ass'y |
| 100h | 250000981 | Socket Screw M5 X 25 |
| 100j | 234051410 | Flat Washer M5 |
| 100k | 232551414 | Elastic Stop Nut M5 |
| 100m | 417127155 | Washer |
| 100n | 504152574 | Ball Bearing |
| 200 | 417300585 | Drive Belt |
| 300 | 417300620 | Belt Guard |
| 330 | 417300525 | Front Retaining Hook |
| 340 | 390909200 | Avex Rivet |
| 360 | 417300609 | CVT Cooling Duct |
| 370 | 293150291 | Black, Pop Rivet 3/16 X ,425 |
| 450 | 417300583 | Front Guard Support |
| 480 | 207561044 | Flange Screw M6 X 10, Scotch Grip |
| 500 | 417300633 | Rear Guard Support |
