Home / BRP / 1998 / MX Z X / MX Z X 400 LC, 1998 / 01- Cylinder, Exhaust Manifold

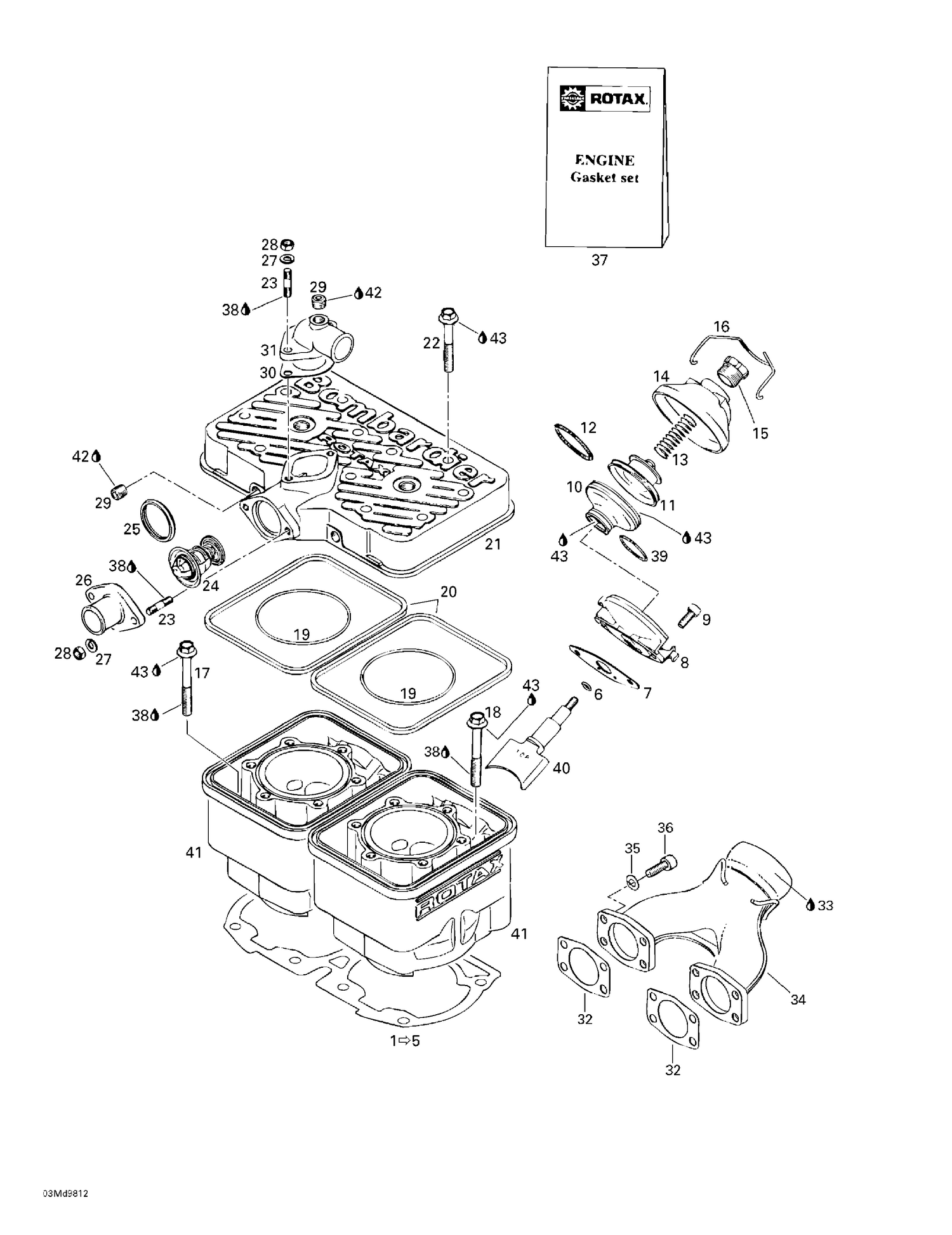

01- Cylinder, Exhaust Manifold

01- Cylinder, Exhaust Manifold

Parts (42)

RefPart NumberDescription
1 420931364 Double Gasket 0.8 mm
2 420931362 Double Gasket 0.6 mm
3 420931363 Double Gasket 0.5 mm
4 420931361 Gasket Double 0.4 mm
5 420931360 Double Gasket 0.3 mm
6 420430110 O-Ring
7 420250239 Gasket This part replaces 420250234.
8 420854265 Valve Housing
9 420241237 Socket Head Screw M6 x 16 This part replaces 420241236.
10 420260723 Exhaust Bellows This part replaces 420260728.
11 420854449 Exhaust Valve This part replaces 420253258.
12 420939281 Hose Spring This part replaces 420239040.
13 420239945 Spring
14 420911552 Valve Cover This part replaces 420911551.
15 420241221 Adjuster Screw This part replaces 420241220.
16 420838083 SPRING CLIP - Call your local BRP dealership This part replaces 420838082.
17 420841307 Hex. Collar Screw M8 X 65 This part replaces 420841306.
18 420940126 Hex. Screw M8 x 100
19 420831792 O-Ring
20 420850040 RUBBER RING - Call your local BRP dealership
21 420923183 Cylinder Head Cover (Yellow)
22 420941627 Hex. Screw M8 X 56.5 This part replaces 420941621.
23 420941160 Stud M6 x 18
24 420922519 Thermostat This part replaces 420922510.
25 420931270 SEALING RING - Call your local BRP dealership
26 420922025 BENT OUTLET SOCKET - Call your local BRP dealership
27 420945751 WASHER-LOCK DIN.128 - Call your local BRP dealership
28 232061414 Hex. Nut M6 This part replaces 228061045.
29 420240480 PLUG SCREW - Call your local BRP dealership
30 420850339 Gasket This part replaces 420850336.
31 420922062 BENT OUTLET SOCKET - Call your local BRP dealership
32 420850531 Gasket
33 293800090 Sealant, Loctite, 80 ml This part replaces 413710300.
34 420973221 Exhaust Manifold
35 234181401 Lock Washer 8 mm This part replaces 224781140.
36 205082544 Socket Head Screw M8 X 25 This part replaces 222982565.
37 420886248 Gasket Set
38 293800060 Loctite 243, 10 ml This part replaces 413703000.
39 420838255 Hose Spring This part replaces 420838253.
40 420854305 Exhaust Valve
41 420923172 Cylinder With Sleeve
42 413707100 Sealant, 100 gr
