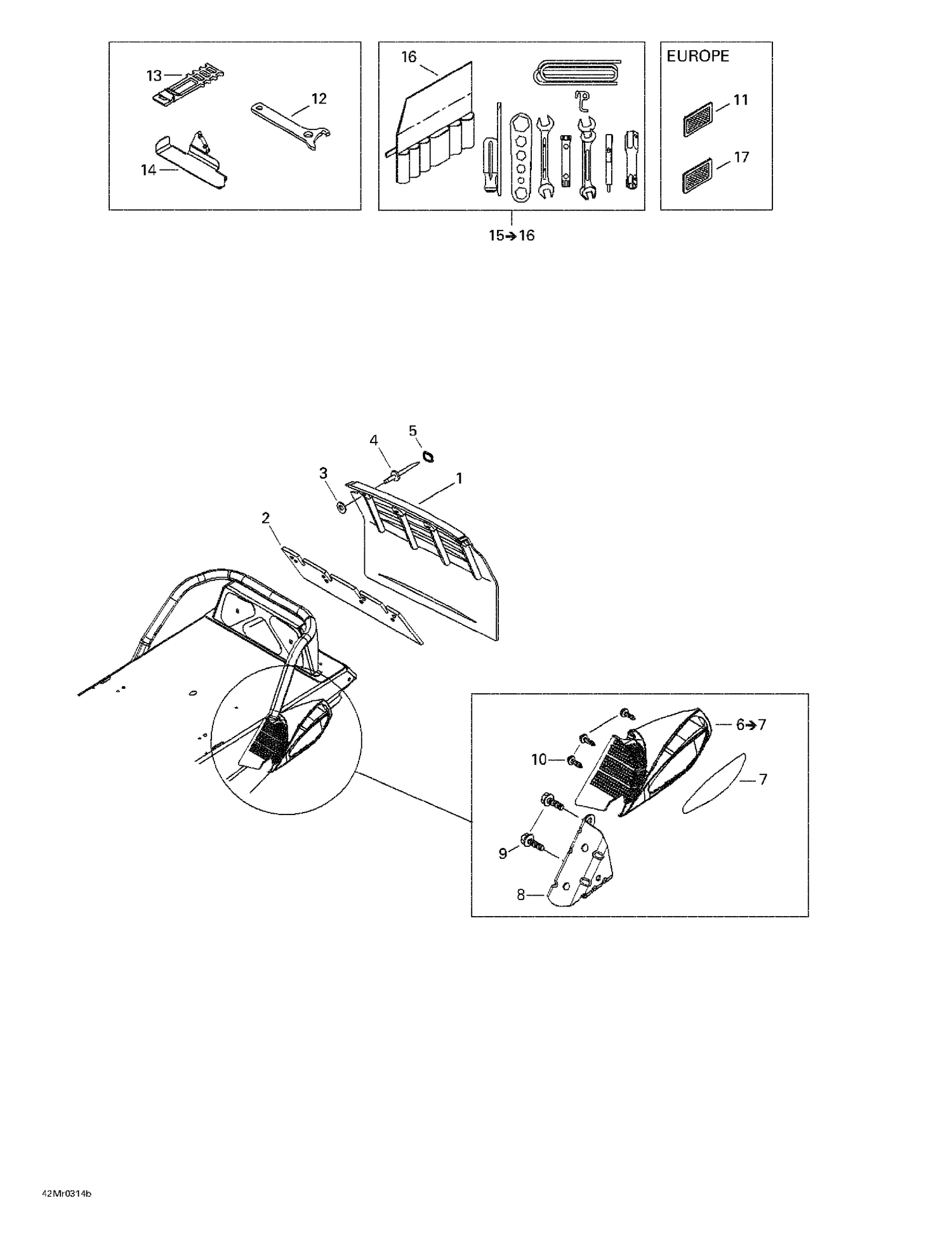

09- Snow Guard And Moulding
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 572108200 | REINFORCEMENT - Call your local BRP dealership |
| 3 | 517225900 | Flat Washer |
| 4 | 293150087 | Pop Rivet 3/16” This part replaces 293150087. |
| 5 | 415073300 | Cap |
| 8 | 520000281 | RH support |
| 9 | 207682044 | Hex. Flange Screw M8 X 20 |
| 10 | 243141630 | Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 12 | 529000035 | Adjustment Wrench This part replaces 529032900. |
| 13 | 570069700 | LATCH - Call your local BRP dealership |
| 14 | 518321999 | Tool Kit Support |
| 16 | 520000047 | Tool Bag |
| 520000282 | Attache | GA 520000282 |
| 572103803 | Snow | Guard 572103803 |
