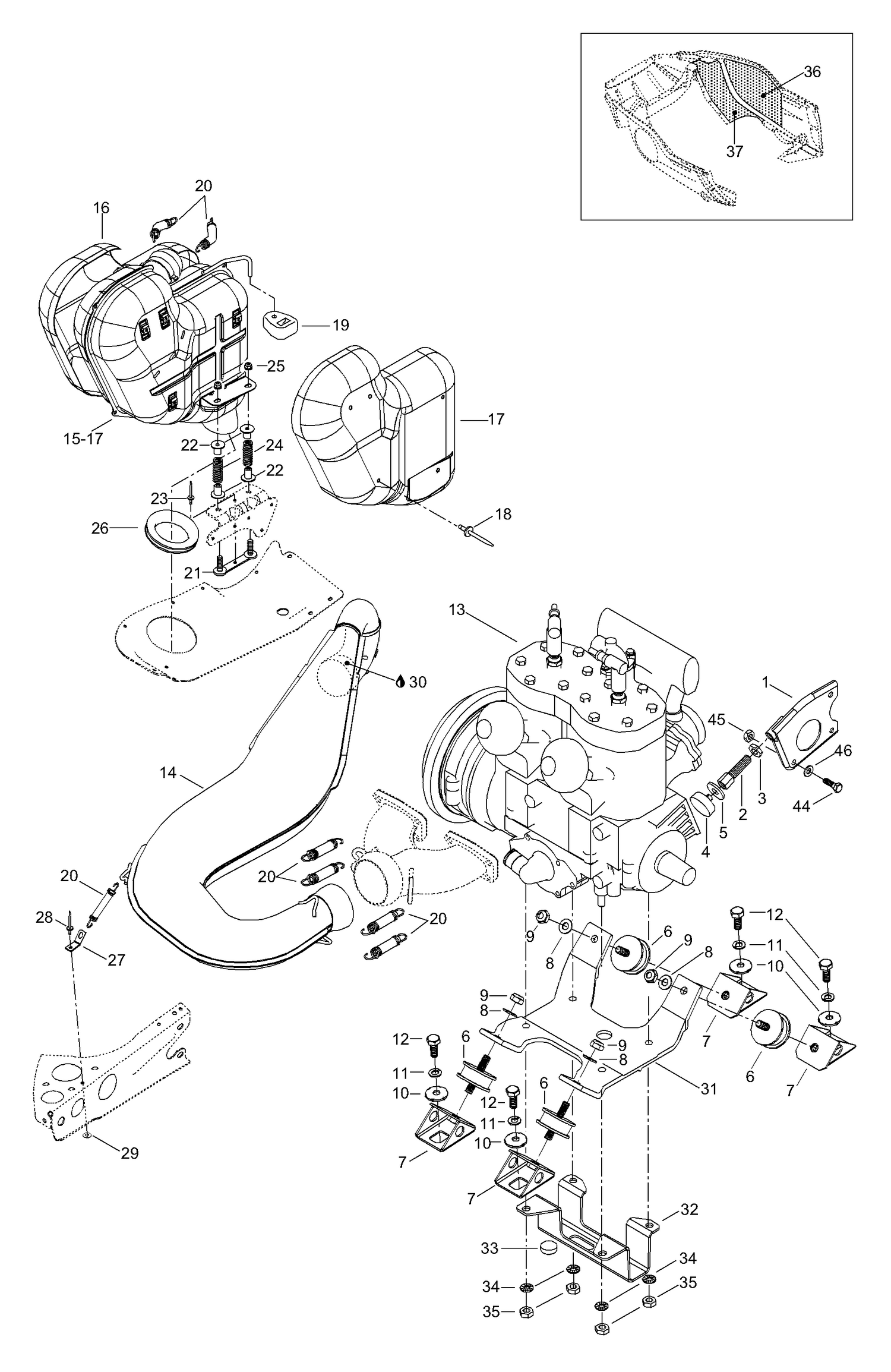

| Ref | Part Number | Description |
|---|
| 1 |
512058500 |
Support plate |
| 2 |
512058800 |
STOPPER SCREW - Call your local BRP dealership |
| 3 |
33218 |
Jam nut M12 |
| 4 |
512059056 |
Stopper |
| 5 |
20023 |
Washer |
| 6 |
570128700 |
RUBBER MOUNT - Call your local BRP dealership |
| 7 |
512050900 |
Engine support |
| 8 |
20005 |
WASHER M10 - Call your local BRP dealership |
| 9 |
33012 |
Nut elastic M10 |
| 10 |
512056700 |
Lock washer |
| 11 |
20047 |
Shim B10 DIN127 -St Zne(1=10pcs) - Call your local BRP dealership |
| 12 |
40040 |
Screw M10x25 |
| 14 |
5248296 |
Muffler |
| 16 |
514051700 |
R.H. heat shield |
| 17 |
514052960 |
L.H. heat shield |
| 18 |
390910000 |
Rivet |
| 19 |
514052704 |
RUBBER BUMPER - Call your local BRP dealership |
| 20 |
415107100 |
Spring |
| 21 |
5447628 |
Bracket |
| 22 |
5447626 |
Sleeve |
| 23 |
36083 |
Rivet |
| 24 |
25009 |
Spring |
| 25 |
33029 |
Elastic flanged nut M8 |
| 26 |
570039000 |
EXHAUST GROMMET - Call your local BRP dealership |
| 27 |
5447086 |
Spring bracket |
| 28 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 29 |
20008 |
Washer |
| 30 |
293800090 |
Loctite, 80ml This part replaces 413710300. |
| 31 |
512059173 |
Engine support |
| 32 |
5247051 |
Support engine |
| 33 |
514053654 |
Rubber Bumper This part replaces 570048700. |
| 34 |
20068 |
Lock washer |
| 35 |
232006414 |
Hex. Nut M10 This part replaces 33004. |
| 36 |
514052718 |
Isolering |
| 37 |
514053390 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 44 |
Not |
Available As Spare Part - Reduction fitting - DOES NOT APPLY TO THIS MODEL |
| 45 |
Not |
Available As Spare Part - Clamp - DOES NOT APPLY TO THIS MODEL |
