Home / BRP / 2012 / MX Z / MXZ XRS 600HOETEC, 2012 000MYCA00 000MYCB00 000MYCC00 000MYCD00 000MYCE00 000MYCF00 000MYCG00 000MYCJ00 000MYCK00 / 01- Engine 600HOETEC

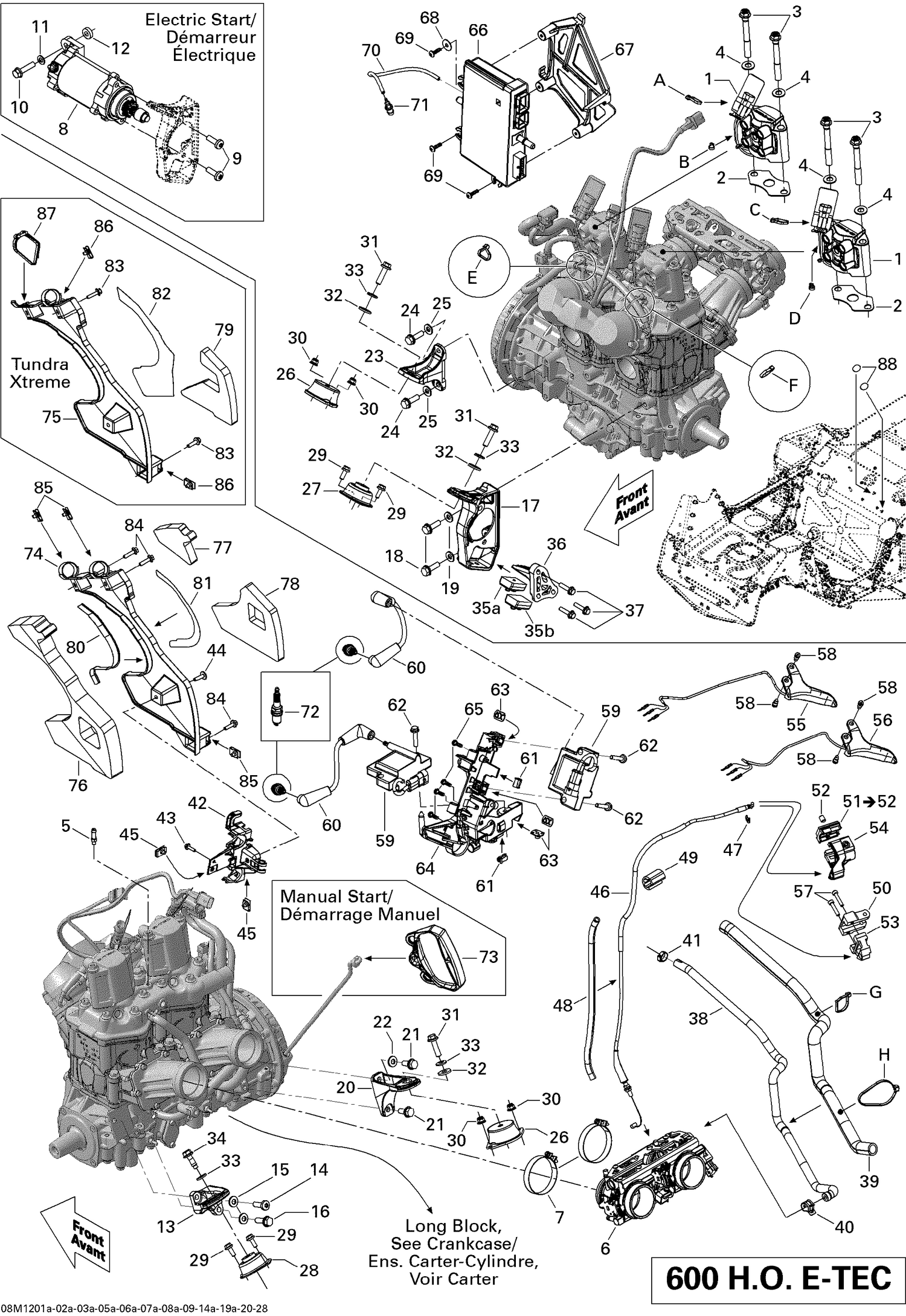

01- Engine 600HOETEC

01- Engine 600HOETEC

Parts (90)

RefPart NumberDescription
A 293750001 Tie Wrap 94 mm
B 293750001 Tie Wrap 94 mm
C 293750001 Tie Wrap 94 mm
D 293750001 Tie Wrap 94 mm
E 293750001 Tie Wrap 94 mm
F 293750001 Tie Wrap 94 mm
G 414115200 Tie-Rap 180 mm
1 512061233 Fuel Injector This part replaces 512060649.
2 420430930 Gasket
3 420441187 Torx Flange Screw M10 X 90 -SW 13/T50
4 234001410 Flat Washer 10 mm
5 420924724 Hose Nipple This part replaces 420924720.
6 420889201 Throttle Body This part replaces 420889197.
7 293650158 Gemi Clamp
13 512060478 Rear Support, PTO
14 250000752 Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
15 234281474 Conical Spring Washer M8
16 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
17 512060712 FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.
18 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
19 234281474 Conical Spring Washer M8
20 512060559 Rear Support, MAG
21 207582044 Hex. Flange Screw M8 X 20, Scotch Grip
22 234281474 Conical Spring Washer M8
23 512060469 Front Support, MAG
24 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
25 234281474 Conical Spring Washer M8
26 512060729 Rubber Mount
27 512061507 Vibration Damper This part replaces 512060387.
28 512060448 Rubber Mount
29 207561644 Hex. Flange Screw M6 X 16, Scotch Grip
30 233261414 Hex. Flange Elastic Nut M6 x 1.0
31 207683044 Hex. Flange Screw M8 X 30
32 503183200 Yellow, Washer
33 234281474 Conical Spring Washer M8
34 250000796 Hex. Flange Screw M8 X 1.25 X 25 This part replaces 250000570.
35a 512060627 Stopper
35b XXX Not Available As Spare Parts
36 512060576 Stopper Support
37 207562544 Hex. Flange Screw M6 X 25
38 512060740 Formed Hose, Output
39 219704408 Tubing 16 Mm 1000Mm Long
40 293650214 Norma Spring Clamp
41 293650046 Oetiker Clamp
42 512060298 Solenoid Support
43 207652044 Hex.Flange Screw M5 X 20
44 250000528 Torx Screw M5 X 20
45 250000958 Panel Nut M5 X 0.8 This part replaces 250000079.
46 512060624 Throttle Cable
47 414274500 Circlip
48 219704399 Was 409901700 Tubing (9 mm)
49 512060313 Protector
50 512059969 Upper Housing
51 XXX Not Available As Spare Parts
52 XXX Not Available As Spare Parts
53 512059537 Lower Housing
54 XXX Not Available As Spare Parts
55 512061252 Throttle Handle Ass'y This part replaces 512060616.
56 XXX Not Available As Spare Parts
57 205052544 Socket Screw M5 X 25
58 732601143 Flange Screw
59 512060953 Ignition Coil This part replaces 512060711.
60 512061126 Ignition Cable, 177mm long This part replaces 512060094.
61 710000992 Clip
62 250000253 Hex. Flange Screw M6 X 1.0 X 30
63 293100003 Nut Welded, M6
64 512060888 Ignition Coils Support This part replaces 512060696.
65 241151640 Hex. Flange Screw K50 X 2.24 X 16
66 512060780 Calibrated Module This part replaces 512060786.
67 512060858 Calibrated Module Support This part replaces 512060297.
68 250200040 Flat Washer
69 250000297 Truss Head Torx Screw K50 X 20
70 219704709 NEEDS DESCRIPTION This part replaces 219704409.
71 414814100 Male Connector
72 415130430 Spark Plug NGK PZFR6F This part replaces 415129432.
74 512060339 NOISE SHIELD - Call your local BRP dealership
75 XXX Not Available As Spare Parts
76 512060343 Interior Noise Foam
77 512060344 Upper Exterior Noise Foam
78 512060362 LOWER EXTERIOR NOISE FOAM - Call your local BRP dealership
79 XXX Not Available As Spare Parts
80 512060574 Heat Shield
81 512060575 Heat Shield
82 XXX Not Available As Spare Parts
83 XXX Not Available As Spare Parts
84 250000528 Torx Screw M5 X 20
85 250000958 Panel Nut M5 X 0.8 This part replaces 250000079.
86 XXX Not Available As Spare Parts
87 XXX Not Available As Spare Parts
88 518325560 Adhesive Patch
