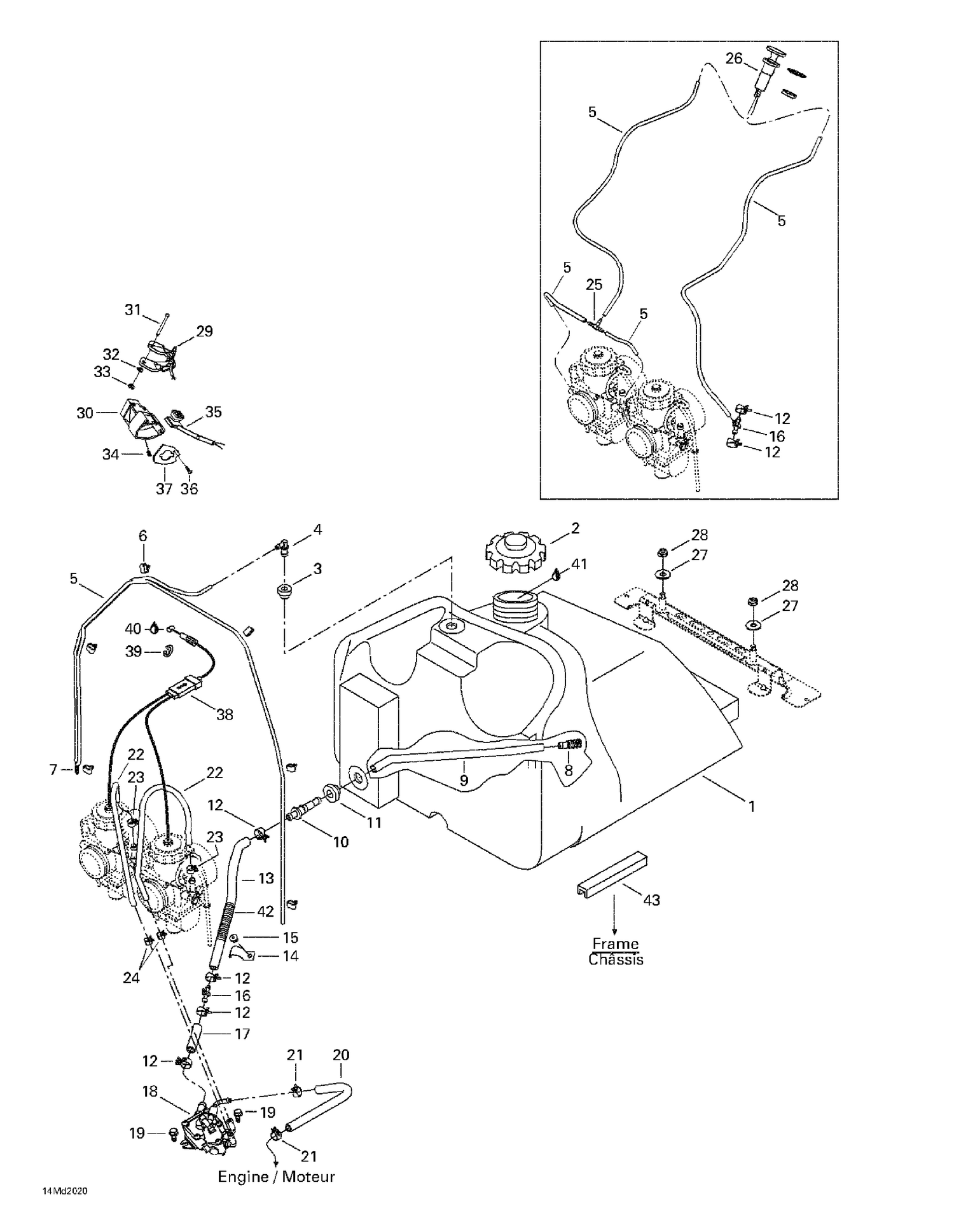

02- Fuel System
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513032989 | Fuel Tank |
| 2 | 513032966 | Fuel Tank Cap |
| 3 | 513032908 | Grommet |
| 4 | 414814100 | Male Connector |
| 5 | 219704709 | NEEDS DESCRIPTION This part replaces 219704409. |
| 6 | 513032923 | TUBE CLAMP - Call your local BRP dealership |
| 7 | 414818200 | SPRING - Call your local BRP dealership |
| 8 | 414872100 | Fuel Filter Strainer |
| 9 | 415005700 | Hose |
| 10 | 414872700 | Male Connector |
| 11 | 707800347 | Grommet This part replaces 570273900. |
| 12 | 513032979 | UNIVERSAL SPRING CLAMP - Call your local BRP dealership |
| 13 | 513032956 | Formed Hose |
| 14 | 415018200 | CLIP - Call your local BRP dealership |
| 15 | 390406500 | Pop Rivet 3/16" |
| 16 | 415119300 | T-Fitting |
| 17 | 513032957 | Formed Hose |
| 18 | 403901805 | Fuel pump |
| 19 | 732601120 | Hex. Screw M6 x 12 |
| 20 | 219704549 | Hose This part replaces 219704439. |
| 21 | 414415200 | Spring Clamp |
| 22 | 219704410 | Polyurethane Hose 10000Mm Long |
| 23 | 414554800 | Spring Clamp |
| 24 | 414420700 | Spring Clamp |
| 25 | 414222400 | T-Fitting |
| 26 | 415060500 | Primer |
| 27 | 234082410 | Flat Washer 8 mm |
| 28 | 232581414 | Hex. Elastic Stop Nut M8 |
| 29 | 512060214 | Handle Ass'y This part replaces 512059152. |
| 30 | 512060603 | Throttle Housing This part replaces 572086700. |
| 31 | 414438700 | Lever Pin |
| 32 | 234051600 | Flat Washer M5, Stainless This part replaces 414438900. |
| 33 | 414439000 | Circlip |
| 34 | 414440800 | Socket Set Screw M8 X 10 |
| 35 | 515175410 | Kill Switch |
| 36 | 414473200 | Screw |
| 37 | 512060390 | Plate This part replaces 572099400. |
| 38 | 512058901 | Throttle Cable |
| 39 | 414274500 | Circlip |
| 40 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 41 | 293600120 | OIL PRE-MIX 12 X 500ML - Call your local BRP dealership This part replaces 413803100. |
| 42 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 779120 | 2T | Snowmobile Premium Mineral Oil This part replaces 413803000. 779120 |
