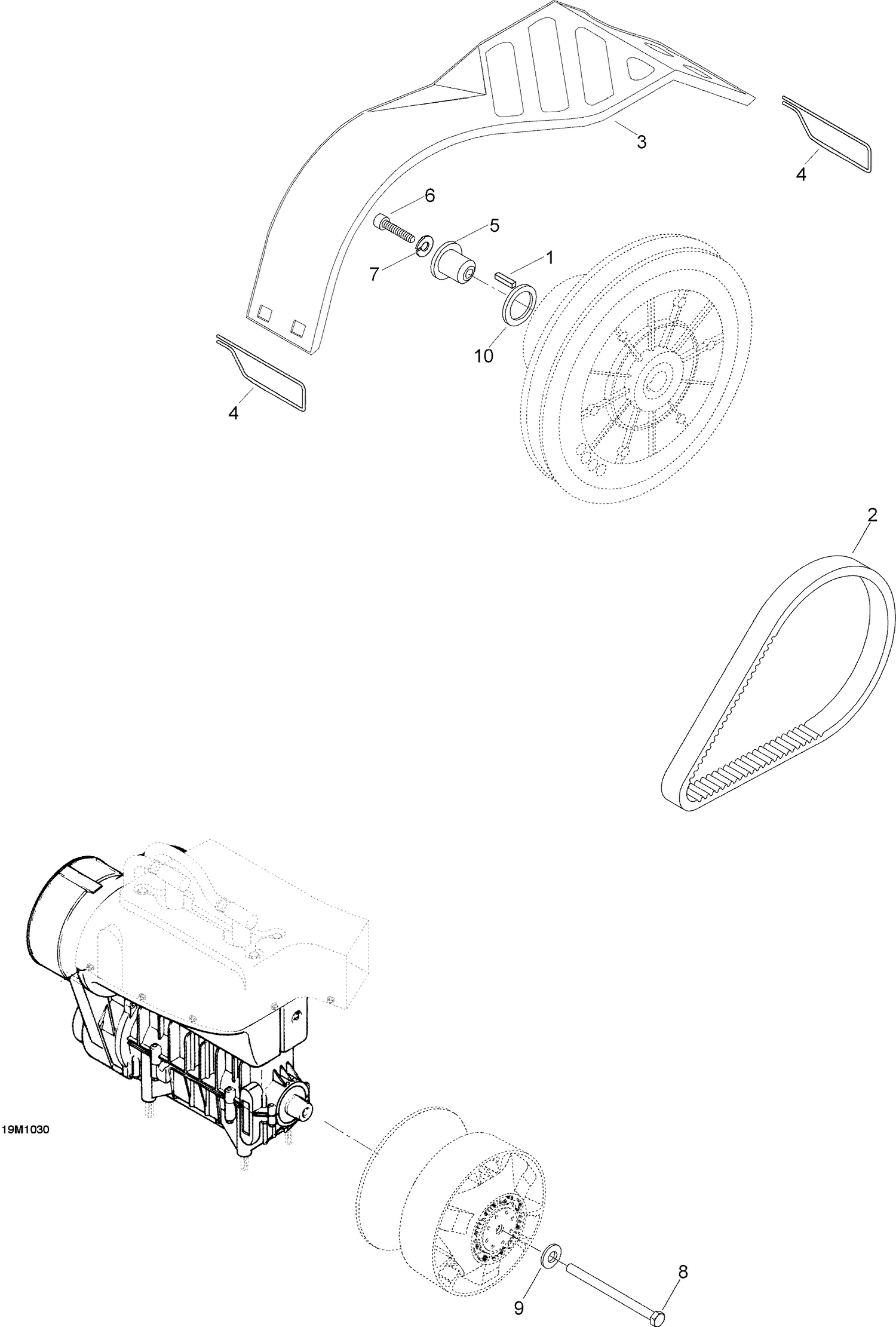

05- Pulley System
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 619690074 | KEY - Call your local BRP dealership This part replaces M418763. |
| 2 | 605348425 | Drive Belt |
| 3 | 605149860 | BELT GUARD - Call your local BRP dealership |
| 4 | 5442726 | Pin This part replaces M5442726. |
| 5 | 5443201 | Sleeve This part replaces M5443201. |
| 6 | M40286 | Socket Head Screw M8 X 45 |
| 7 | 234181401 | Lock Washer 8 mm |
| 8 | 417113800 | BOLT - Call your local BRP dealership |
| 9 | 250200005 | Conical Spring Washer M12 |
